G3520C

Gas Generator Sets

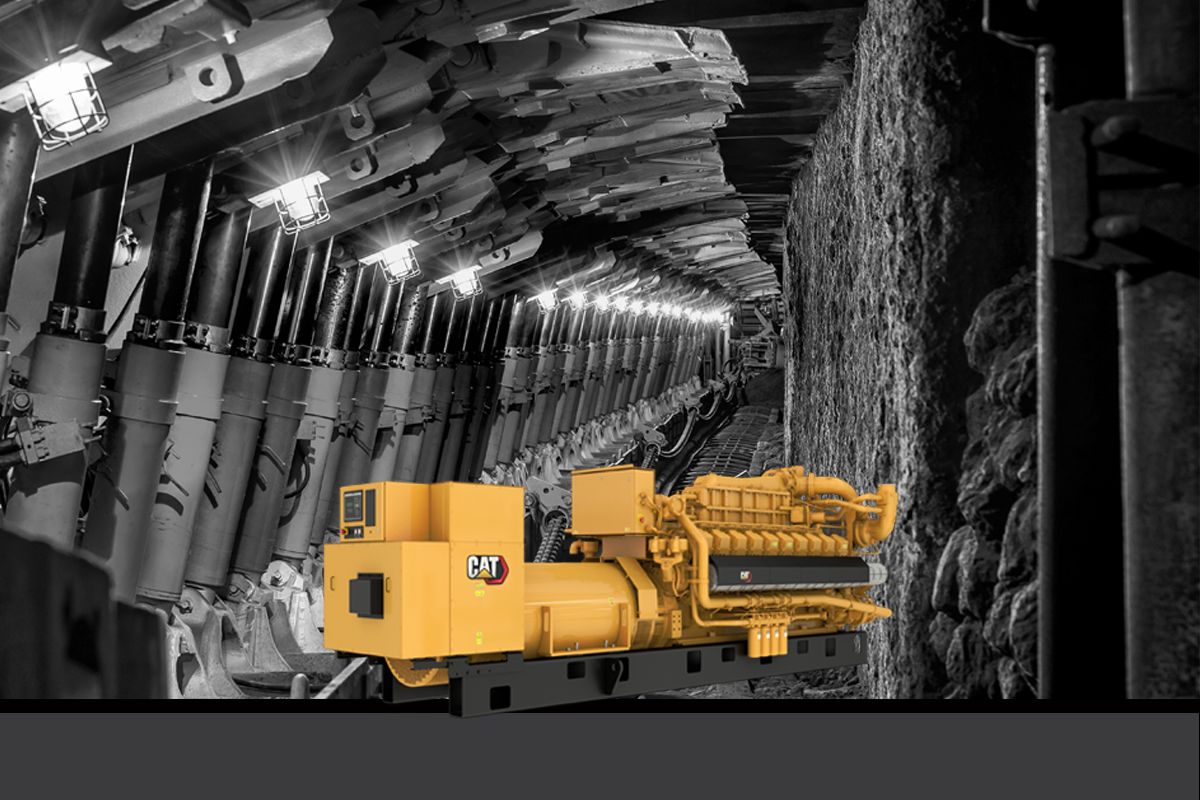

G3520C Gas Generator

Show
Continuous Rating 2050 ekW
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 40.10%
Maximum Standby Rating 2050
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3520C
Request A Quote

OVERVIEW

1457 - 2082 kW Gas Generator

FEATURES & BENEFITS

Cat G3520C Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gasSimple open c... Read more

SR4B or SR5 Generator

Designed to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Read more

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

Sistem Kontrol Elektronik Cat

Read more

SPECIFICATIONS FOR G3520C

Collapse All
Generator Set Specifications
Continuous Rating 2050 ekW
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 40.10%
Maximum Standby Rating 2050
Frequency 50 / 60 Hz
RPM 1200 / 1500 / 1800 rpm
Engine Specifications
Engine Model G3520C
Displacement 86 l
Aspiration TA
Bore 170 mm
Stroke 190 mm
Fuel System Natural Gas, Biogas, Coal Gas
Compression Ratio 11.3
Generator Set Dimensions
Length 6312 mm
Width 1830 mm
Height 2340 mm
Dry Weight - Genset 17215 kg
Weight 17215 kg
