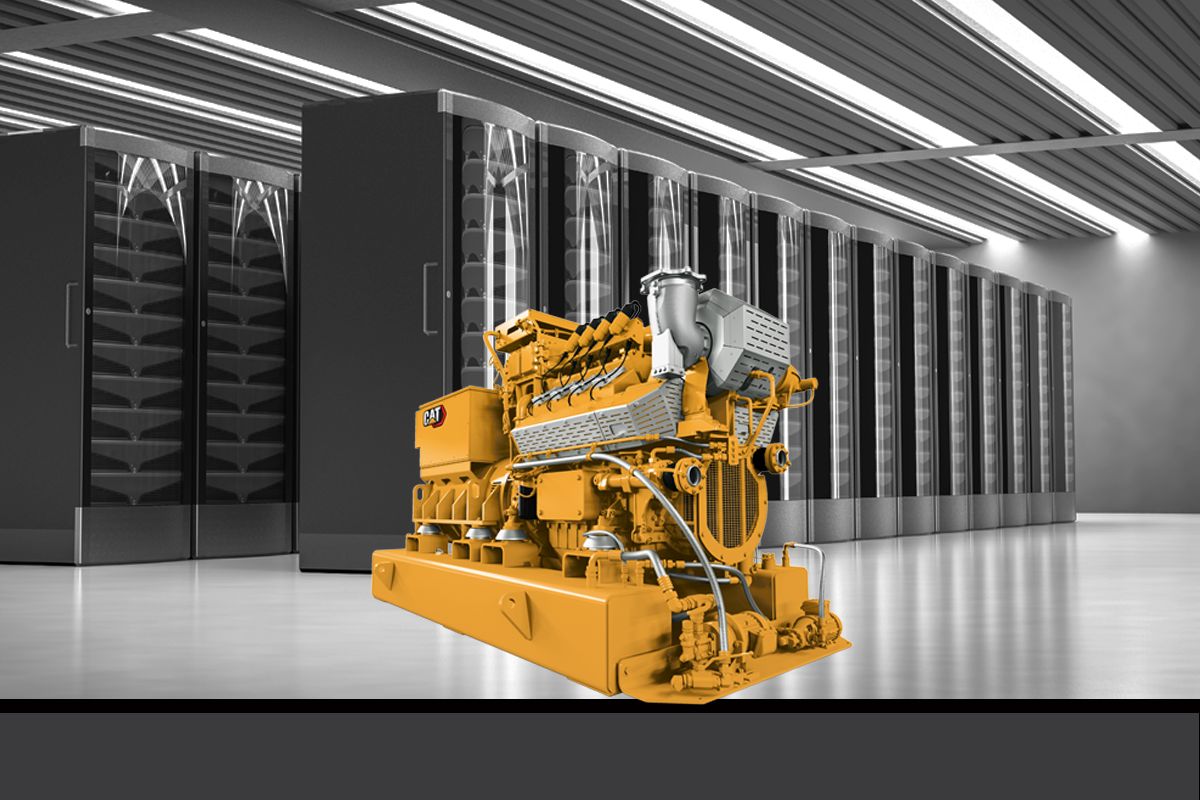

CG132B-8

Gas Generator Sets

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br><br>Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.

Show
Continuous Rating 400 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 43.1% / 42.1%
Frequency 50 / 60 Hz
Availability Contact Dealer
Request A Quote Download Brochure
CG132B-8
Request A Quote

OVERVIEW

CG132B-8 400 KW

FEATURES & BENEFITS

High Efficiency, Lower Operating Costs

High Efficiency, Lower Operating CostsHighest efficiency in its output classUp to 42.5% improved electrical efficiencyReduced vibration and stress on components Read more

Low installation, Building and Operating Costs

Low installation, Building and Operating CostsCompact design with integrated fuel tanks for daily refillingLower setup costs than comparable enginesReduced investment cos... Read more

Optimized Lubrication Consumption

Optimized Lubrication ConsumptionConsumes less than 0.1g/kW of oilUp to 66% lower lubricant consumption than comparable modelsLonger lubricant change (up to 4,000 hours)... Read more

SPECIFICATIONS FOR CG132B-8

Collapse All
Generator Set Specifications
Continuous Rating 400 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 43.1% / 42.1%
Frequency 50 / 60 Hz
RPM 1500 or 1800 rpm
Engine Specifications
Engine Model CG132-8
Displacement 17.5 l
Aspiration TA
Bore 132 mm
Stroke 160 mm
Generator Set Dimensions
Length 3100 mm
Width 1780 mm
Height 2150 mm
Dry Weight - Genset 5720 kg
