CHP2500

Gas Generator Sets

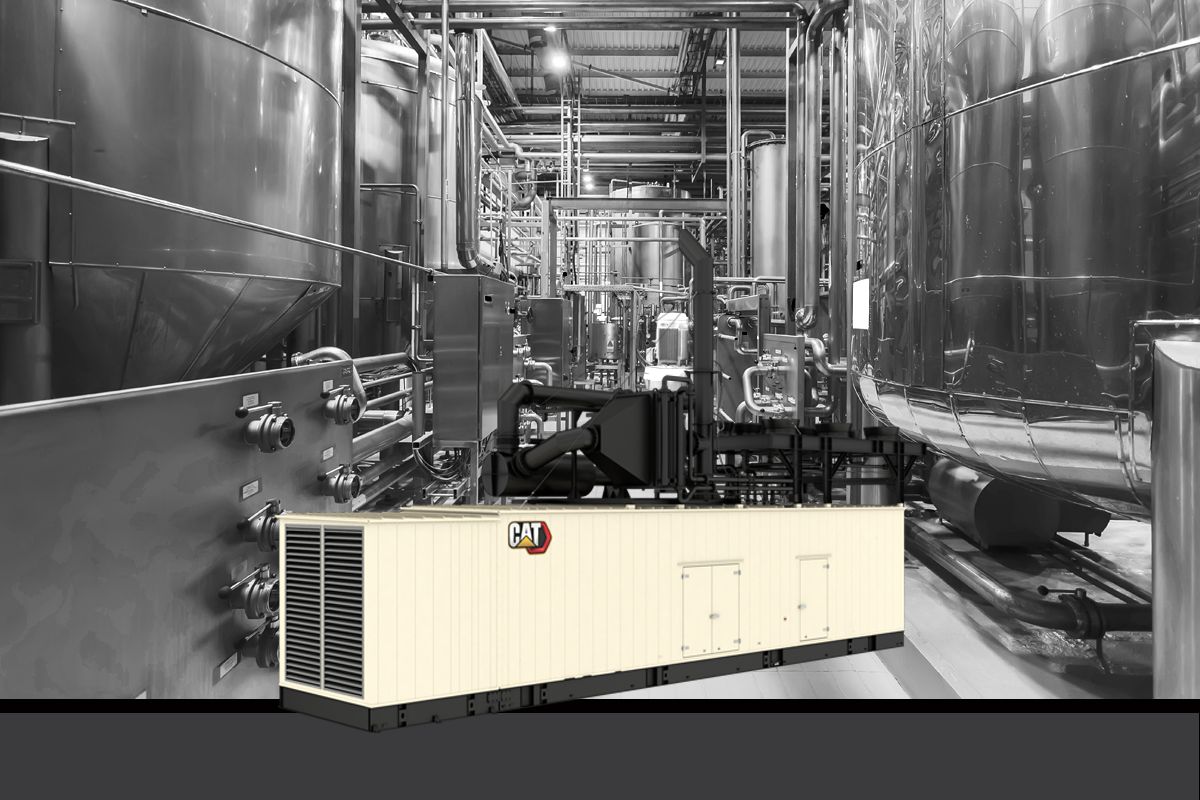

G3520H Combined Heat and Power (CHP) Solution Gas Generator

Show
Continuous Rating 2480 ekW @ 1.0pf
Fuel Type Natural Gas
Maximum Electrical Efficiency 42.40%
Frequency 60 Hz
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
CHP2500
Request A Quote

OVERVIEW

1763 - 2519 kW Gas Generator

FEATURES & BENEFITS

Cat® G3520H Humidity Fuel Tolerant Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gasSimple open c... Read more

CHP Ready

Extensive range of rental ready features to meet job requirements and applications. Read more

Single-Source Supplier

Generator set manufactured in ISO 9001:2000 compliant facility.Package factory designed and production tested. Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cat Generator

Cat SR5 generator designed to match the performance and output characteristics of the Cat Gas engine.Class H insulation operating at Class F temperature rise for extended... Read more

Fuel/Emissions Strategy

Meets most worldwide emissions requirements down to 500 mg/Nm3 NOx level without after treatment.Optional: Oxidation catalyst available Read more

Sound Attenuated Container

Meets 75 dB(A) at 7 meters. Weather Proof enclosure, NSPS factory compliant, UL2200 compliant, and CSA/TSSA. Service and Personnel doors. Separate electrical control room... Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Reduced Environmental Impact

110% spill containment of onboard engine fluids.Positive crankcase fumes ventilation. Read more

SPECIFICATIONS FOR CHP2500

Collapse All
Generator Set Specifications
Continuous Rating 2480 ekW @ 1.0pf
Fuel Type Natural Gas
Maximum Electrical Efficiency 42.40%
Frequency 60 Hz
RPM 1500
Frequency 60 Hz
Engine Specifications
Engine Model G3520H
Displacement 97.5 l
Aspiration TA
Bore 170 mm
Stroke 215 mm
Fuel System Electronic Fuel Control Valve
Governor Type ADEM™ A4
Compression Ratio 11.1
Generator Set Dimensions
Length 7668 mm
Width 2173 mm
Height 2473 mm
Dry Weight - Genset 25285 kg
Weight 76200 kg
