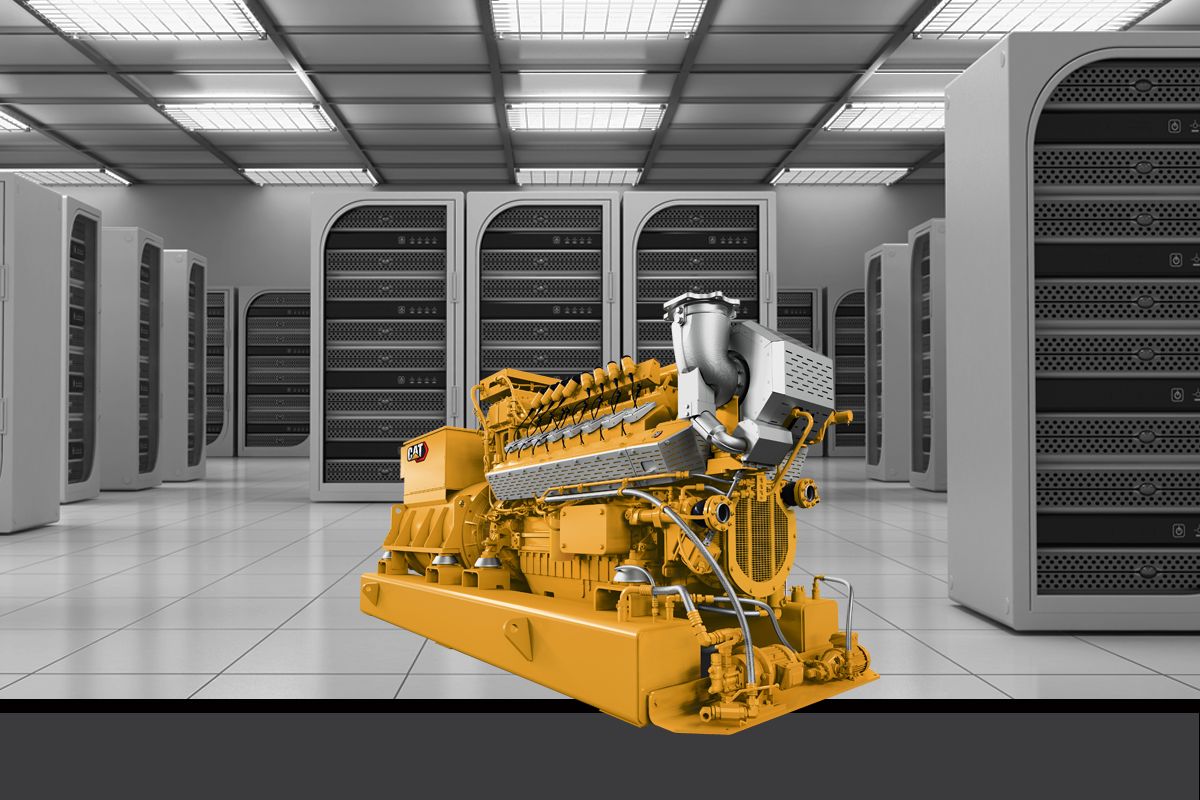

CG132B-16

Gas Generator Sets

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br><br>Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 1000kW and comes with the Total Plant and Energy Management (TPEM) system.

Show

Continuous Rating 1000 ekW @1.0pf

Fuel Type Natural Gas, Hydrogen Blend (up to 25%)

Maximum Electrical Efficiency 41.50%

Frequency 50 Hz

Availability

Contact Dealer

Request A Quote Rent a Machine

Download Brochure

CG132B-16

Request A Quote

OVERVIEW

700-1000kW Gas Generator

2000 hingga 3000 ekW, 2500 hingga 3750 kVa
50 Hz 1500 rpm, atau 60 Hz 1800 rpm
380 hingga 13.800 Volt
Untuk aplikasi Siaga, Utama, dan Kontinu

FEATURES & BENEFITS

Lower Operating Costs

Lower Operating CostsOptimized engine components mean the CG132 uses up to 50% less lubricating oil than competing generator sets, which means more money stays in your co... Read more

Smaller footprint

Smaller footprintThe CG132 uses nearly 50% less space than similar systemLess space means lower installation costs Read more

Cat Total Electronic Management System

Cat Total Electronic Management SystemTemperature and pressure monitoring for each cylinderAnti-knock control allow for maximum power output and the best possible fuel ut... Read more

Flexible Fuel Usage

Flexible Fuel UsageOur gas-mixer technology and Total Electronic Management System let you use a wide variety of gases, including problematic gases like digester, landfil... Read more

SPECIFICATIONS FOR CG132B-16

Collapse All

Generator Set Specifications

Continuous Rating	1000 ekW @1.0pf
Fuel Type	Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency	41.50%
Frequency	50 Hz
RPM	1500 rpm
Natural Gas Rating	1000

Engine Specifications

Engine Model	CG132B
Displacement	35 l
Aspiration	TA
Bore	132 mm
Stroke	160 mm

Generator Set Dimensions

Length	4200 mm
Width	1780 mm
Height	2150 mm
Dry Weight - Genset	8070 kg

Spesifikasi Genset

Peringkat Siaga Maksimum
