CG260-12

Gas Generator Sets

Show
Continuous Rating 3333 / 3000 ekW @1.0pf
Fuel Type Natural Gas, Coal Gas, Hydrogen Blend (up to 10%)
Maximum Electrical Efficiency 43.90%
Frequency 50Hz / 60 Hz
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
CG260-12
Request A Quote

OVERVIEW

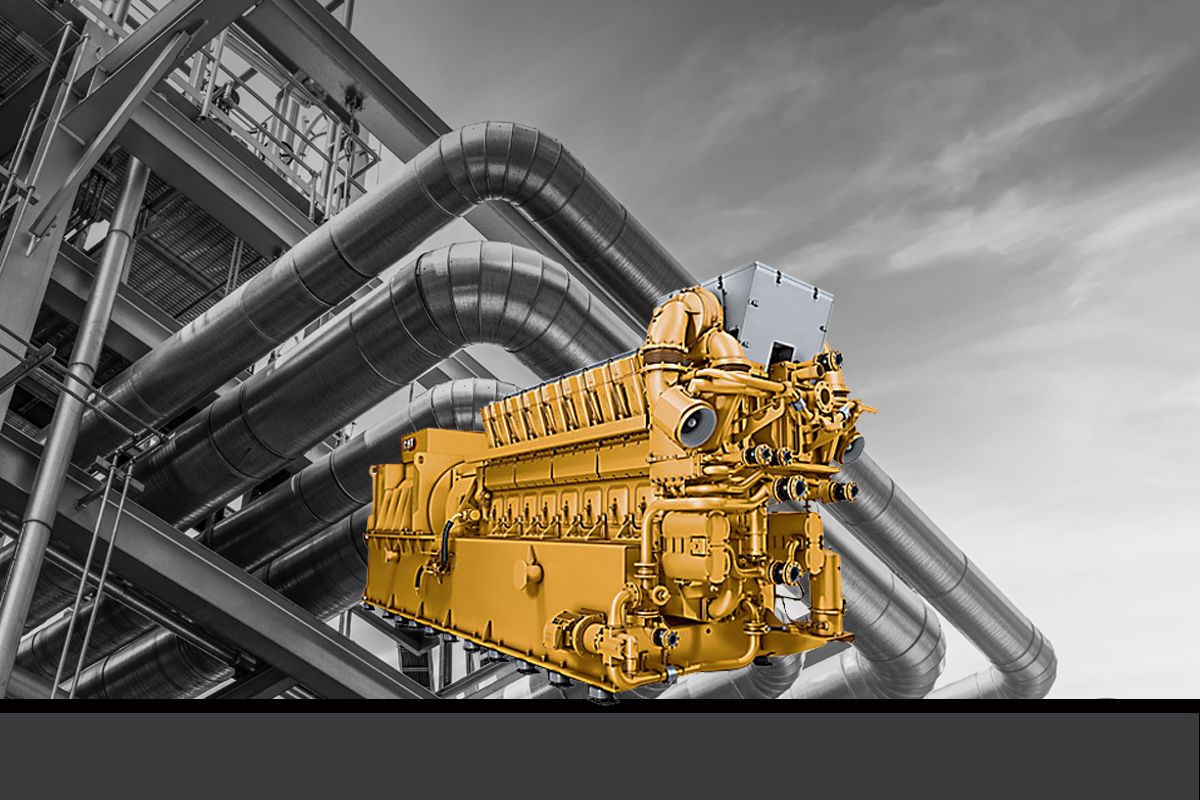

3000 KW Gas & Coal Generator Set

FEATURES & BENEFITS

High Reliability

Anti-knock control and cylinder balancing protect the engine from overload and ensure reliable operationState-of-the-art turbocharger A140 with Wastegate ensures full per... Read more

High Availability, High Profitability

Miller valve timing and optimized compression ratios ensure high efficiency and low fuels costsMore profit for your plantLong maintenance intervals and general overhaul o... Read more

Optimized Lubrication Consumption

Savings of up to 4,000 liters of lube oil per year compared to comparable gensetsImproved components reduce lube oil consumptionLower operating costs due to 30% lower lub... Read more

SPECIFICATIONS FOR CG260-12

Collapse All
Generator Set Specifications
Continuous Rating 3333 / 3000 ekW @1.0pf
Fuel Type Natural Gas, Coal Gas, Hydrogen Blend (up to 10%)
Maximum Electrical Efficiency 43.90%
Frequency 50Hz / 60 Hz
RPM 1000 / 900 rpm
Engine Specifications
Engine Model CG260-12
Displacement 203.9 l
Aspiration TA
Bore 260 mm
Stroke 320 mm
Generator Set Dimensions
Length 8000 mm
Width 2660 mm
Height 2794 mm
Dry Weight - Genset 40649.6 kg
Spesifikasi Genset
Peringkat Siaga Maksimum
