G3516B

Gas Generator Sets

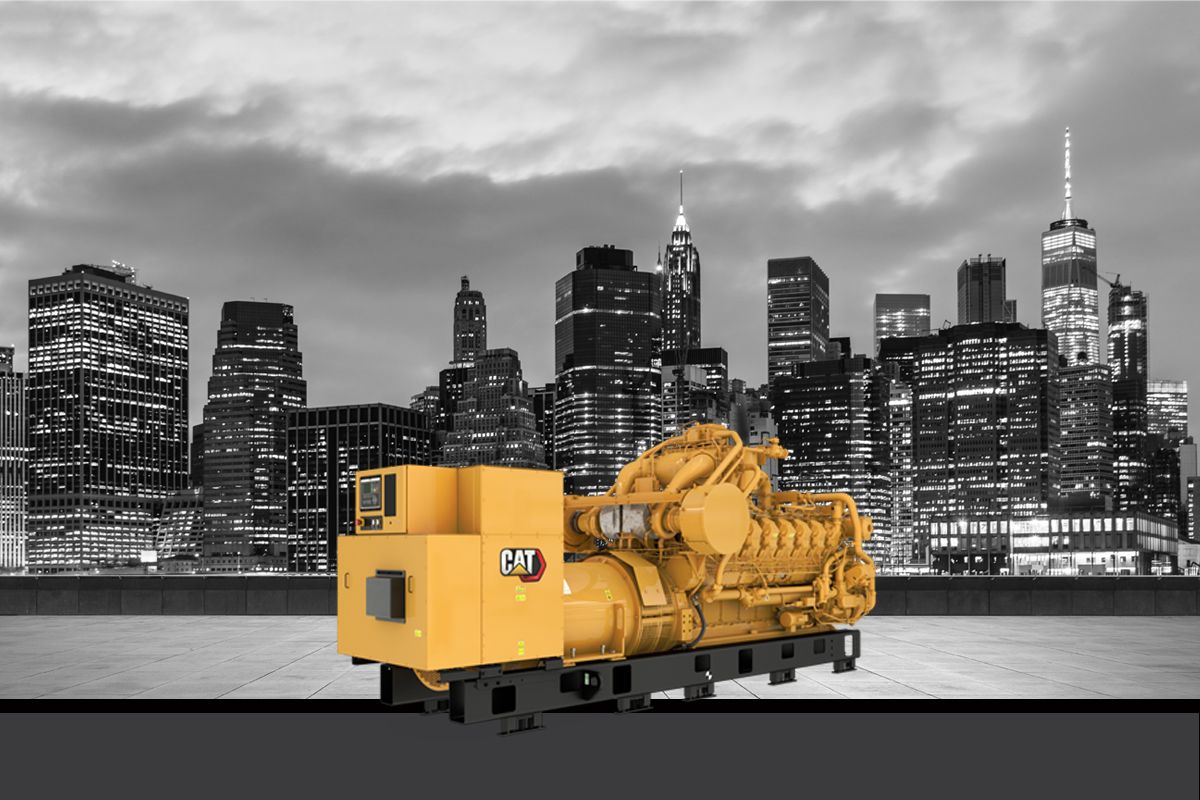

G3516B Generator Set

Show
Continuous Rating 1300 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 35.70%
Maximum Standby Rating 1300 kW
Availability Contact Dealer
Request A Quote Download Brochure
G3516B
Request A Quote

OVERVIEW

910 - 1300 kW Natural Gas Generator

  • 2000 hingga 3000 ekW, 2500 hingga 3750 kVa
  • 50 Hz 1500 rpm, atau 60 Hz 1800 rpm
  • 380 hingga 13.800 Volt
  • Untuk aplikasi Siaga, Utama, dan Kontinu

FEATURES & BENEFITS

Cat G3516B Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gasSimple open c... Read more

SR5 Generator

Designed to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cat Electronic Control System

Simple user friendly interface and navigationDigital monitoring, metering and protection settingFully-featured power metering and protective relayingRemote control and mo... Read more

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

World Wide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR G3516B

Collapse All
Generator Set Specifications
Continuous Rating 1300 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 35.70%
Maximum Standby Rating 1300 kW
Frequency 60 Hz
RPM 1800
Engine Specifications
Engine Model G3516B
Displacement 69 l
Aspiration TA
Bore 170 mm
Stroke 190 mm
Generator Set Dimensions
Length 4203 mm
Width 2155 mm
Height 2419 mm
Dry Weight - Genset 12618 kg
