G3512H

Gas Generator Sets

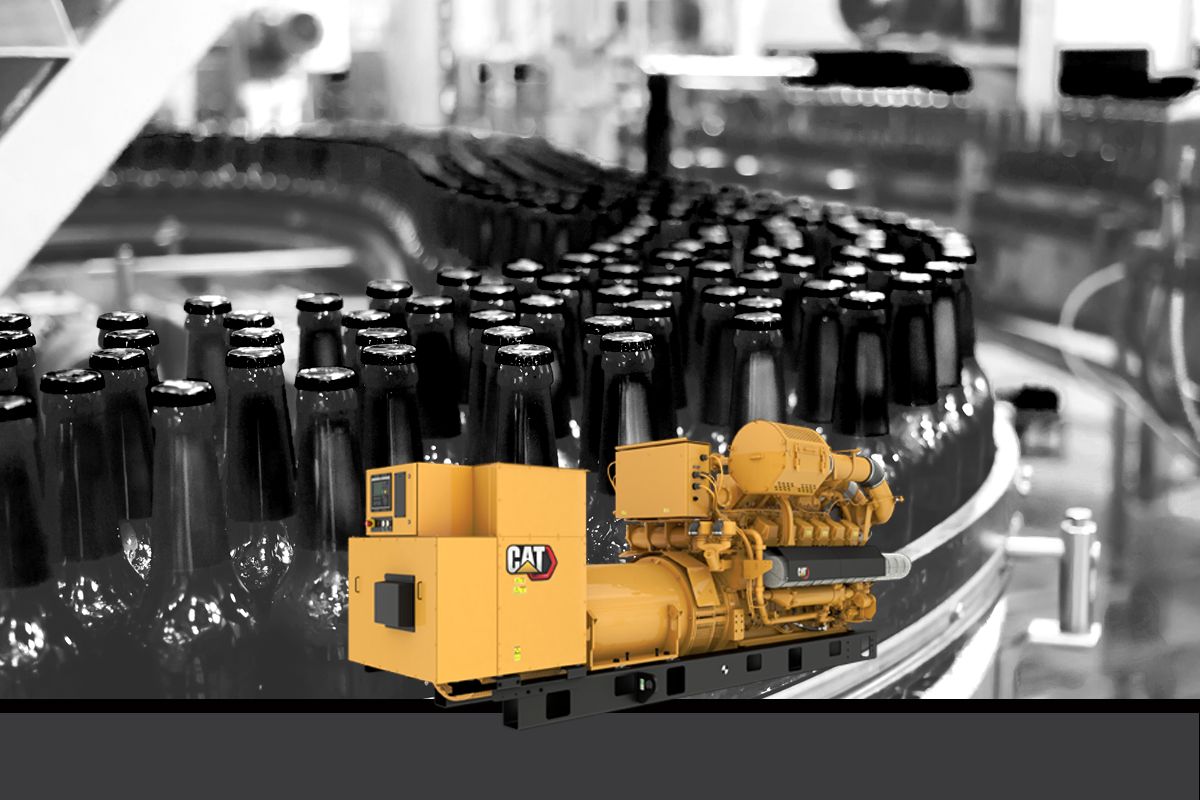

G3512H Generator Set

Show
Continuous Rating 1515 ekW / 1505 ekW @1.0pf
Fuel Type Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 44.90%
Frequency 50 / 60 Hz
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3512H
Request A Quote

OVERVIEW

1061 - 1515 kW Gas Generator

FEATURES & BENEFITS

Cat G3512H Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gas and hydrogen... Read more

SR5 Generator

Designed to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

Sistem Kontrol Elektronik Cat

Read more

SPECIFICATIONS FOR G3512H

Collapse All
Generator Set Specifications
Continuous Rating 1515 ekW / 1505 ekW @1.0pf
Fuel Type Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 44.90%
Frequency 50 / 60 Hz
RPM 1500 rpm
Engine Specifications
Engine Model G3512H
Displacement 59 l
Aspiration TA
Bore 170 mm
Stroke 215 mm
Governor Type ADEM A4
Generator Set Dimensions
Length 5656 mm
Width 1921 mm
Height 2308 mm
Dry Weight - Genset 14100 kg
