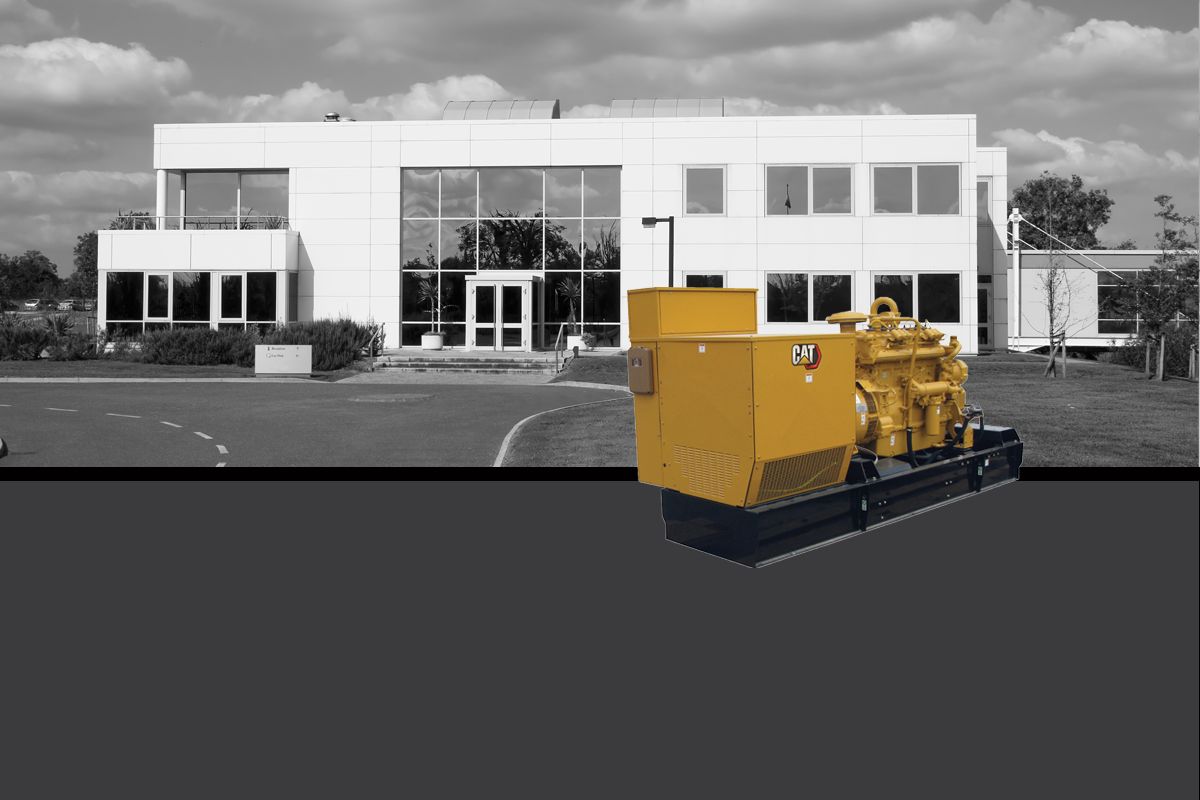

G3406

Gas Generator Sets

Show
Frequency 50 or 60 Hz
Fuel Type Natural Gas, Biogas, Field Gas, Propane
Continuous Rating 235 ekW
Maximum Electrical Efficiency 37.30%
Availability Contact Dealer
Request A Quote Download Brochure
G3406
Request A Quote

OVERVIEW

155 kW Gas Generator Set

SPECIFICATIONS FOR G3406

Collapse All
Generator Set Specifications
Frequency 50 or 60 Hz
Fuel Type Natural Gas, Biogas, Field Gas, Propane
Continuous Rating 235 ekW
Maximum Electrical Efficiency 37.30%
Maximum Standby Rating 260
RPM 1500 or 1800 rpm
Engine Specifications
Aspiration NA, TA
Bore 137 mm
Stroke 164 mm
Displacement 14.6 l
Engine Model G3406
Generator Set Dimensions
Length 4179 mm
Width 1294 mm
Height 2132 mm
Dry Weight - Genset 4082 kg
