G3516A

Gas Generator Sets

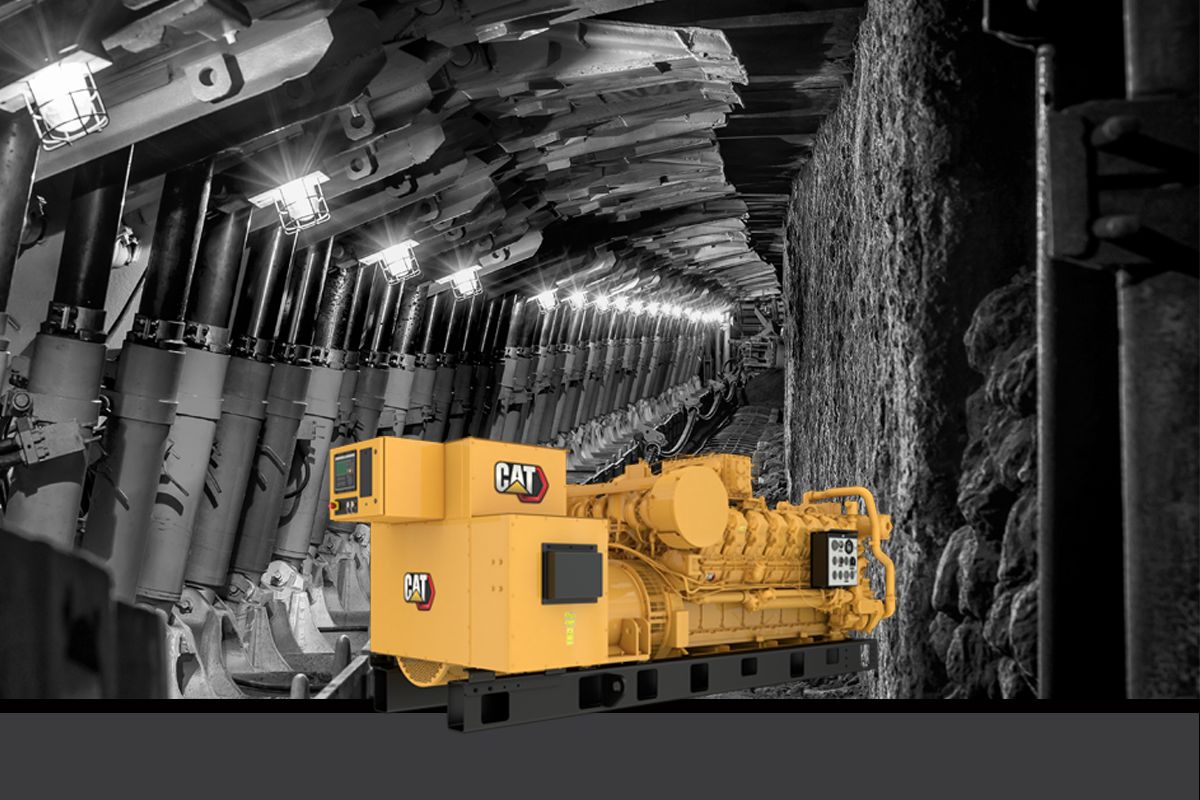

G3516A Gas Generator Set

Show
Continuous Rating 1085 ekW
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 36.50%
Maximum Standby Rating 1000 kw
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3516A
Request A Quote

OVERVIEW

728.7 kW - 1041 kW Gas Generator

FEATURES & BENEFITS

Cat G3516A Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gasSimple open c... Read more

SR5 Generator

Designed to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

Sistem Kontrol Elektronik Cat

Read more

SPECIFICATIONS FOR G3516A

Collapse All
Generator Set Specifications
Continuous Rating 1085 ekW
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 36.50%
Maximum Standby Rating 1000 kw
Frequency 50 / 60 Hz
RPM 1200 / 1500 rpm
Engine Specifications
Engine Model G3516A
Displacement 69 l
Aspiration TA
Bore 170 mm
Stroke 190 mm
Generator Set Dimensions
Length 4913 mm
Width 1736 mm
Height 1940 mm
Dry Weight - Genset 12549 kg
