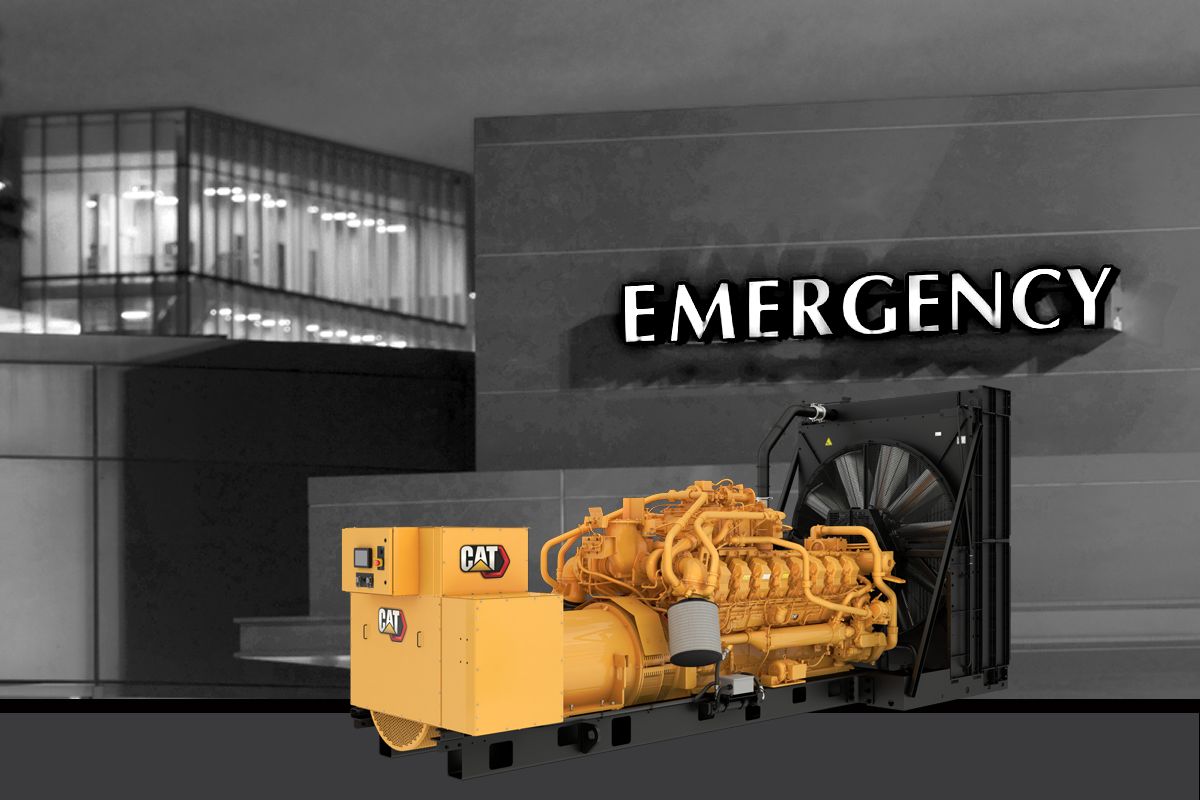

G3516 with FAST RESPONSE

Gas Generator Sets

Show
Gas Standby Rating 1500 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
RPM 1800 rpm
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3516 with FAST RESPONSE
Request A Quote

OVERVIEW

1000 - 1500 kW Natural Gas Generator

FEATURES & BENEFITS

CAT G3516 Gas Engine

Cat G3516 Gas EngineRobust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natu... Read more

SR5 Generator

SR5 GeneratorDesigned to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

Cat ECS 100 Control Panel

Cat ECS 100 Control PanelUser-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific program... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 43°C (110°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Emissions

EmissionsEPA Certified for use in Emergency and Non-Emergency applicationsAdditional a NOx selectable genset is available to meets most worldwide emissions requirements d... Read more

Proven System

Proven SystemField proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Full Range of AttachmentsWide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Worldwide Product Support     Cat dealers have over 1,800 dealer branch stores operating in 200 countries     Your local Cat deale... Read more

Sistem Kontrol Elektronik Cat

Read more

SPECIFICATIONS FOR G3516 with FAST RESPONSE

Collapse All
Generator Set Specifications
Gas Standby Rating 1500 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
RPM 1800 rpm
Frequency 60 Hz
Compression Ratio 11.5
Engine Specifications
Engine Model G3516
Displacement 78 l
Aspiration TA
Bore 170 mm
Stroke 215 mm
Generator Set Dimensions
Length 7000 mm
Width 2345 mm
Height 3265 mm
Weight 18315 kg
