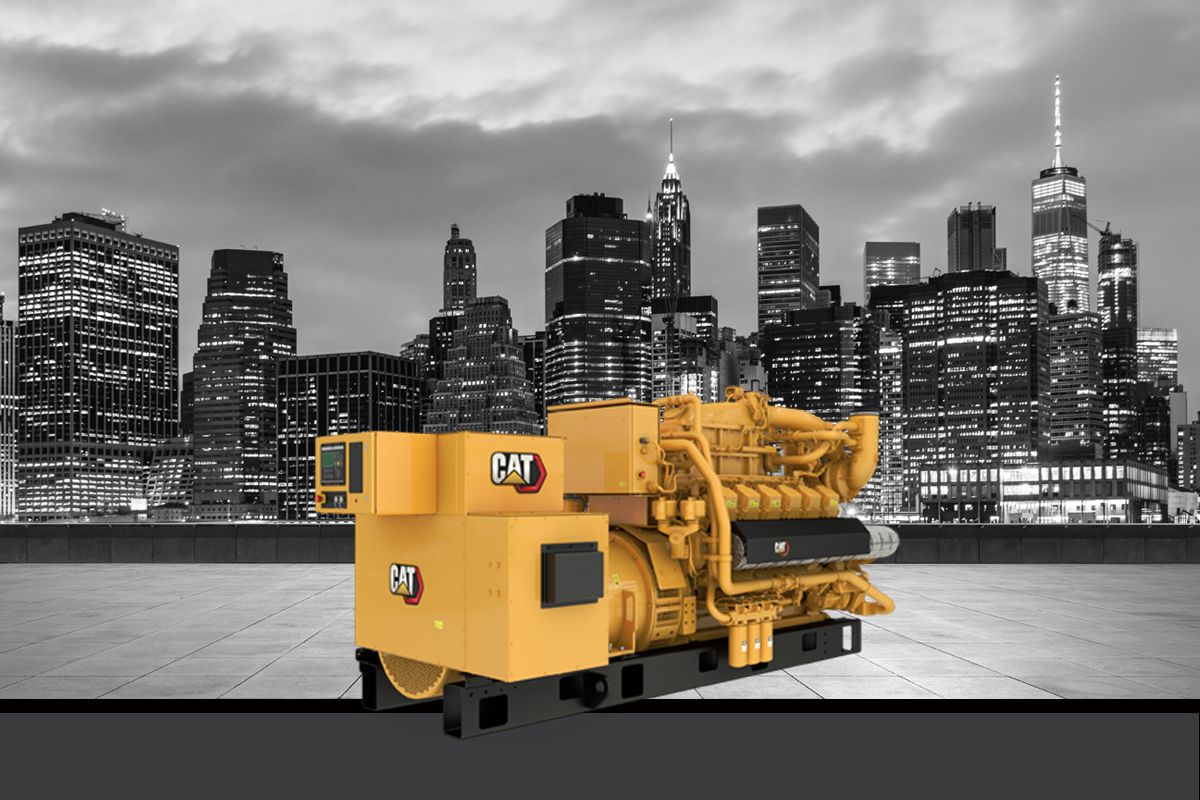

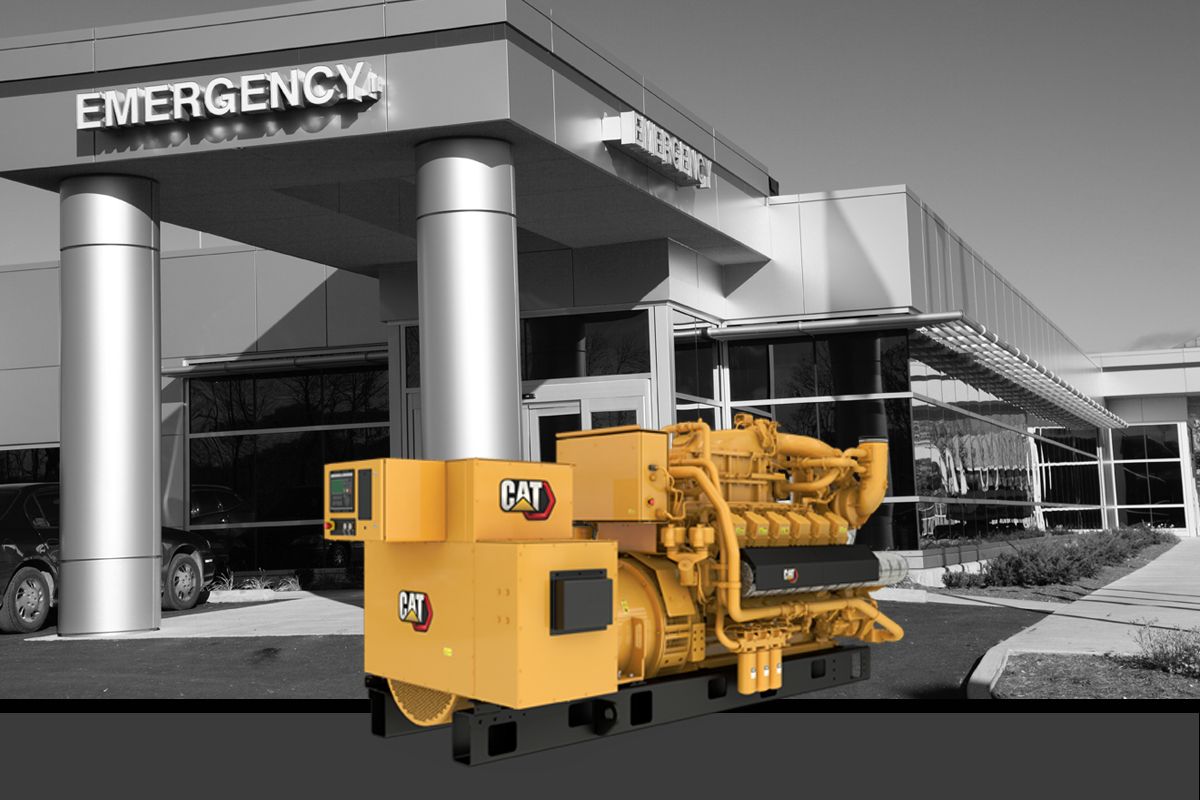

G3512E

Gas Generator Sets

Show
Continuous Rating 1200 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 42.30%
Maximum Standby Rating -
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3512E
Request A Quote

OVERVIEW

700 -1200kW Natural Gas Generator

FEATURES & BENEFITS

Cat G3512E Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gasSimple open c... Read more

SR4B Generator

Designed to match performance and output characteristics of Caterpillar gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

EMCP 4.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cat Electronic Control System

Simple user friendly interface and navigationDigital monitoring, metering and protection settingFully-featured power metering and protective relayingRemote control and mo... Read more

Cooling System

Read more

Emissions

Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR G3512E

Collapse All
Generator Set Specifications
Continuous Rating 1200 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 42.30%
Maximum Standby Rating -
Frequency 50 Hz
Speed 1500 rpm
Engine Specifications
Bore 170 mm
Aspiration TA
Engine Model G3512E
Stroke 190 mm
Displacement 52 l
Generator Set Dimensions
Length 4594 mm
Width 1647 mm
Height 2255 mm
Dry Weight - Genset 12460 kg
