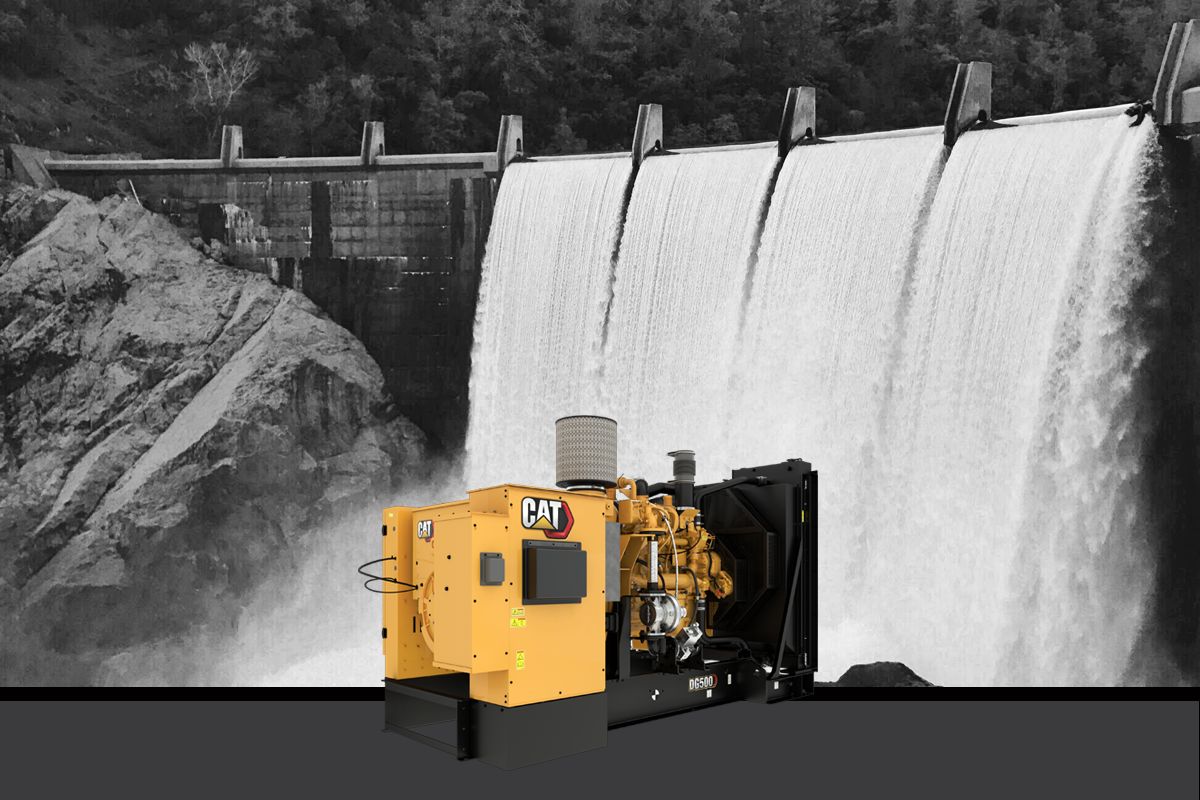

DG500 (3-Phase)

Gas Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Frequency 60 Hz
Natural Gas Rating 500 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
RPM 1800
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
DG500 (3-Phase)
Request A Quote

OVERVIEW

500 kW Natural Gas Generator Set

FEATURES & BENEFITS

Emissions Strategy

Certified EPA Stationary EmergencyComplies with emission standards required for local permits Read more

Cat CG18 Engine

Robust high speed block design provides prolonged life and lower owning operationg costs Designed for maximum performance on low pressure pipeline natural gas Leading edg... Read more

Generator

Class H Insulation. Highest classification ensures alternator durabilityMatched to the performance and output characteristics of Cat gas enginesIndustry leading mechanica... Read more

EMCP 4.2B Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 43°C (110°F) Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Full range of attachments

Wide range of bolt-on system expansion attachmentsr Factory designed and tested Flexible packaging options for easy and cost effective installation Read more

Footprint

Compact in-line design allows for improved packaging, resulting in the smallest genset footprint Read more

SPECIFICATIONS FOR DG500 (3-Phase)

Collapse All
Generator Set Specifications
Frequency 60 Hz
Natural Gas Rating 500 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
RPM 1800
Fuel Type Natural Gas
Voltage 208 - 600 VAC
Engine Specifications
Engine Model Cat® CG18 In-line 6, 4-cycle Natural Gas
Fuel System Gas mixer, Venturi
Aspiration Turbocharged - Air-to-Air Aftercooled
Governor Type Electronic
Displacement 18.1 l
Compression Ratio 10.5:1
Bore 145 mm
Stroke 183 mm
Generator Set Dimensions
Length 3581 mm
Width 1854 mm
Height 2083 mm
Weight 4863 kg
