DG50-2 (Single Phase)

Gas Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Voltage 240 Volts
Frequency 60 Hz
Natural Gas/LPG Rating 50 ekW / 50 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application
Availability Contact Dealer
Request A Quote Download Brochure
DG50-2 (Single Phase)
Request A Quote

OVERVIEW

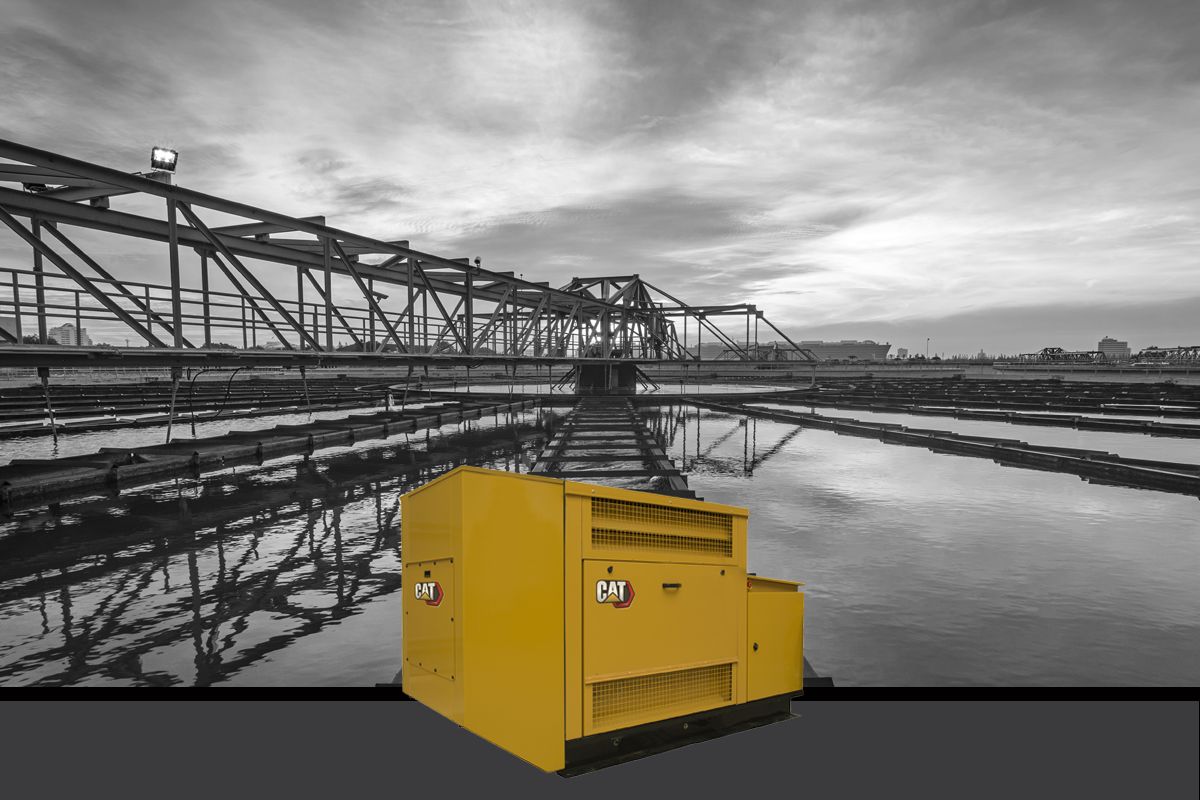

50 kW Natural Gas Generator Set

FEATURES & BENEFITS

Engine

Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight Read more

Generator

Matched to the performance and output characteristics of Cat enginesIndustry leading mechanical and electrical designIndustry leading motor starting capabilitiesHigh Effi... Read more

EMCP Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Design Criteria

The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient responseCooling system designed to operate in 50˚C/122˚F ambient te... Read more

UL 2200 / CSA - Optional

UL 2200 Listed packagesCSA CertifiedCertain restrictions may applyConsult with your Cat® Dealer Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR DG50-2 (Single Phase)

Collapse All
Generator Set Specifications
Voltage 240 Volts
Frequency 60 Hz
Natural Gas/LPG Rating 50 ekW / 50 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application
Speed 1800 rpm
Natural Gas Rating 50 ekW / 50 ekW
Engine Specifications
Engine Model 5.7L V8, 4-cycle Gas
Fuel System Natural Gas / LP Vapor
Displacement 5.7 l
Aspiration Naturally Aspirated
Governor Type Electronic
Compression Ratio 9.4:1
Bore 101.6 mm
Stroke 88.4 mm
Generator Set Dimensions
Length 2117 mm
Width 1000 mm
Height 1360 mm
Weight 920 kg
