CG170B-16

Gas Generator Sets

Show
Continuous Rating 1840 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 44.70%
Maximum Standby Rating 1840
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
CG170B-16
Request A Quote

OVERVIEW

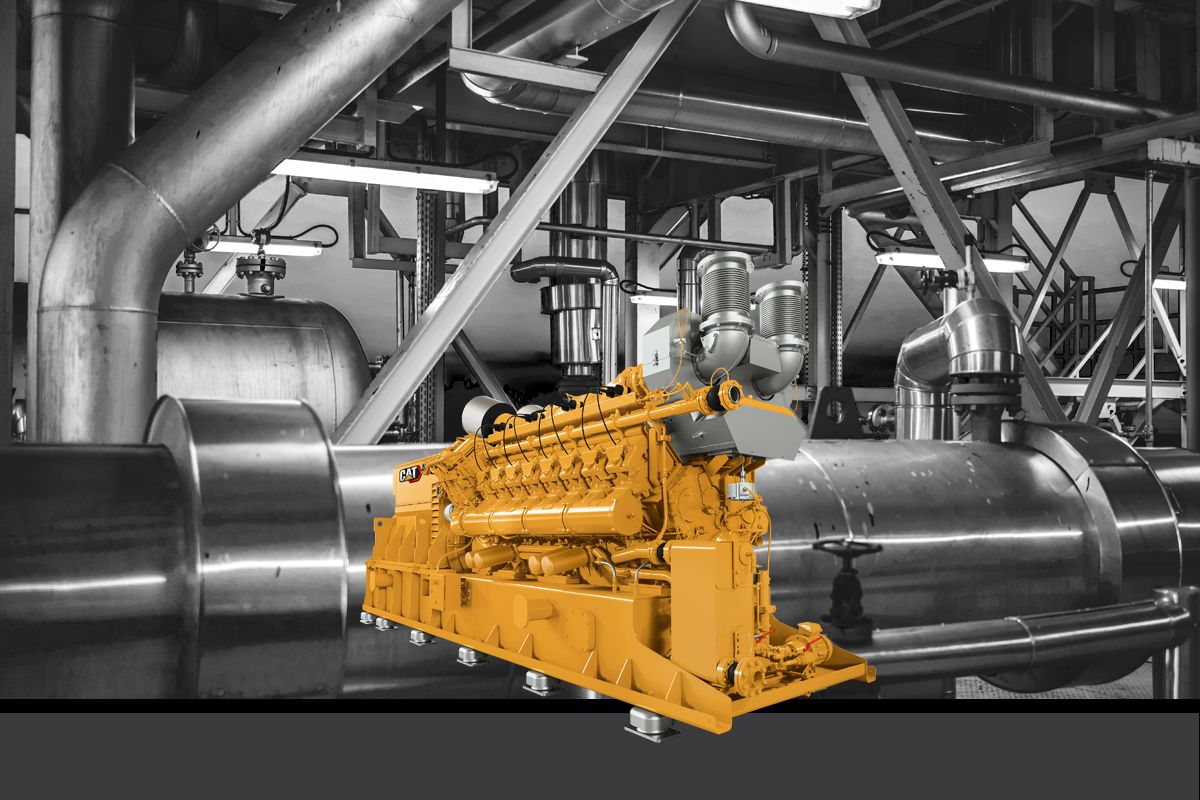

1840 kW Generator Set

FEATURES & BENEFITS

High Efficiency, Lower Operating Costs

Up to 44.7% electrical efficiency with Natural Gas43.6% electrical efficiency with biogasElectrical output up to 1,840 kWelReduced vibration and stress on components Read more

Compact Size, High Profitability

Compact design that delivers up to 18% more power output at the same size as its predecessorLong maintenance intervals (up to 80,000 hours)Available in different applicat... Read more

Optimized Lubrication Consumption

Consumes ~0.15g/kWhReduced lube oil temperature through better cooling performanceSavings of up to 3,000 liters of lube oil per year compared to comparable gensets Read more

SPECIFICATIONS FOR CG170B-16

Collapse All
Generator Set Specifications
Continuous Rating 1840 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 44.70%
Maximum Standby Rating 1840
Frequency 50 Hz
RPM 1500 rpm
Engine Specifications
Engine Model CG170B-16
Aspiration TA
Bore 170 mm
Stroke 195 mm
Generator Set Dimensions
Length 6100 mm
Width 1710 mm
Height 2190 mm
Dry Weight - Genset 17400 kg
