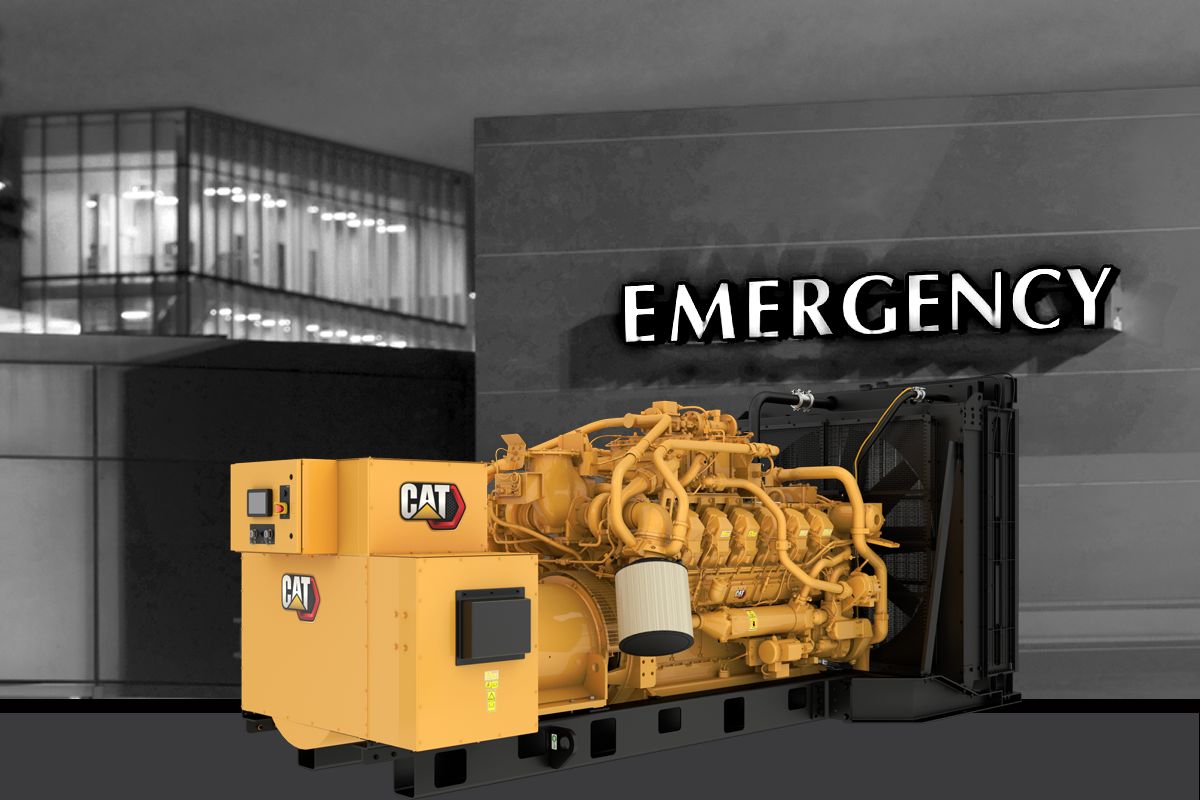

G3512 with FAST RESPONSE

Gas Generator Sets

Show
Gas Standby Rating 1000 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Certified for Non-Emergency Stationary Genset
RPM 1800 rpm
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
G3512 with FAST RESPONSE
Request A Quote

OVERVIEW

700 - 1000 kW Natural Gas Generator

FEATURES & BENEFITS

Cat G3512 Gas Engine

Robust high speed block design provides prolonged life and lower owning operationg costsDesigned for maximum performance on low pressure pipeline natural gas and hydrogen... Read more

SR5 Generator

Designed to match performance and output characteristics of Cat gas enginesIndustry leading mechanical and electrical designHigh efficiency Read more

Cat ECS 100 Control Panel

Antarmuka dan navigasi yang mudah digunakanSistem yang dapat diskalakan untuk memenuhi berbagai macam persyaratan instalasiModul ekspansi dan pemrograman khusus lokasi se... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 43°C (110°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Emissions

EPA Certified for use in Emergency and Non-Emergency applicationsAdditional a NOx selectable genset is available to meets most worldwide emissions requirements down to 0.... Read more

Proven System

Field proven in a wide range of applications worldwideFully prototype testedCertified torsional vibration analysis available Read more

Full Range of Attachments

Wide range of bolt-on system expansion attachmentsFactory designed and testedFlexible packaging options for easy and cost effective installation Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

Sistem kontrol elektronik Cat

Read more

SPECIFICATIONS FOR G3512 with FAST RESPONSE

Collapse All
Generator Set Specifications
Gas Standby Rating 1000 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Certified for Non-Emergency Stationary Genset
RPM 1800 rpm
Frequency 60 Hz
Displacement 52 l
Compression Ratio 9.7
Engine Specifications
Engine Model G3512
Displacement 52 l
Aspiration TA
Bore 170 mm
Stroke 190 mm
Generator Set Dimensions
Length 5224 mm
Width 2286 mm
Height 2525 mm
Weight 12500 kg
