Back to listing page

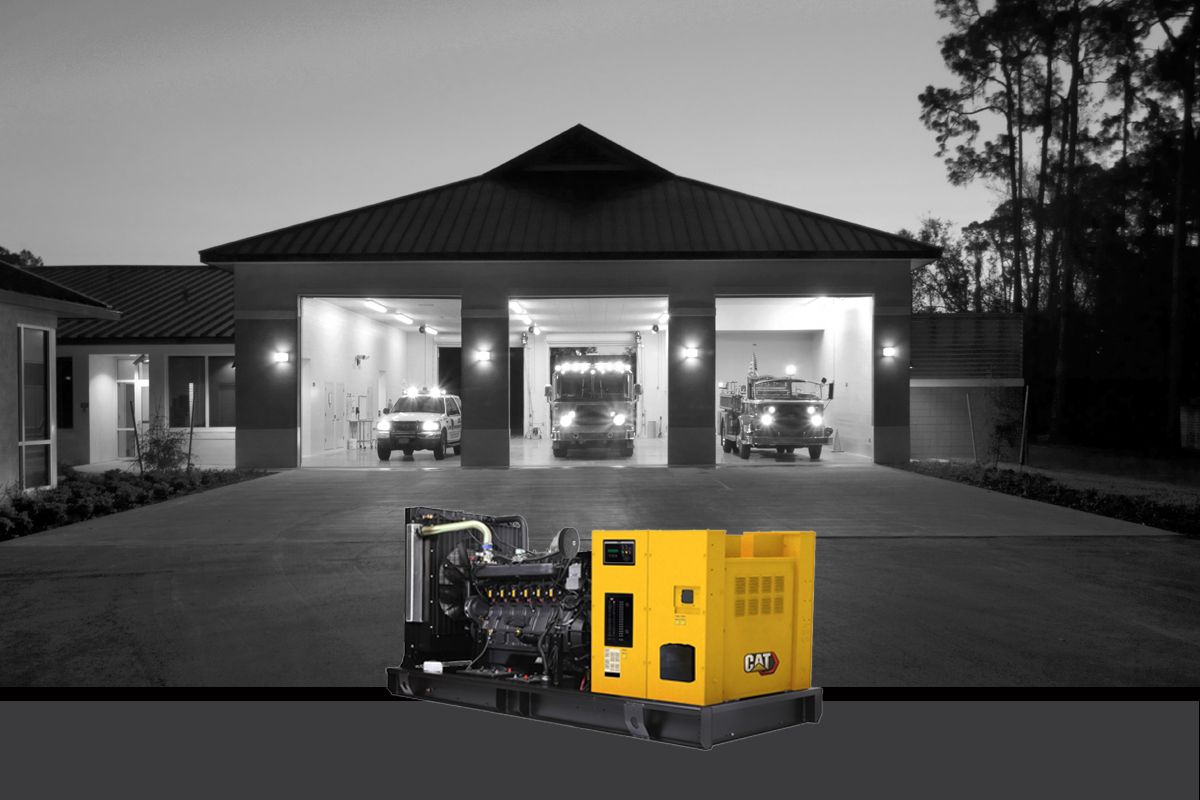

DG300 GC (3 phase)

Gas Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Frequency 60 Hz
Natural Gas Rating 300 eKW
Emissions/Fuel Strategy U.S. EPA Certified for Non-Emergency Application
Engine Model 14.2 L Spark - Ignited
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
DG300 GC (3 phase)
Request A Quote

OVERVIEW

300 kW Natural Gas Generator Set

FEATURES & BENEFITS

Engine

Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight Read more

Generator

Matched to the performance and output characteristics of Cat enginesIndustry leading mechanical and electrical designIndustry leading motor starting capabilitiesHigh Effi... Read more

Cat EMCP Control Panel

The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure relia... Read more

Design Criteria

The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient responseCooling system designed to operate in 50˚C/122˚F ambient te... Read more

UL 2200 / CSA - Optional

UL 2200 listed packagesCSA CertifiedCertain restrictions may apply.Consult with your Cat® Dealer. Read more

Worldwide Product Support

Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. Read more

SPECIFICATIONS FOR DG300 GC (3 phase)

Collapse All
Generator Set Specifications
Frequency 60 Hz
Natural Gas Rating 300 eKW
Emissions/Fuel Strategy U.S. EPA Certified for Non-Emergency Application
Displacement 14.17 l
Speed 1800 rpm
Engine Specifications
Engine Model 14.2 L Spark - Ignited
Compression Ratio 9.5:1
Fuel System Electronic
Bore 135 mm
Stroke 165 mm
Generator Set Dimensions
Length 3455 mm
Width 1463 mm
Height 1678 mm
Weight 2852 kg
