D1000 GC

Diesel Generator Sets

1000 ekW Generator Set for Standby applications

Show
Maximum Rating 1000 ekW
Minimum Rating 1000 ekW
Emissions/Fuel Strategy U.S. EPA Tier 2
Voltage 380 - 480 Volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
D1000 GC
Request A Quote

OVERVIEW

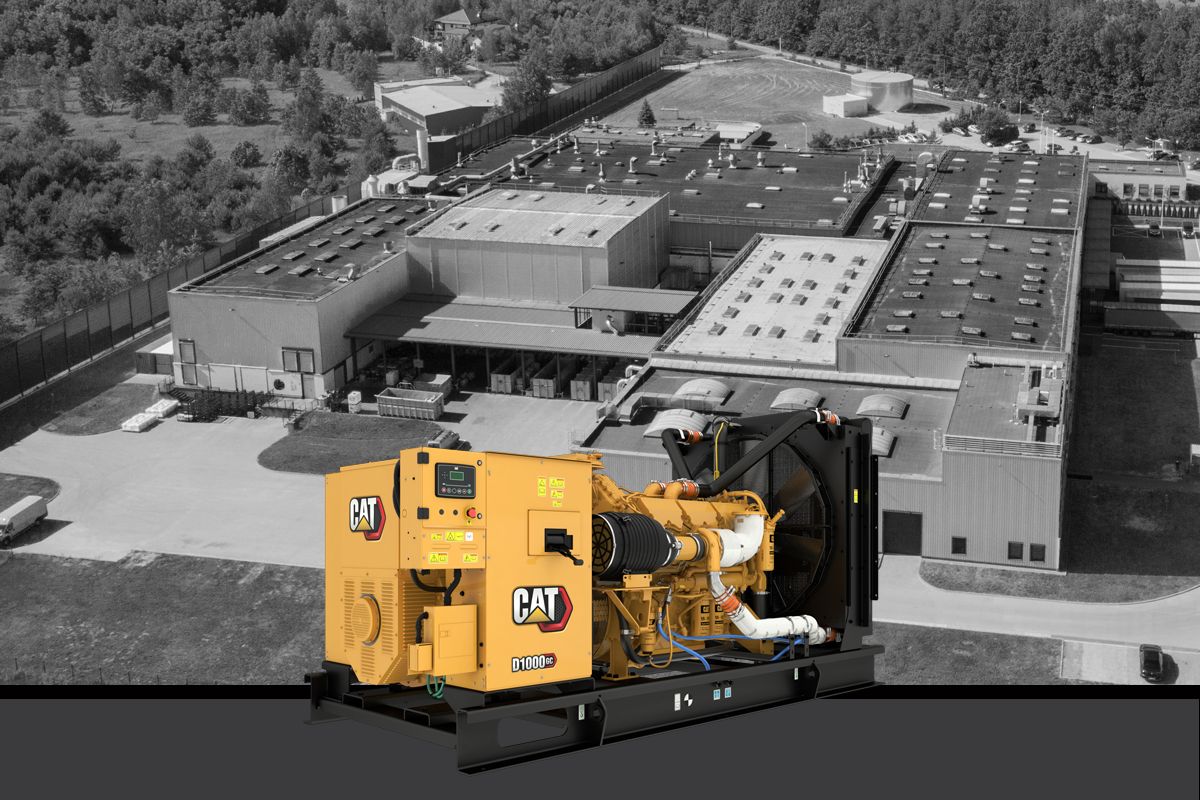

1000 eKW Diesel Generator Set

FEATURES & BENEFITS

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

SR500 Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

GCCP1.3 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementSite-specific programming for specific customer requirements Read more

Cooling System

Designed to operate in standard ambient temperatures up to 50°C (122°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

Low Fuel Consumption Read more

One Safe Source

Components used in the generator set are selected at the design stage to provide optimum package performanceThe generator set is fully assembled at a Caterpillar facility... Read more

SPECIFICATIONS FOR D1000 GC

Collapse All
Generator Set Specifications
Maximum Rating 1000 ekW
Minimum Rating 1000 ekW
Emissions/Fuel Strategy U.S. EPA Tier 2
Voltage 380 - 480 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore 145 mm
Stroke 162 mm
Displacement 32.1 l
Compression Ratio 15.0:1
Aspiration TA
Fuel System EUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Minimum 4175 mm
Length - Maximum 4175 mm
Width - Minimum 1856 mm
Width - Maximum 1856 mm
Height - Minimum 2217.5 mm
Height - Maximum 2217.5 mm
Dry Weight - Genset (minimum) 6654 kg
Dry Weight - Genset (maximum) 6654 kg
