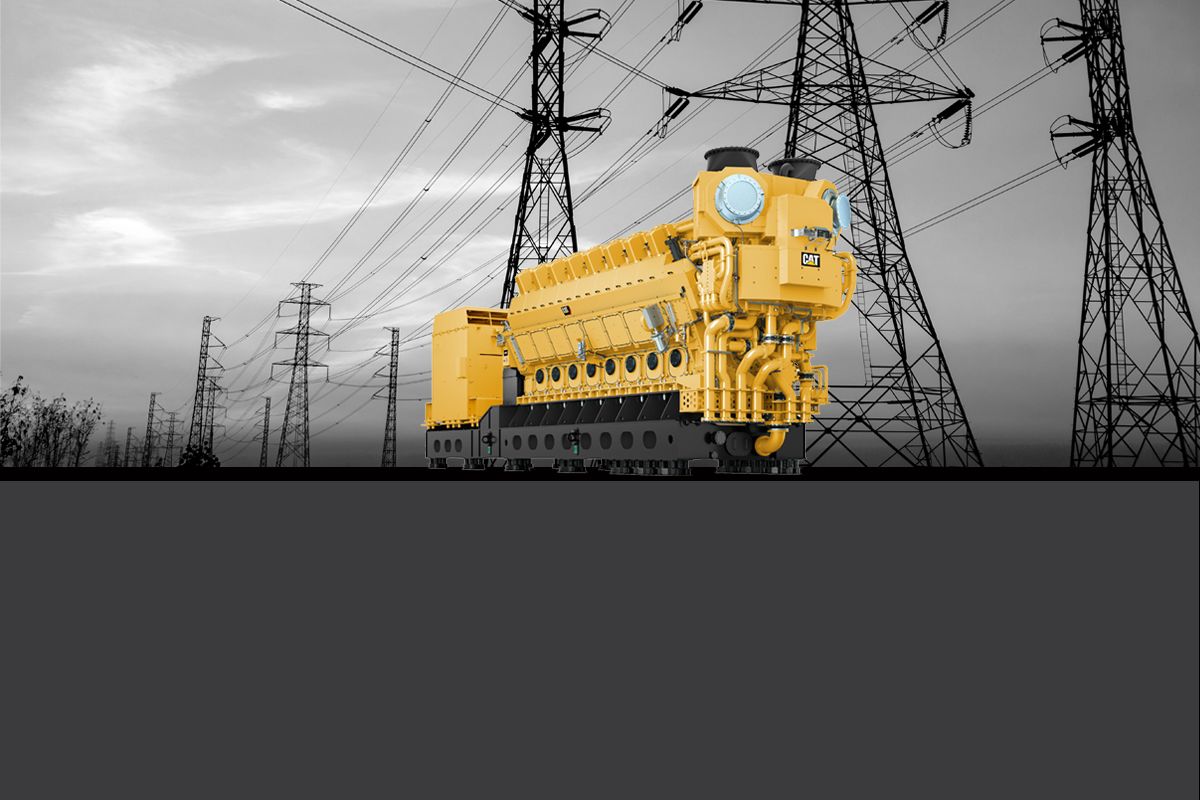

CM46DF V-Type

Diesel Generator Sets

Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.

Show
Minimum Rating 10580 kWe
Maximum Rating 14110 kWe
Emissions/Fuel Strategy (WB) Cert stage 1 and 2
Voltage 3000 to 13800 Volts
Availability Contact Dealer
Request A Quote Download Brochure
CM46DF V-Type
Request A Quote

OVERVIEW

CM46DF V-Type

FEATURES & BENEFITS

Reliable Operation

Reliable OperationIntensive cooling of key components including exhaust valve seats, injector cooling integrated into lube oil systemReliable, proven and high efficient s... Read more

Control & Monitoring

Control & MonitoringUltrafast start time and load acceptanceNo engine start limitationsContinuous power (base and peak load), prime power, stand-byPart load with high eff... Read more

Ease Of Installation

Ease Of InstallationReduced complexity of standard modular design allows an easy installationLow space requirements between the gensetsGenset is ready for installationGen... Read more

Ease Of Operation

Ease Of OperationLow fuel and oil consumptionLow maintenance requirementsOperator and maintenance training courses available Read more

Intelligent Simplicity

Intelligent SimplicityHigh reliability, modular design and integral construction reduce the number of components by 40% over conventional designs e.g.:Dry engine block wi... Read more

Ease Of Maintenance

Ease Of MaintenanceSmart maintenance solutions allow an easy component accessibilityLarge inspection openings afford an easy serviceability to core engine internalsCore e... Read more

Fuel

FuelLiquid: Light fuel oil (LFO), crude oil and heavy fuel oil (HFO) with fuel quality up to 700 cSt/50°C according to CIMAC H55/K55Dual:- Light fuel oil (LFO), crude oil... Read more

Emissions

EmissionsWorld bank emission certification (Stage 2)Technische Anleitung (TA) Luft (only gas)Post-emission treatment systems for lower emission requirements available Read more

Expertise & Experience

Expertise & ExperienceAssistance for planning - delivery - commissioning - operation and service)Expertise and experience for solutions to maximize benefits, e.g. combine... Read more

SPECIFICATIONS FOR CM46DF V-Type

Collapse All
Generator Set Specifications
Minimum Rating 10580 kWe
Maximum Rating 14110 kWe
Emissions/Fuel Strategy (WB) Cert stage 1 and 2
Voltage 3000 to 13800 Volts
Frequency At Speed 50 Hz @ 500 / 60 Hz @ 514
Duty Cycle Prime, Continuous
Ready To Accept Loads (Preheated/Vented) 40 s
Normal Ramp Up To 100% Load 80 s
Emergency Ramp Up 10% To 100% Load 25 s
Genset Efficiency Up To 48.50%
Engine Specifications
Engine Model CM46DF V-Type, 4-stroke-engine
Bore 460 mm
Stroke 610 mm
Aspiration Turbocharged-aftercooled
Engine Rating Range 10800 - 14400 kW
Configuration 12,16 cylinder
Fuel Type Gas / diesel oil / heavy fuel oil (HFO) / crude oil
Swept Volume 101.4 l/cyl
Mean Effective Pressure Up To 21.3 bar
Specific Fuel Oil Consumption (WB I) Up To 184 g/kWh
Specific Fuel Oil Consumption (WB II) Up To 184 g/kWh
Specific Lube Oil Consumption 0.6 g/kWh
Generator Set Dimensions
Length - Minimum 14280 mm
Length - Maximum 16565 mm
Width - Minimum 3890 mm
Width - Maximum 4027 mm
Height - Minimum 4659 mm
Height - Maximum 4773 mm
Dry Weight - Genset (minimum) 227 ton (US)
Dry Weight - Genset (maximum) 286 ton (US)
