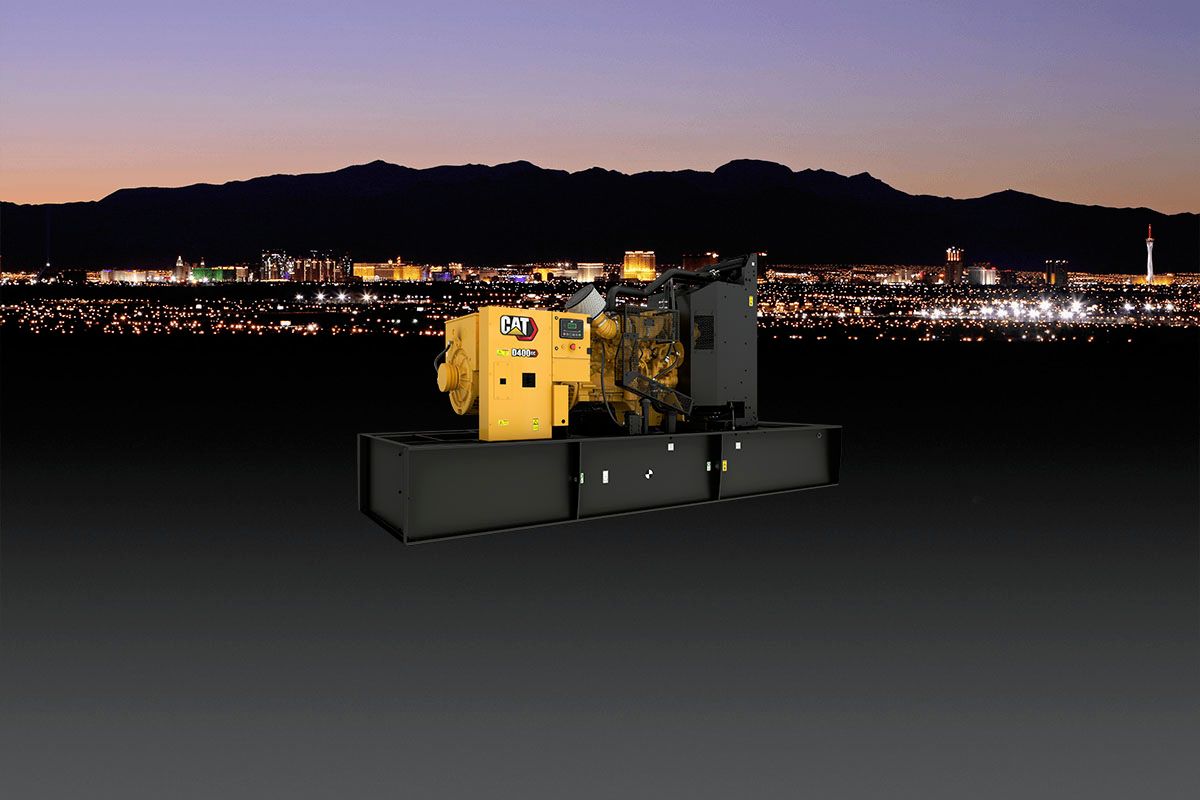

D350 GC

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Minimum Rating 350 ekW
Maximum Rating 400 ekW
Emissions/Fuel Strategy EPA Stationary Emerg Use
Voltage 480 to 600 Volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
D350 GC
Request A Quote

OVERVIEW

D350 / D400 GC Diesel Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to ISO 8528-5 steady state a... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

SR500 Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

GCCP 1.2 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to104°F (40°C)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

UL 2200 ListedULC Certification Available Read more

One Safe Source

Components used in the generator set are selected based on seamless design integration to provide the optimum performanceThe generator set is fully assembled at a Caterpi... Read more

World Wide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR D350 GC

Collapse All
Generator Set Specifications
Minimum Rating 350 ekW
Maximum Rating 400 ekW
Emissions/Fuel Strategy EPA Stationary Emerg Use
Voltage 480 to 600 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C13 ACERT In-line 6, 4-cycle diesel
Bore 130 mm
Stroke 157 mm
Displacement 12.5 B
Compression Ratio 16.3:1
Aspiration Air to Air Aftercooled
Fuel System MEUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 4625 mm
Width - Maximum 1630 mm
Height - Maximum 2456 mm
