3516C (50 Hz)

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Minimum Rating 2500 kVA
Maximum Rating 2750 kVA
Voltage 220 to 13800 volts
Frequency 50 Hz

Availability Contact Dealer

OVERVIEW

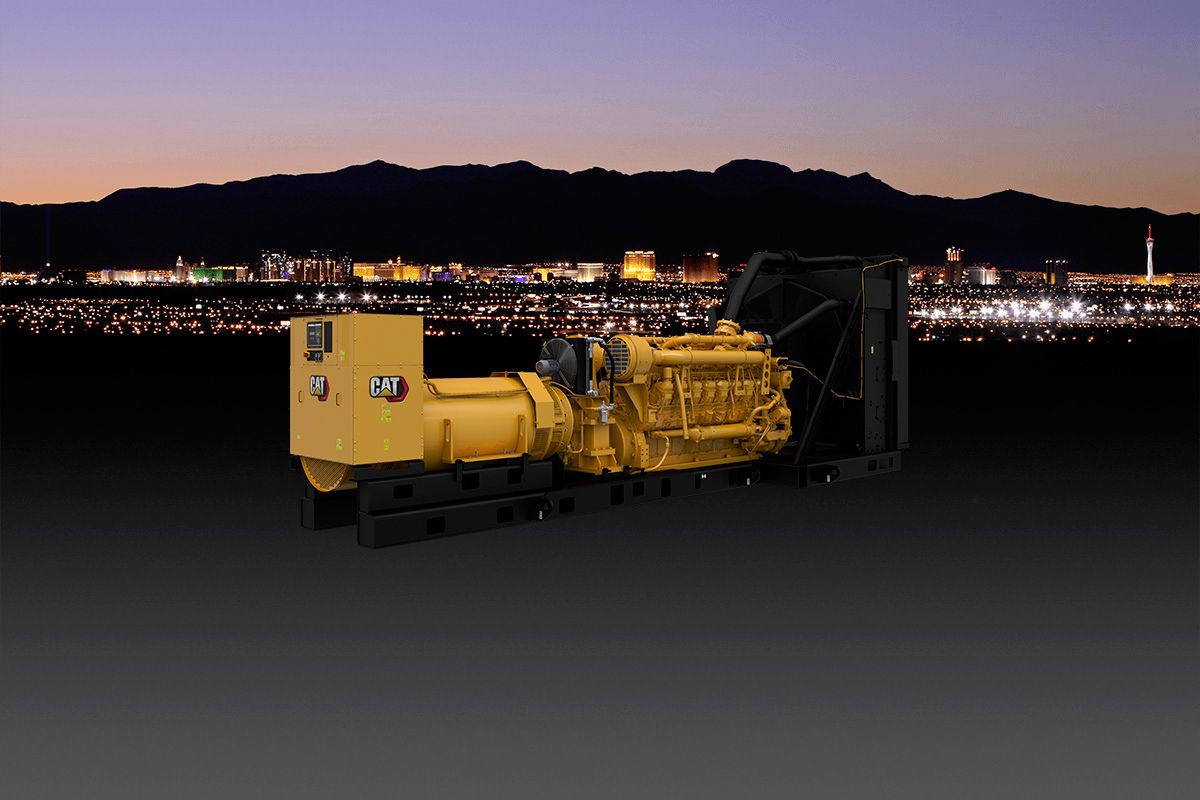

3516C Generator Set

  • 2500 hingga 2750 kVA, 1650 hingga 2500 ekW
  • 50 Hz 1500 rpm atau 60 Hz 1800 rpm
  • 380 hingga 13.800 Volt
  • Untuk aplikasi Siaga, Utama, dan Kontinu

FEATURES & BENEFITS

Cat Diesel Engine

Cat Diesel EngineReliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and ex... Read more

Generator

GeneratorMatched to the performance and output characteristics of Cat engines Industry leading mechanical and electrical design Industry leading motor starting capabiliti... Read more

EMCP Control Panel

EMCP Control PanelThe EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform design... Read more

Seismic Certification

Seismic CertificationSeismic Certification available. Anchoring details are site specific, and are dependent on many factors such as generator set size, weight, and conc... Read more

Design Criteria

Design CriteriaThe generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response. Read more

UL 2200 / CSA - Optional

UL 2200 / CSA - OptionalUL 2200 listed packages CSA CertifiedCertain restrictions may apply. Consult with your Cat® Dealer. Read more

Single-Source Supplier

Single-Source SupplierFully prototype tested with certified torsional vibration analysis available Read more

World Wide Product Support

World Wide Product SupportCat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores op... Read more

SPECIFICATIONS FOR 3516C (50 Hz)

Collapse All
Generator Set Specifications
Minimum Rating 2500 kVA
Maximum Rating 2750 kVA
Voltage 220 to 13800 volts
Frequency 50 Hz
Speed 1500 rpm
Emissions/Fuel Strategy U.S. EPA Certified
Engine Specifications
Engine Model 3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel
Compression Ratio 14.7:1
Aspiration TA
Governor Type Adem™3
Fuel System Electronic unit injection
Stroke - HD 215 mm
Bore 170 mm
