963K

Track Loaders

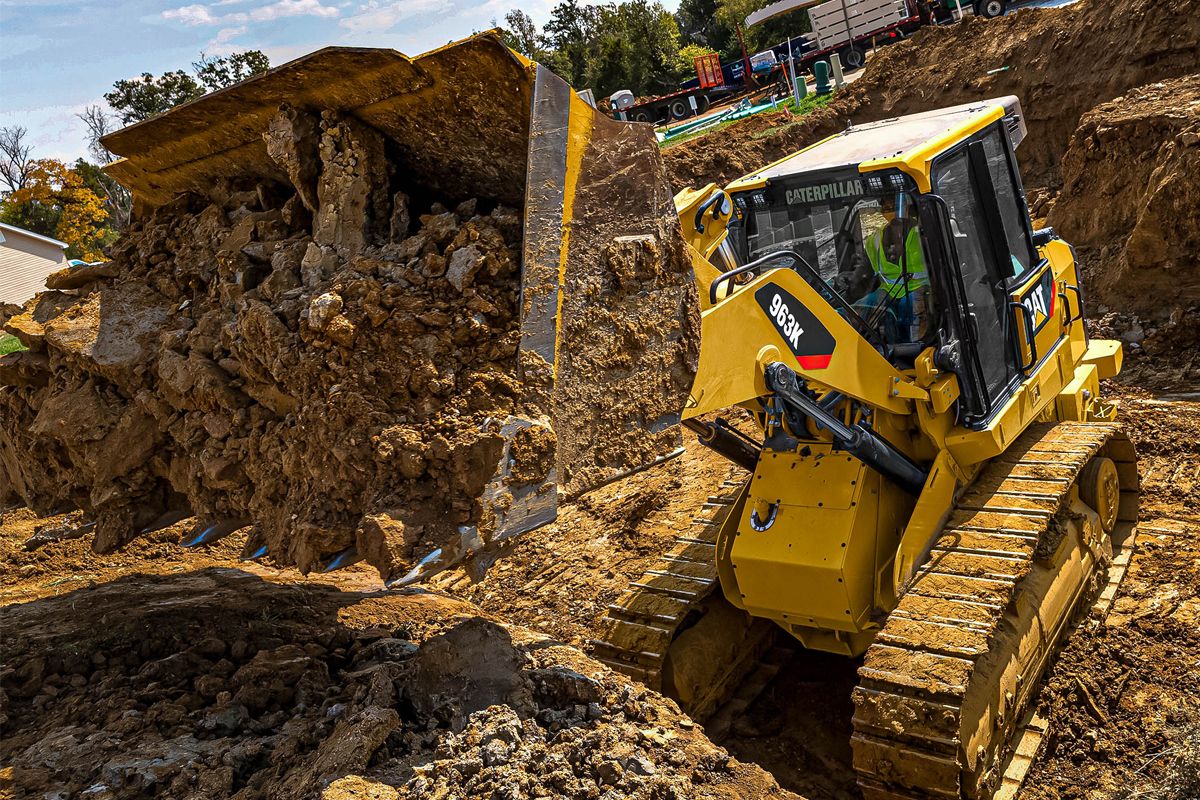

Save money and transport time with one rugged machine for land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you reduced ground pressure and better traction so you can start the job earlier and work longer in soft underfoot conditions. Purpose-built Waste Handler, Ship Hold and Partial Steel Mill configurations stand up to the toughest applications. This new generation of Cat® Track Loaders brings you all of this, plus improved performance and fuel efficiency.For complete machine specifications and available configurations, please see your Cat dealer or visit www.cat.com.

Show
Flywheel Power 144 kW
Engine Model Cat C7.1
Net Power - ISO 9249/SAE J1349 144 kW
Net Power - ISO 9249/SAE J1349 (DIN) 196 HP
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
963K
Request A Quote

OVERVIEW

One Machine, Many Jobs

FEATURES & BENEFITS

DO MORE WITH LESS FUEL

963K uses 10–25 percent less fuel per hour than the previous model.Efficient use of Diesel Exhaust Fluid*– typically 2.5-3 percent of fuel consumption – provides excellen... Read more

BUILT TO PERFORM

Smoother implement and steering response, and improved steering performance over the previous model.Features like load sensing hydraulics and position sensing cylinders o... Read more

EXPAND YOUR CAPABILITIES

Steel track undercarriage allows you to work in wet, soft, or sensitive underfoot conditions.Finish jobs in less time – track loaders can often start the job earlier and... Read more

EASY TO OPERATE

Choose either joystick or two-lever implement controls to match operator preference or application.Speed/steering controls available as either a joystick or as v-lever an... Read more

SAVE ON MAINTENANCE TIME

Integrated diagnostics show operators on-board pressure readings for faster service.Tilt cab and convenient service access points for easier maintenance and repair.Demand... Read more

TAKE ON THE TRASH

Waste Handler arrangements feature added guarding and seals to give you a purpose-built machine to take on the challenges of waste applications. A choice of buckets and t... Read more

KEEP THINGS SHIPSHAPE

Specialized Ship Hold machines give you the optimal combination of traction, high reach and machine balance makes track loaders ideal for working in ship holds and port h... Read more

SPECIFICATIONS FOR 963K

Collapse All
Engine
Flywheel Power 144 kW
Engine Model Cat C7.1
Net Power - ISO 9249/SAE J1349 144 kW
Net Power - ISO 9249/SAE J1349 (DIN) 196 HP
Emissions U.S. EPA Tier 4 Final/EU Stage IV, China Nonroad Stage III, equivalent to Tier 3/Stage IIIA
Note (1) All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2) Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Weights
Operating Weight 20021 kg
Operating Weight(1) 20021 kg
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.
Service Refill Capacities
Fuel Tank 320 l
DEF Tank(1) 16 l
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.
Dimensions
Overall Machine Length* 7001 mm
Machine Height - Top of Cab 3325 mm
Height - Top of Stack 2940 mm
Overall Machine Height - Bucket Fully Raised 5402 mm
Overall Machine Width without Bucket: With Standard Tracks - 550 mm (21.6 in) Shoes 2400 mm
Note *With General Purpose bucket and extra duty teeth.
Undercarriage
Track Gauge 1850 mm
Track Shoe Width - Standard 550 mm
Track Shoe Width - Optional 450 mm
Track on Ground 2542 mm
Ground Contact Area - Standard Shoe 3.2 m²
Ground Contact Area - Optional Shoe 2.6 m²
Ground Pressure(1) - Standard Shoe 62.9 kPa
Ground Pressure(1) - Optional Shoe 76.9 kPa
Ground Pressure - Standard Shoe 62 kPa
Ground Pressure - Optional Shoe 75.8 kPa
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.
Buckets
Capacity - General Purpose 2.5 m³
Capacity - Multi-Purpose 2 m³
Capacity - Performance Series 2.8 m³
Width - General Purpose 2612 mm
Width - Multi-Purpose 2575 mm
Width - Performance Series 2712 mm
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.
