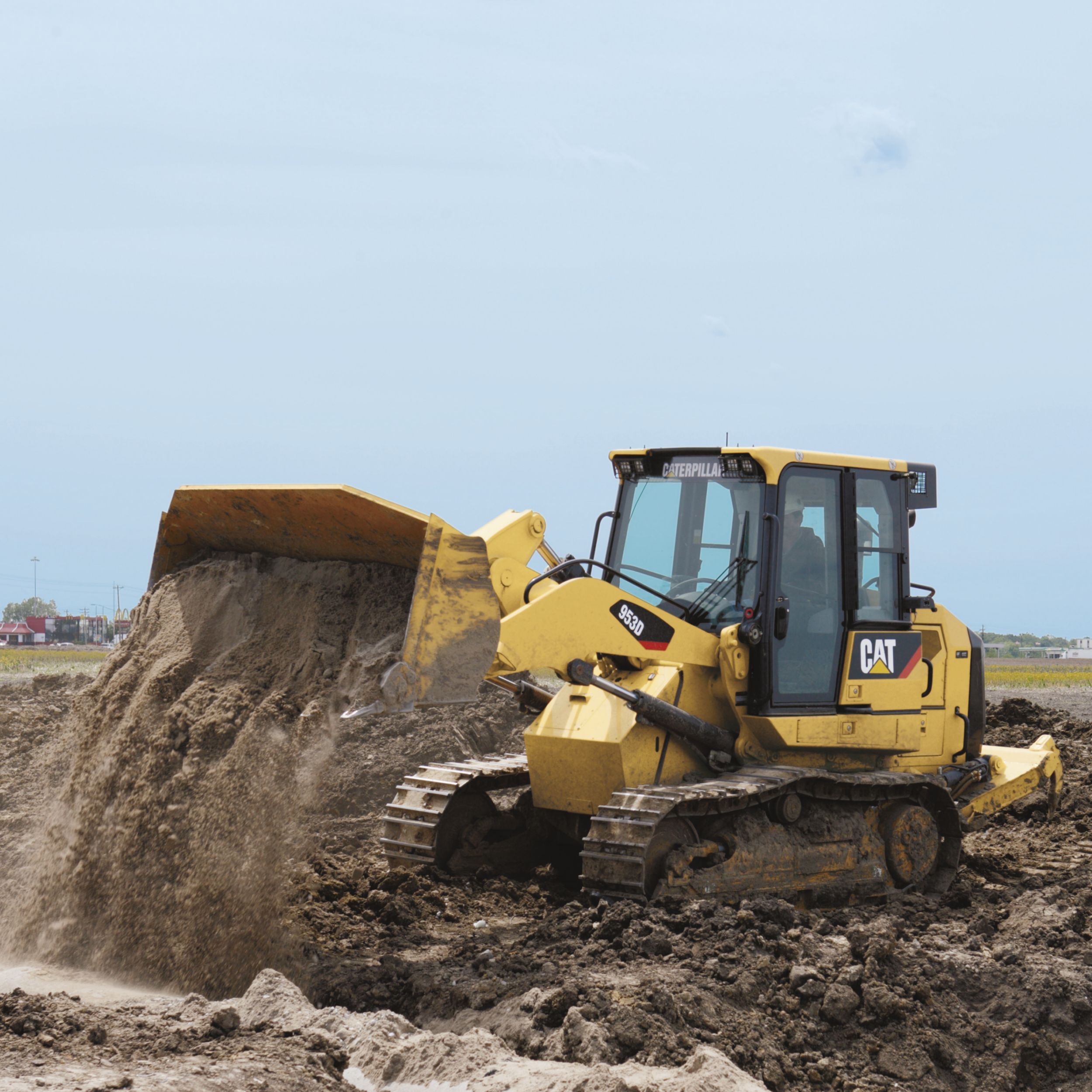

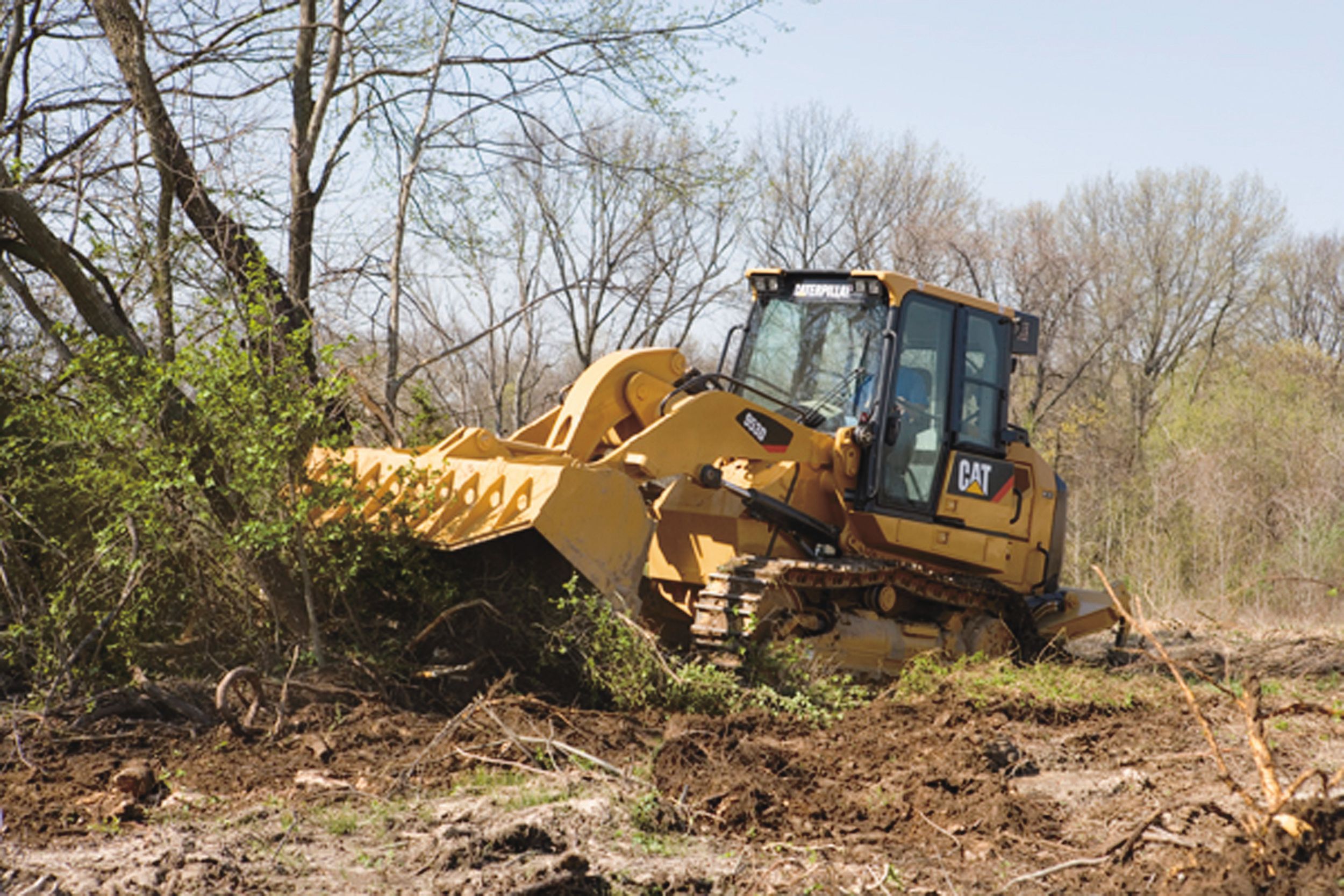

953D

Track Loaders

Increased horsepower, excellent maneuverability, redesigned operator cab for comfort, the revolutionary SystemOneTM undercarriage and the new implement system increase your productivity, drastically reduce your operating costs and make the new 953D unsurpassed in versatility.

Show
Flywheel Power 110 kW
Engine Model Cat® C6.6 ACERT™
Net Power - Caterpillar 110 kW
Net Power - ISO 9249 110 kW
Availability Contact Dealer
Request A Quote Rent a Machine
953D
Request A Quote

FEATURES & BENEFITS

Engine

Cat C6.6 ACERT™The Cat® C6.6 is a 6.6 liter (403 in3) displacement, six-cylinder, in-line configured engine that utilizes the Caterpillar Common Rail fuel system for fuel... Read more

Operator Station

Heating and Air ConditioningAir conditioning is standard on 953D. Both the air conditioning and the heater deliver filtered, pressurized, temperature-controlled air to th... Read more

Monitoring System

The 953D gauge cluster displayThe gauge cluster provides all necessary information within the operator's normal line of sight. The 953D gauge cluster display includes:... Read more

Hydrostatic Drive

The electronically controlled hydrostatic drive system automatically matches machine travel speed to the combined travel and implement loads on the machine, enabling maxi... Read more

Implement System

Electro-hydraulic Implement ControlsElectro hydraulic implement controls on the 953D provide the operator with responsive, smooth and precise control of bucket and lift a... Read more

SystemOne™ Undercarriage

Revolutionary UndercarriageSystemOne™ is the latest innovation in a century of undercarriage leadership. Nearly every major undercarriage improvement over the last 100 ye... Read more

Structure

Mainframe and Loader TowerThe 953D Main Frame and Loader Tower is a single, slab rails with reinforced crossings, with castings and forgings incorporated at points of hig... Read more

Special Application Arrangements

With the addition of certain special modifications, the capabilities of the 953D can be further expanded to handle some very harsh working conditions.Waste Handling Arran... Read more

Versatility

General Purpose BucketThe General Purpose (GP) bucket is designed for excellent loadability and long life in a broad range of applications such as hard bank excavating, s... Read more

SPECIFICATIONS FOR 953D

Collapse All
Engine
Flywheel Power 110 kW
Engine Model Cat® C6.6 ACERT™
Net Power - Caterpillar 110 kW
Net Power - ISO 9249 110 kW
Net Power - SAE J1349 110 kW
Net Power - EEC 80/1269 110 kW
Bore 105 mm
Stroke 127 mm
Displacement 6.6 l
Undercarriage
Track Shoe Type Double Grouser
Track Shoe Width - Standard 480 mm
Track Shoe Width - Optional 380 mm
Track Rollers - Each Side 6
Number of Shoes - Each Side 37
Track on Ground 2323 mm
Ground Contact Area - Standard Shoe 2.3 m²
Ground Contact Area - Optional Shoe 1.8 m²
Ground Pressure - Standard Shoe 65.5 kPa
Ground Pressure - Optional Shoe 84.6 kPa
Grouser Height - Double Grouser 35 mm
Track Gauge 1800 mm
Drive System
Type Hydrostatic drive with infinite machine speeds to 10.0 km/h (6.2 mph)
Drive Pump Two variable-displacement, slipper-type axial piston pumps
Track Motor Two variable-displacement, bend axis motors
Relief Valve Setting 45000 kPa
Hydraulic System - Pilot
Cycle Time - Raise 5.9 s
Cycle Time - Dump 1.5 s
Service Refill Capacities
Fuel Tank 316 l
Cooling System 31 l
Crankcase - With Filter 16.5 l
Final Drive - Each 10.8 l
Hydraulic Tank 70 l
Pivot Shaft 0.7 l
Electrical System
Type 24V DC
Battery Capacity 950 CCA
Battery Voltage 12
Battery Quantity 2
Alternator 95 Amps, Heavy-Duty Brushless
Weights
Operating Weight 15595 kg
Buckets
Capacity - General Purpose 1.85 m³
Capacity - Multi-Purpose 1.6 m³
Bucket Width - General Purpose 2485 mm
Bucket Width - Multi-Purpose 2471 mm
Operating Specifications
Maximum Travel Speed 10 km/h
Ripper Specifications
Type Radial
Number of Pockets 3
Overall Width/Beam 2069 mm
Shank Cross Section 50 x 109 mm 50 x 4.2 in
Ground Clearance 697 mm
Penetration 302 mm
Ripping Width 1800 mm
Cylinders - Bore 101.6 mm
Cylinders - Stroke 270 mm
Addition to Machine Length Due to Ripper in Transportation Position 453 mm
Standards
ROPS/FOPS ROPS/FOPS
Brakes Brakes
Cab Cab
Hydraulic System - Implement
Cycle Time - Total 6.5 s
