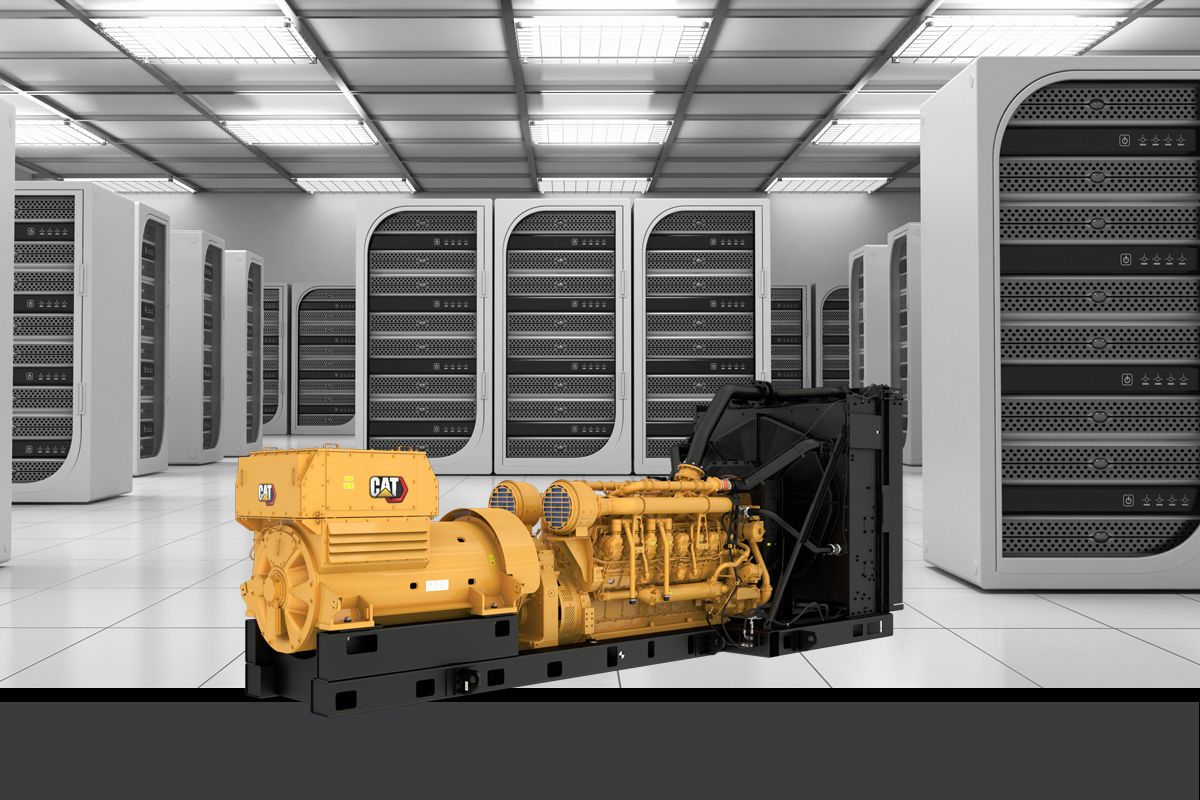

3516E (50 Hz)

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Maximum Rating 3500 kVA
Minimum Rating 3000 kVA
Emissions/Fuel Strategy Tier 2 Equivalent - 1800 rpm
Voltage 380 to 11000 volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
3516E (50 Hz)
Request A Quote

OVERVIEW

3000 - 3500 kVA Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to ISO 8528-5 steady state a... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

SR5 Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

Cat Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 50�C (122�F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

EU Declaration of ConformityEU Declaration of IncorporationEurasian Conformity (EAC) Read more

One Safe Source

Components used in the generator set are selected at the design stage to provide optimum package performanceThe generator set is fully assembled at a Caterpillar facility... Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR 3516E (50 Hz)

Collapse All
Generator Set Specifications
Maximum Rating 3500 kVA
Minimum Rating 3000 kVA
Emissions/Fuel Strategy Tier 2 Equivalent - 1800 rpm
Voltage 380 to 11000 volts
Frequency 50 Hz
Speed 1800 rpm
Duty Cycle Standby, Mission Critical
Engine Specifications
Engine Model 3516E, V-16, 4-Stroke Water-Cooled Diesel
Bore 170 mm
Stroke 215 mm
Displacement 78.1 l
Compression Ratio 14.7:1
Aspiration ATAAC
Fuel System Electronic Unit Injection
Governor Type Adem™5
Generator Set Dimensions
Length - Minimum 8513 mm
Length - Maximum 8513 mm
Width - Minimum 2640 mm
Width - Maximum 2460 mm
Height - Minimum 3342 mm
Height - Maximum 3342 mm
Dry Weight - Genset (minimum) 21600 kg
Dry Weight - Genset (maximum) 23000 kg
