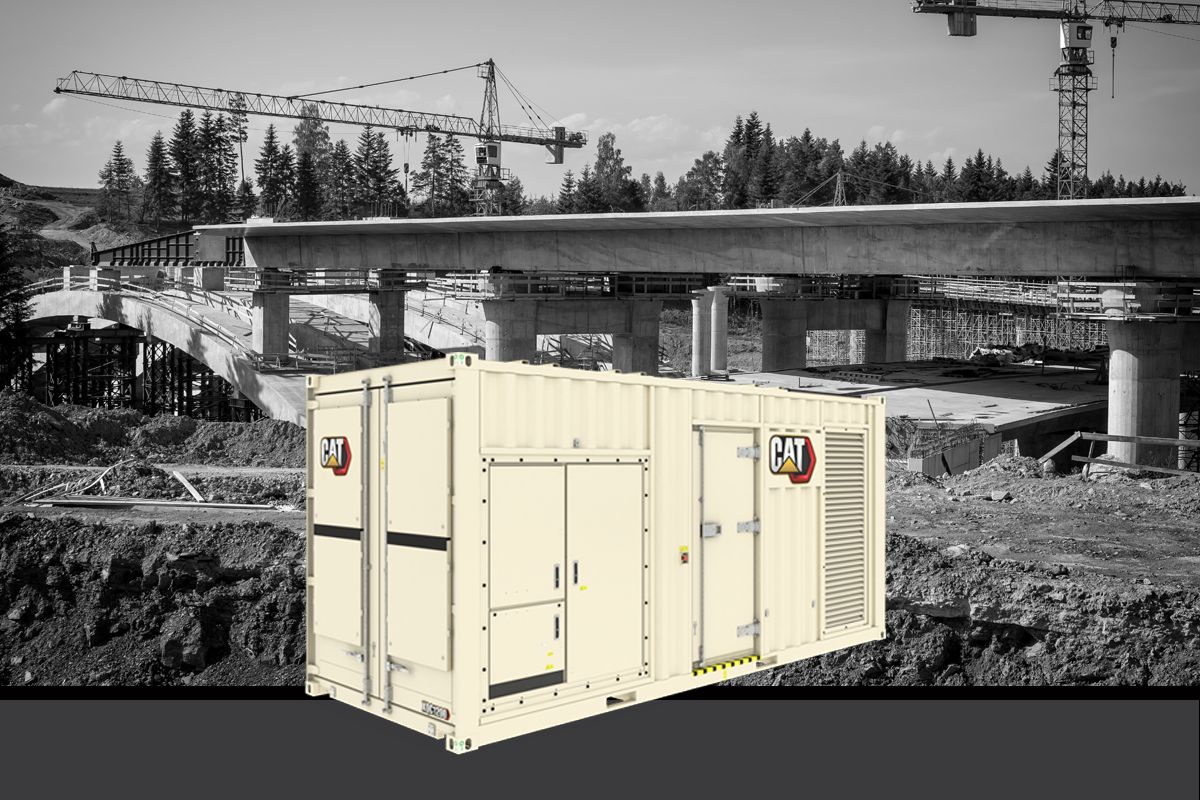

XQC1200

Mobile Generator Sets

This rental generator set extends the Caterpillar line of rental power options improving efficiency and reduced owning and operating costs. The XQC1200 is equipped with an enhanced control system, designed to reduce installation and startup time. It is configured to switch between 50 and 60Hz ratings at the press of a button. The control system features plant control programming and simulation, allowing complete system testing prior to generator set startup. Advanced product autonomy and monitoring capabilities reduce on-site manpower support requirements, minimize operator exposure to hazards, and permit site performance and maintenance data to be viewed, archived, and analyzed conveniently. Ideal in a stand-alone environment, combined with dozens of units in a power plant solution, or supporting utility systems worldwide.

Show
Rating 1150kW (1438 kVA) Continuous
Frequency 50/60 Hz
Voltage 230 - 480 V
IPP Overload 50Hz 1205 ekW (1506 kVA)
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
XQC1200
Request A Quote

OVERVIEW

1150 ekW Mobile Diesel Generator Set

FEATURES & BENEFITS

Rental Ready

Extensive range of rental ready features to meet job requirements and applications. Read more

Fuel/Emissions Strategy

Low BSFC and Low Emissions* ratings, switchable via Cat Electronic Technician (ET) * Does not conform to EPA/EU emissions standards Read more

Reliable, Fuel Efficient Cat Diesel Engine

The compact, four-cycle Cat 3512C turbocharged-aftercooled (SCAC) diesel engine provides proven durability and dependability Best-in-class fuel economy Fuel system operat... Read more

Cat EMCP Control Panel

EMCP 4.3 control panel offers engine and generator monitoring and protection On-Package Auto Paralleling Controls AGC-4 provides paralleling, load sharing, VFD control, a... Read more

Cat Generator

Cat SR500 generator designed to match the performance and output characteristics of the Cat Gas engine. Class H insulation operating at Class F temperature for extended... Read more

Cooling System

Provides 40°C (104F) ambient capability at 50 Hz, or 42°C (108F) capability at 60 Hz at the IPP Rating at 750m (2,460 ft) above sea level Variable frequency fan drive wit... Read more

Sound Attenuated Container

Meets 83 dB(A) (50 Hz) / 85 dBA (60 Hz) at 7m (23 ft) 20' ISO high cube container, 9-high stack CSC certified Service and Personnel doors Externally-accessible controls Read more

Cat Connect

Remote monitoring for fleet management and asset tracking. Read more

Reduced Environmental Impact

110% spill containment of onboard engine fluids Positive crankcase fumes ventilation Read more

SPECIFICATIONS FOR XQC1200

Collapse All
Generator Set
Rating 1150kW (1438 kVA) Continuous
Frequency 50/60 Hz
Voltage 230 - 480 V
IPP Overload 50Hz 1205 ekW (1506 kVA)
IPP Rated 60Hz 1260 ekW (1575 kVA)
IPP Overload 60Hz 1330kW; (1662KVA)
Engine
Engine Cat 3512C
Fuel Diesel
Dimensions
Weight - Without Chassis, With Fuel, Lube Oil and Coolant 21518 kg
Width - Without Chassis 2438 mm
Height - Without Chassis 2896 mm
Length - Without Chassis 6100 mm
