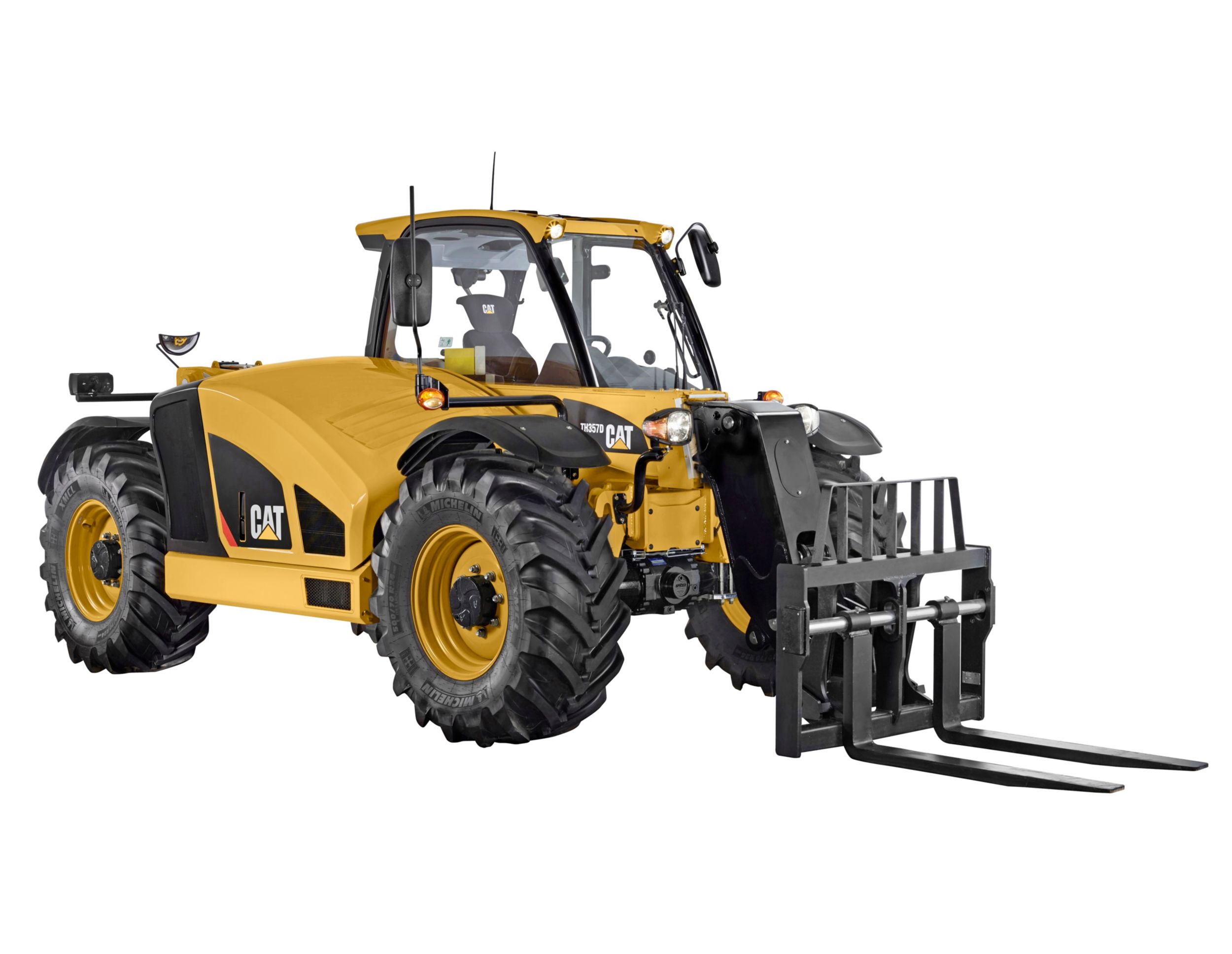

TH357D Ag Handler

Telehandlers

Show
Engine Model Cat® C4.4 ACERT™
Operating Weight - With Carriage and Forks* 7955 kg
Rated Load Capacity 3500 kg
Maximum Lift Height 7 m
Availability Contact Dealer
Request A Quote Rent a Machine
TH357D Ag Handler
Request A Quote

OVERVIEW

CONFIGURED FOR SUCCESS

FEATURES & BENEFITS

Engine Options

Choose the right engine for you – two fuel efficient Cat® engines are available to suit a wide range of applications. Read more

Frame, Boom and Linkage

Designed for durability. Easy to access greasing points mean a long, trouble free life for the machine. A Z-bar linkage delivers powerful breakout forces and fast cycle t... Read more

Powerful Hydraulics

A variable displacement piston pump matched to a high performance flow sharing valve makes multi functioning easy. The load sensing system means excellent fuel economy, a... Read more

Cab

The cab is designed with the operator in mind with a multi function joystick and a comfortable working environment. The unique “Operator Preferences” feature allows the m... Read more

SPECIFICATIONS FOR TH357D Ag Handler

Collapse All
Engine
Engine Model Cat® C4.4 ACERT™
Weights
Operating Weight - With Carriage and Forks* 7955 kg
Note *Represents machine configuration of 74.5 kW (100 hp/bhp) engine on standard 15.5/80-24 16 ply tires.
Operating Specifications
Rated Load Capacity 3500 kg
Maximum Lift Height 7 m
Maximum Forward Reach 3.65 m
Capacity at Maximum Lift Height 2250 kg
Outside Turning Radius - Over Tires 3.85 m
Capacity at Maximum Forward Reach 1500 kg
Outside Turning Radius - Over Forks 3.95 m
Tires
Standard Mitas 15.5/80-24 16 ply
Option (1) Michelin 15.5 R25 XHA
Option (3) Michelin 500/70 R24 XMCL
Option (8) 13 × 24 Solid Tires
Option (5) Michelin 400/80 24 Power CL
Option (6) Michelin 460/70 R24 Bibload
Option (4) Michelin 440/80 24 Power CL
Option (7) Firestone Duraforce
Option (2) Michelin 460/70 R24 XMCL
Hydraulic System
System Type Load Sensing, Closed Center
Pump Type Variable Flow, Axial Piston
Maximum Pump Capacity 140 l/min
Auxiliary Hydraulic Flow - Boom Head - Continuous 95 l/min
Auxiliary Hydraulic Flow - Machine Rear 80 l/min
Auxiliary Hydraulic Pressure 245 bar
System Pressure 260 bar
Auxiliary Hydraulic Flow - Boom Head - Intermittent 95 l/min
Service Refill Capacities
Fuel Tank 148 l
Hydraulic Tank 120 l
Boom Performance
Boom Up 6.5 s
Boom Down 5.8 s
Tele In 5.5 s
Tele Out 5.5 s
Crowd Backward 3 s
Combined - Up and Out 10.2 s
Crowd Forward - Dump 3 s
Combined - Down and In 8.2 s
Braking System
Parking Brake Mechanically actuated on front axle service brakes
Service Brakes Boost assisted oil immersed multi disc on both axles
Axles
Front Axle High bias, planetary reduction hubs with limited slip differential
Rear Axle Open differential with planetary reduction hubs
Performance
Bucket Breakout Force 72 kN
Noise Levels - In Cab 74 dB(A)
Boom Breakout Force 50 kN
Towable Mass - Hydraulically Braked 12000 kg
Drawbar Pull - 92.6 kW/124 hp Engine 88 kN
Drawbar Pull - 83 kW/111 hp Engine 92 kN
Quick Coupler Rotation 152°
Noise Levels - External 106 dB(A)
Dimensions (Approximate)
Departure Angle 60°
Overhang 1000 mm
Overall Width - Standard Tires 2382 mm
Track 1988 mm
Overall Height - Standard Tires* 2475 mm
Maximum Fork Crowd Angle 24°
Ground Clearance 430 mm
Overall Length to Front of Carriage 5000 mm
Machine Length 5000 mm
Cab Width 900 mm
Wheel Base 3165 mm
Maximum Fork Dump Angle 128°
Engine - Standard
Maximum Torque 410 N·m
Emissions *Emits Equivalent to EU Stage IIIA.
Model* Cat C4.4 ACERT
Gross Power 74.5 kW (100 hp/bhp)
Transmission*
Reverse - 2 11.3 km/h
Forward - 5 25.4 km/h
Forward - 3 11.3 km/h
Note *Travel speed is subject to machine configuration.
Reverse - 1 5.8 km/h
Forward - 1 5.8 km/h
Reverse - 3 25.4 km/h
Forward - 6 40 km/h
Forward - 2 8.6 km/h
Forward - 4 16.7 km/h
Type 6 speed power shift
Electrical
Alternator Output 12V/150A
Battery 1 × 12V 1,000 CCA Battery
Engine - Option 1
Gross Power 96.5 kW (129 hp/bhp)
Maximum Torque 514 N·m
Emissions *Emits Equivalent to EU Stage IIIA.
Model* Cat C4.4 ACERT
