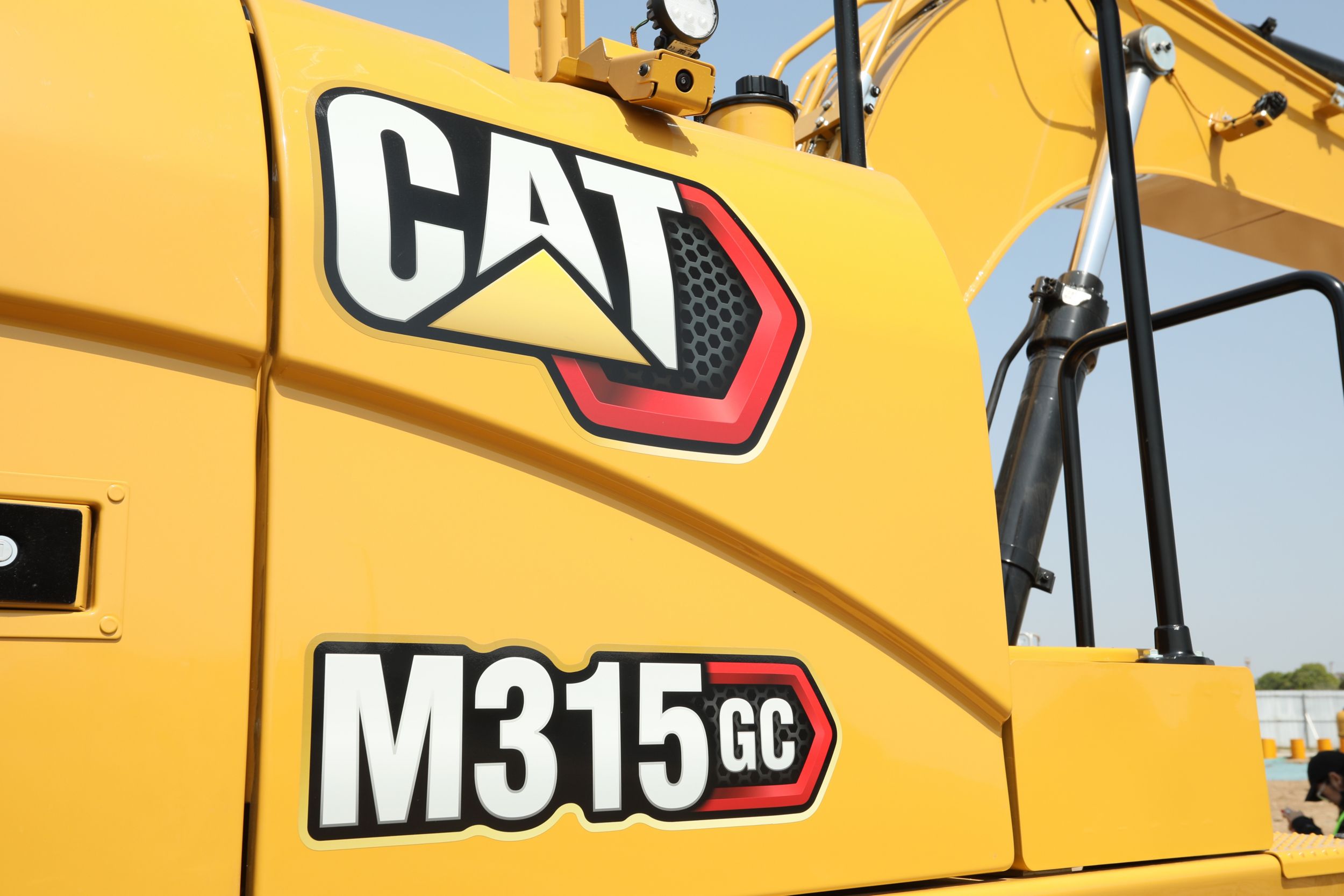

M315 GC

Wheel Excavators

The Cat M315 GC Wheeled Excavator increases your efficiency and productivity with more comfort in the cab and easy-to-use controls helping you get more work done every day. Reduced maintenance costs combined with lower fuel consumption put money back in your pocket.

Show
Operating Weight Maximum 14150 kg
Bucket GD 0.65 m³ (0.85 yd³)
Gross Power 110 kW
Engine Model Cat® C4.4
Availability Contact Dealer
Request A Quote Request Rental Quote
Download Brochure
M315 GC
Request A Quote

OVERVIEW

IMPROVED PERFORMANCE AND COSTS FOR DAILY APPLICATIONS

FEATURES & BENEFITS

Latest Features

    Cab Monitor Improvements     Continuously improved user interface allows for intuitive navigation, minimizing performance... Read more

Fuel Saving Performance Matched To The Job

Use up to 10% less fuel than the M315D2 to keep you moving and productive on the jobsite.Increased engine speed to achieve high travel and operating performance.Reduced f... Read more

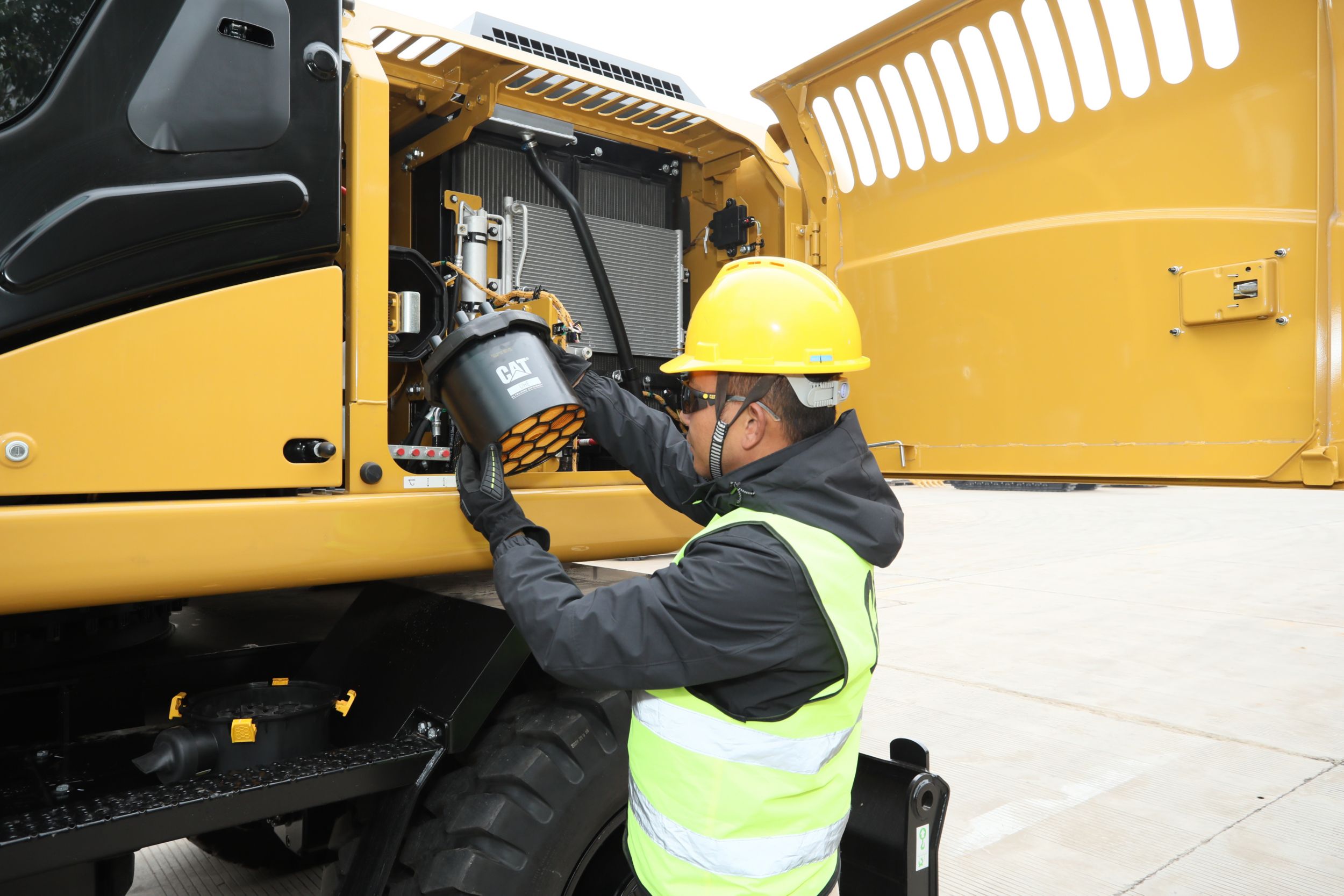

Lower Maintenance Costs

Expect up to 15% less maintenance costs than the M315D2.Quickly check and service your machine with daily maintenance points accessible from ground level.The new hydrauli... Read more

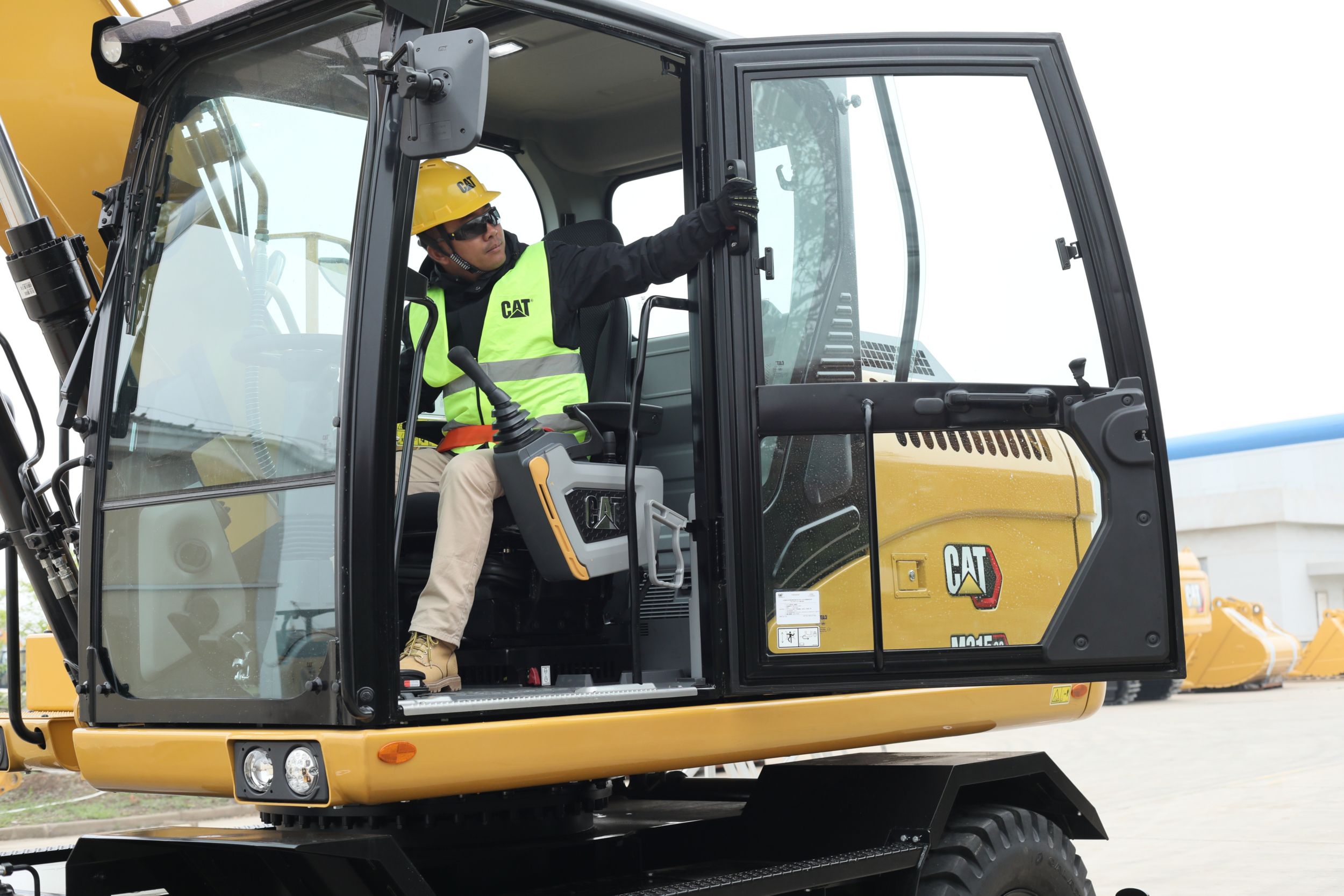

Work In Comfort In The All-New Cab

Increase operator productivity with an all-new, larger cab.Improved seat offering increased comfort and reduced operator fatigue.Get in and out of the cab easier using th... Read more

Simple To Operate

Start up the machine easily with the push-to-start button.Operate the wheeled excavator comfortably with easy-to-reach and intuitive controls.Navigate quickly on the stan... Read more

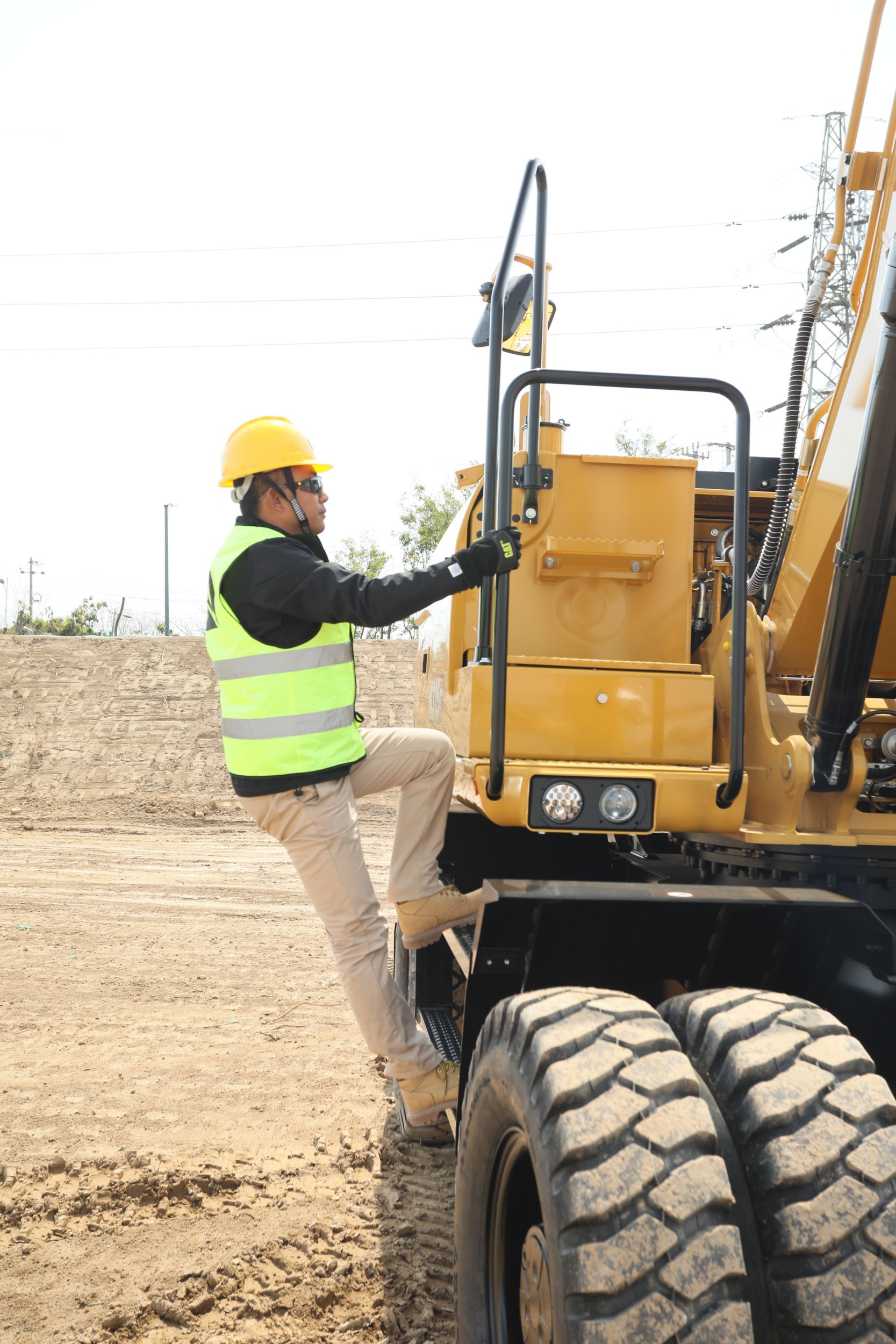

Safety Features

Easy and safe access to daily service points.Standard LED lights give you a better view of your jobsite.Enjoy better visibility into trenches, in each swing direction, an... Read more

Sustainability

    The Cat® C4.4 engine meets China Nonroad Stage IV emission standards.     Cat diesel engines are required to use UL... Read more

SPECIFICATIONS FOR M315 GC

Collapse All
Machine Weight
Operating Weight Maximum 14150 kg
Note (1) Operating weight includes full fuel tank, operator, GD bucket and dual pneumatic tires. Weight varies depending on configuration.
Note (2) Typical configurations include 2.2 m (7'3") stick and 2600 kg (5,732 lb) counterweight.
Working Ranges and Forces
Bucket GD 0.65 m³ (0.85 yd³)
Boom Type One-Piece Boom 4.4 m (14'5")
Stick 2.2 m (7'3")
Cutting Height 8392 mm
Maximum Loading Height 5892 mm
Maximum Digging Depth 4624 mm
Vertical Wall Digging Depth 2962 mm
Maximum Reach at Ground Line 7739 mm
Note (1) Range values are with dual pneumatic tires (10.00-20).<br> All values are with Pin Grabber Quick Coupler.
Maximum Vertical Wall Digging Depth 3777 mm
Engine
Gross Power 110 kW
Engine Model Cat® C4.4
Net Power 104 kW
Bore 105 mm
Stroke 127 mm
Displacement 4.4 l
Number of Cylinders 4
Note Meets China Nonroad Stage IV emission standards.
Note (1) Net power advertised is the power available at the flywheel when engine is equipped with air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Note (3) Rated speed 2,000 rpm.
Note (4) Advertised power is tested per the specified standard in effect at the time of manufacture.
Engine Power - ISO 14396 110 kW
Net Power - ISO 9249 104 kW
Emissions Meets China Nonroad Stage IV emission standards.
Transmission
Forward/Reverse - 1st Gear 9 km/h
Forward/Reverse - 2nd Gear 37 km/h
Creeper Speed - 1st Gear 6 km/h
Creeper Speed - 2nd Gear 15 km/h
Drawbar Pull 73 kN
Maximum Gradeability at (14 000 kg/30,865 lb) is 60%
Service Refill Capacities
Fuel Tank - Total Capacity 250 l
Cooling System 23 l
Engine Oil 15 l
Hydraulic Tank 98 l
Hydraulic System - Including Tank 230 l
Rear Axle - Housing (Differential) 11 l
Front Steering Axle - Differential 9 l
Final Drive 2 l
Powershift Transmission 3 l
Swing Mechanism
Maximum Swing Speed 11.5 r/min
Maximum Swing Torque 34 kN·m
Hydraulic System
Maximum Pressure - Implement Circuit - Normal 35000 kPa
Maximum Pressure - Implement Circuit - Travel Circuit 35000 kPa
Maximum Pressure - Auxiliary Circuit - Swing Mechanism 25900 kPa
Main System - Maximum Flow - Implement 245 l/min
Air Conditioning System
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant, which has a CO2 equivalent of 1.216 metric tonnes.
Dimensions
Boom One-Piece Boom 4.4 m (14'5")
Stick 2.2 m (7'3")
Shipping Length 7920 mm
Support Point 2414 mm
Tail Swing Radius 2190 mm
Counterweight Clearance 1264 mm
Shipping Height - Top of Cab 3135 mm
Shipping Height with Falling Object Guard 3250 mm
Machine Width with Blade with 10.00-20 tires 2550 mm
Upperframe Width 2490 mm
Height in Roading Position 3675 mm
Bucket GD 0.65 m³ (0.85 yd³)
Drive
Maximum Travel Speed 37 km/h
