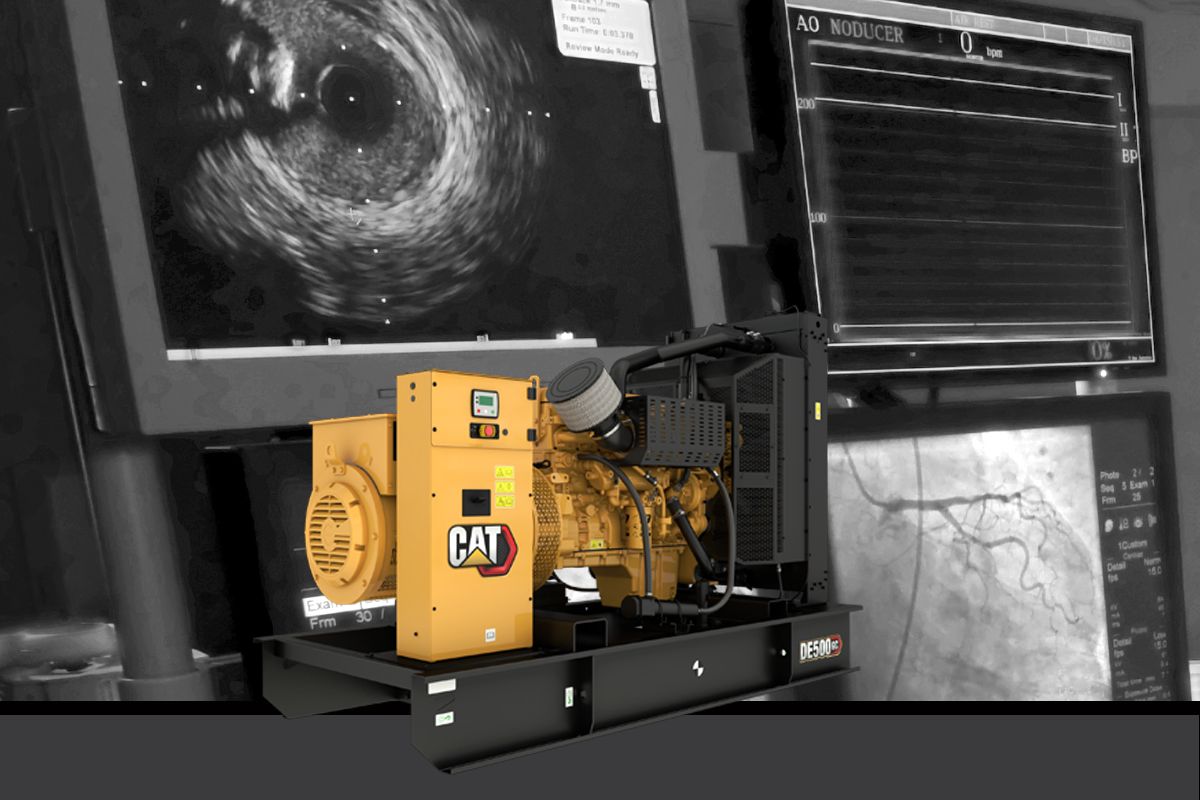

DE500 GC

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Maximum Rating 500 kVA
Minimum Rating 500 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
DE500 GC
Request A Quote

OVERVIEW

500 kVA Diesel Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to ISO 8528-5 steady state a... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

A-Frame Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

GCCP 1.1 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 55°C (131°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

CE Certification AvailableCIS Certification Available Read more

One Safe Source

Components used in the generator set are selected based on seamless design integration to provide the optimum performanceThe generator set is fully assembled at a Caterpi... Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR DE500 GC

Collapse All
Generator Set Specifications
Maximum Rating 500 kVA
Minimum Rating 500 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C13 In-line 6, 4-cycle diesel
Bore 130 mm
Stroke 157 mm
Displacement 12.5 l
Compression Ratio 15.8:1
Aspiration Turbocharged Air-to-Air Aftercooled
Fuel System EUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 3100 mm
Width - Maximum 1338 mm
Height - Maximum 2168 mm
Dry Weight - Genset (maximum) 2924 kg
