DE110 GC (60 Hz)

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Maximum Rating 100 ekW
Minimum Rating 100 ekW
Emissions/Fuel Strategy Non Regulated
Voltage 220 to 480 Volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
DE110 GC (60 Hz)
Request A Quote

OVERVIEW

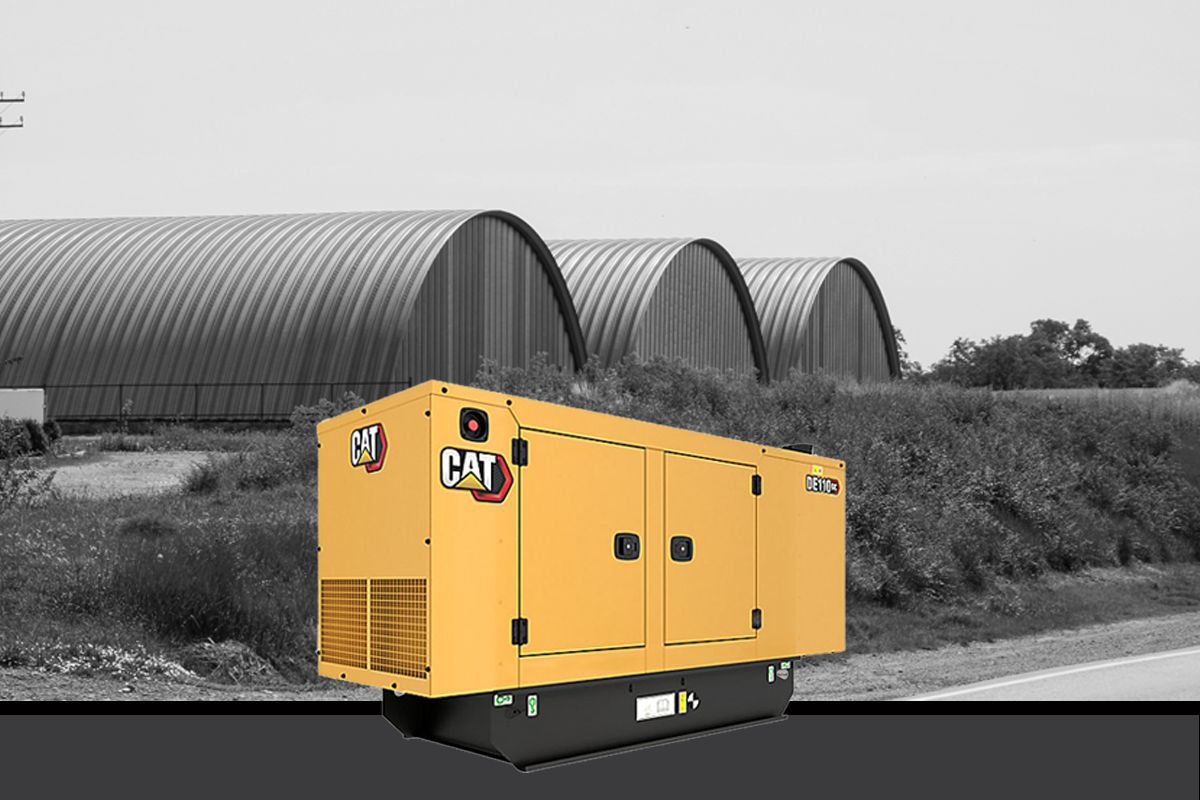

100 ekW Diesel Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to ISO 8528-5 steady state a... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

A-Frame Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

GCCP 1.1 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 55°C (131°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

CE Certification AvailableCIS Certification Available Read more

One Safe Source

Components used in the generator set are selected based on seamless design integration to provide the optimum performanceThe generator set is fully assembled at a Caterpi... Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR DE110 GC (60 Hz)

Collapse All
Generator Set Specifications
Maximum Rating 100 ekW
Minimum Rating 100 ekW
Emissions/Fuel Strategy Non Regulated
Voltage 220 to 480 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C4.4, In-line 4, 4-cycle diesel
Bore 105 mm
Stroke 127 mm
Displacement 4.4 l
Compression Ratio 18.23:1
Aspiration Turbocharged Air To Air Charge Cooled
Fuel System Inline
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 2745 mm
Width - Maximum 999 mm
Height - Maximum 1476 mm
Dry Weight - Genset (maximum) 1330 kg
