C3.3 | DE75AE0

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show
Maximum Rating 60 ekW
Minimum Rating 55.0 ekW
Emissions/Fuel Strategy Non-Certified Emissions
Voltage 220 to 380 Volts
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
C3.3 | DE75AE0
Request A Quote

OVERVIEW

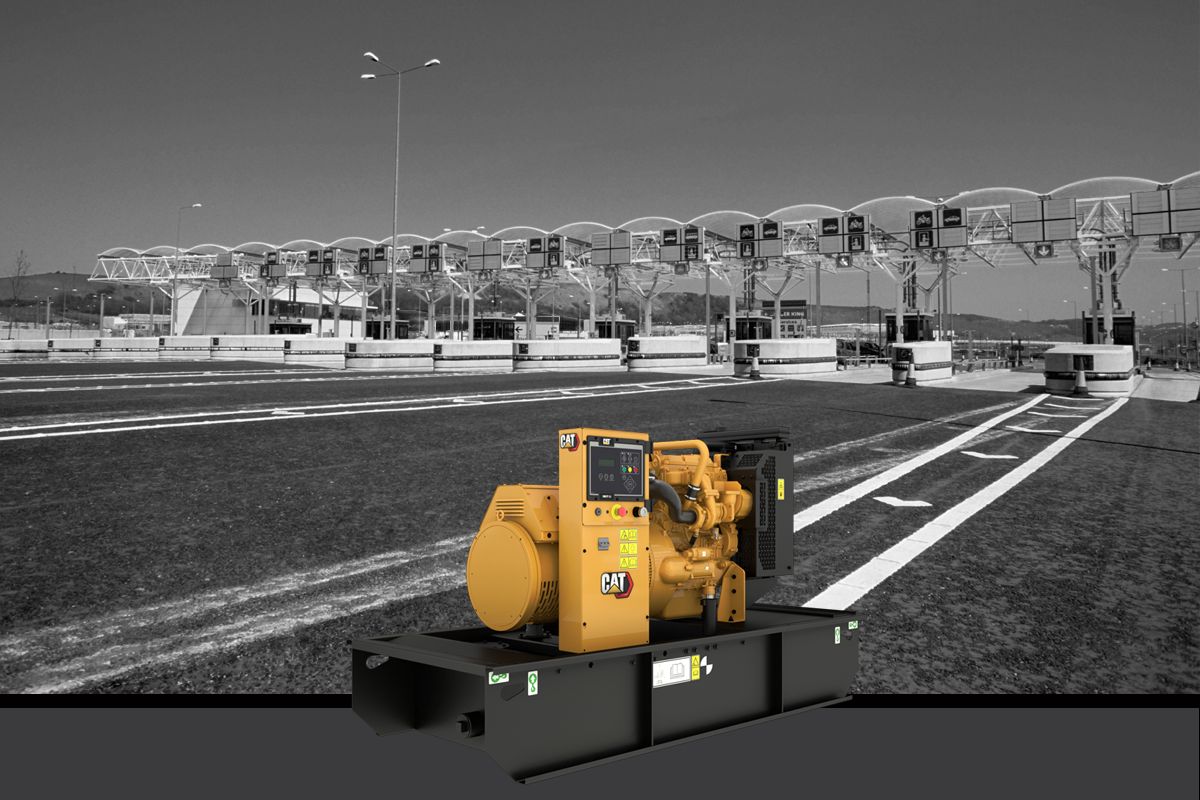

DE75AE0 | 60 ekW Diesel Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to ISO 8528-3 steady state a... Read more

Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and excellent fuel econ... Read more

GTA Frame Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRobust Class H in... Read more

EMCP Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming for specific custome... Read more

Cooling System

Designed to operate in standard ambient temperatures up to 55°C (131°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

Fully prototype tested with certified torsional vibration analysis available Read more

One Safe Source

Components used in the generator set are selected based on seamless design integration to provide the optimum performanceThe generator set is fully assembled at a Caterpi... Read more

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including maintenance and repair ag... Read more

SPECIFICATIONS FOR C3.3 | DE75AE0

Collapse All
Generator Set Specifications
Maximum Rating 60 ekW
Minimum Rating 55.0 ekW
Emissions/Fuel Strategy Non-Certified Emissions
Voltage 220 to 380 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby, Prime
Engine Specifications
Engine Model Cat® C3.3
Bore 105 mm
Stroke 127 mm
Displacement 3.3 l
Compression Ratio 17.25:1
Aspiration Turbocharged
Fuel System Common Rail
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 1680 mm
Width - Maximum 29.9 in
Height - Maximum 1333 mm
Dry Weight - Genset (maximum) 811 kg
