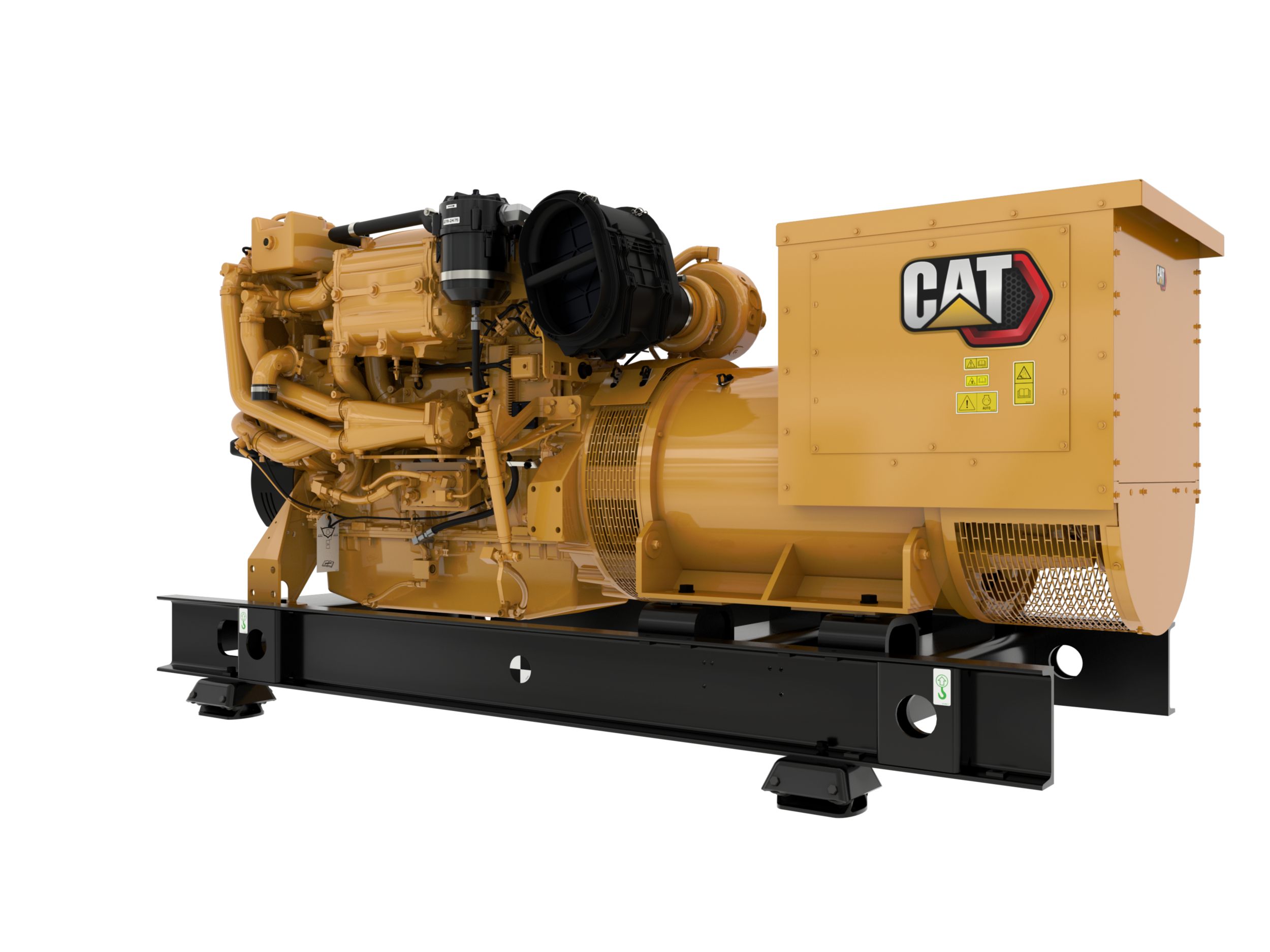

C32 Tier 3 / IMO II

Marine Generator Sets

Show
Minimum Rating 219 ekW
Maximum Rating 940 ekW
Frequency 60hz
Rated Engine Speed 1800 rpm
Availability Contact Dealer
Request A Quote Rent a Machine
Download Brochure
C32 Tier 3 / IMO II
Request A Quote

FEATURES & BENEFITS

SCAC

Separate-circuit aftercooling – no sea water in aftercooler Read more

Fuel System

Reliable electronic controlled unit injector fuel system. Enhanced control of fuel injection optimized through crank timing and A4 ECM technology. Advanced combustion tec... Read more

Power Reserve

Industry leading power reserve Read more

Certifications

Wide range of available Marine Society certifications Read more

Warranty

Industry-leading warranty coverage for factory packaged components Read more

Service

Global dealer network for service in any location Read more

SPECIFICATIONS FOR C32 Tier 3 / IMO II

Collapse All
Generator Set Specifications
Minimum Rating 219 ekW
Maximum Rating 940 ekW
Frequency 60hz
Engine Specifications
Rated Engine Speed 1800 rpm
Configuration Vee-12, 4-stroke-Cycle-Diesel
Aspiration Turbocharged-aftercooled aspiration
Bore 145 mm
Stroke 162 mm
Displacement 32.1 l
Governor Electronic (A4 ECM)
Emissions U.S. EPA Tier 3 / IMO II emissions certified
Generator SR5 - Form Wound
Refill Capacity Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Cooling Heat exchanger, keel or radiator cooled
Oil Change Interval 750 hrs
Generator Set Dimensions
Length 167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)
Width 59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)
Height 70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)
Package Dry Weight 15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)
