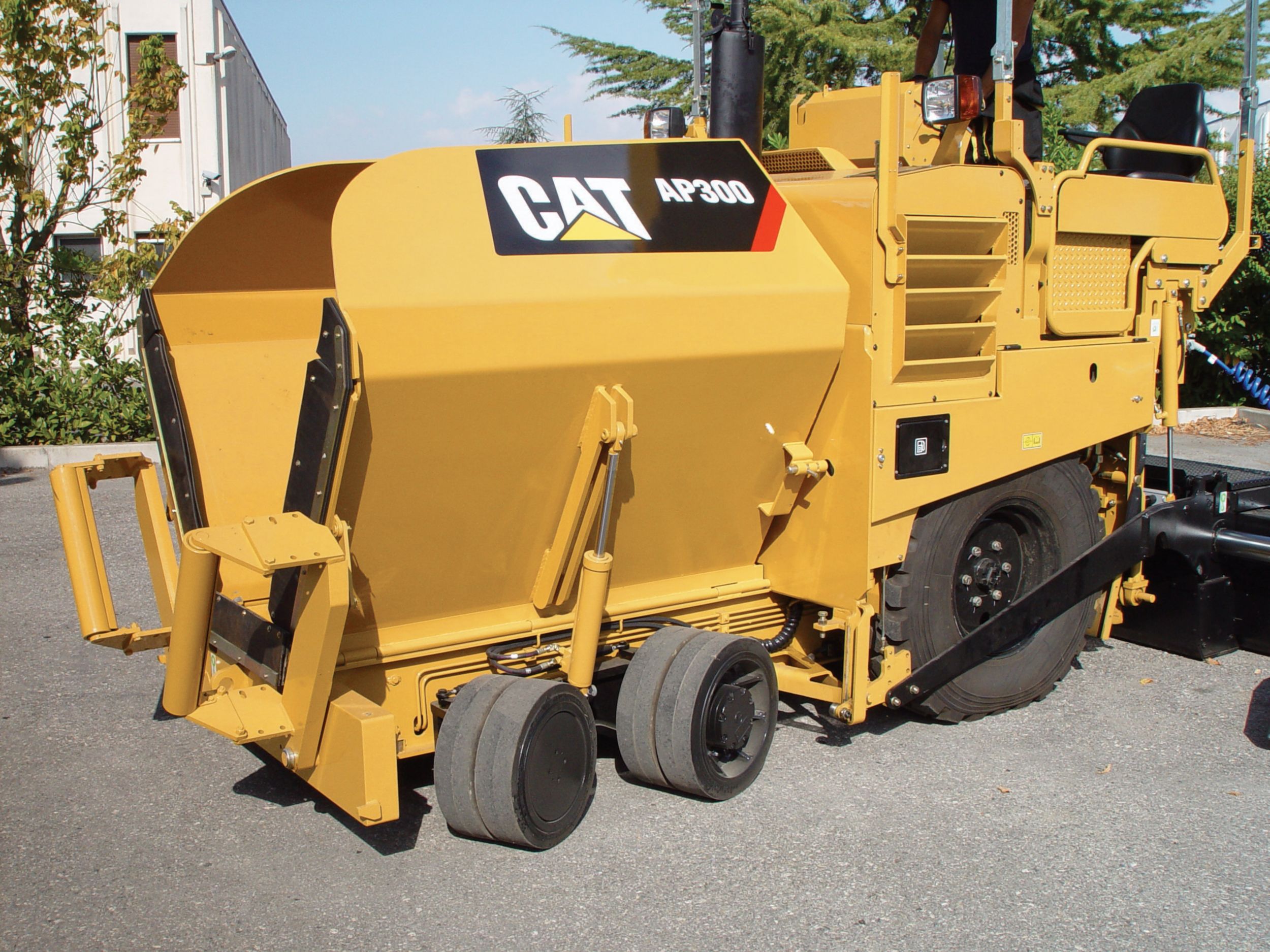

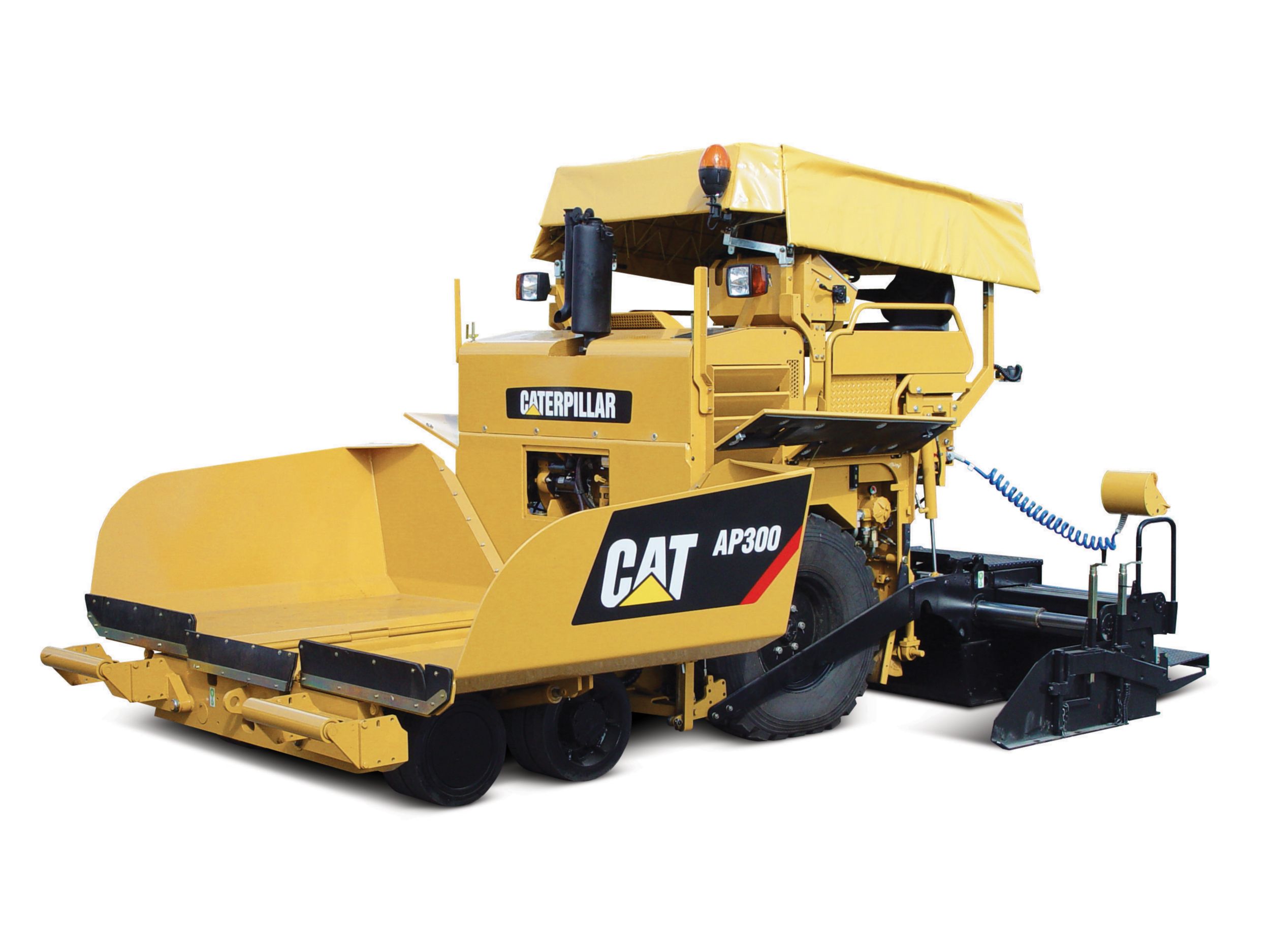

AP300

Wheel Asphalt Pavers

Cat® Pavers continue to lead the paving industry and meet your demanding job requirements. Many easy-to-use features and technologies have been developed in order to guide your crew in producing high quality mats time and time again.

Show
Maximum Operating Weight 7300 kg
Standard Paving Width 1.70-3.20 m (5.58-10.50 ft)
Truck Dump Height 570 mm
Paving Width Maximum 4 m
Availability Contact Dealer
Request A Quote Rent a Machine
AP300
Request A Quote

FEATURES & BENEFITS

Cat® 3054C DINA Engine

The four cylinder, liquid-cooled diesel engine incorporates the proven technology from medium and large bore engines providing quiet performance, high reliability and eas... Read more

Hydrostatic Drive System

A closed-loop hydrostatic propel system provides accurate control of propulsion. The propel pump provides optimum displacement enhancing servicing. The optional front whe... Read more

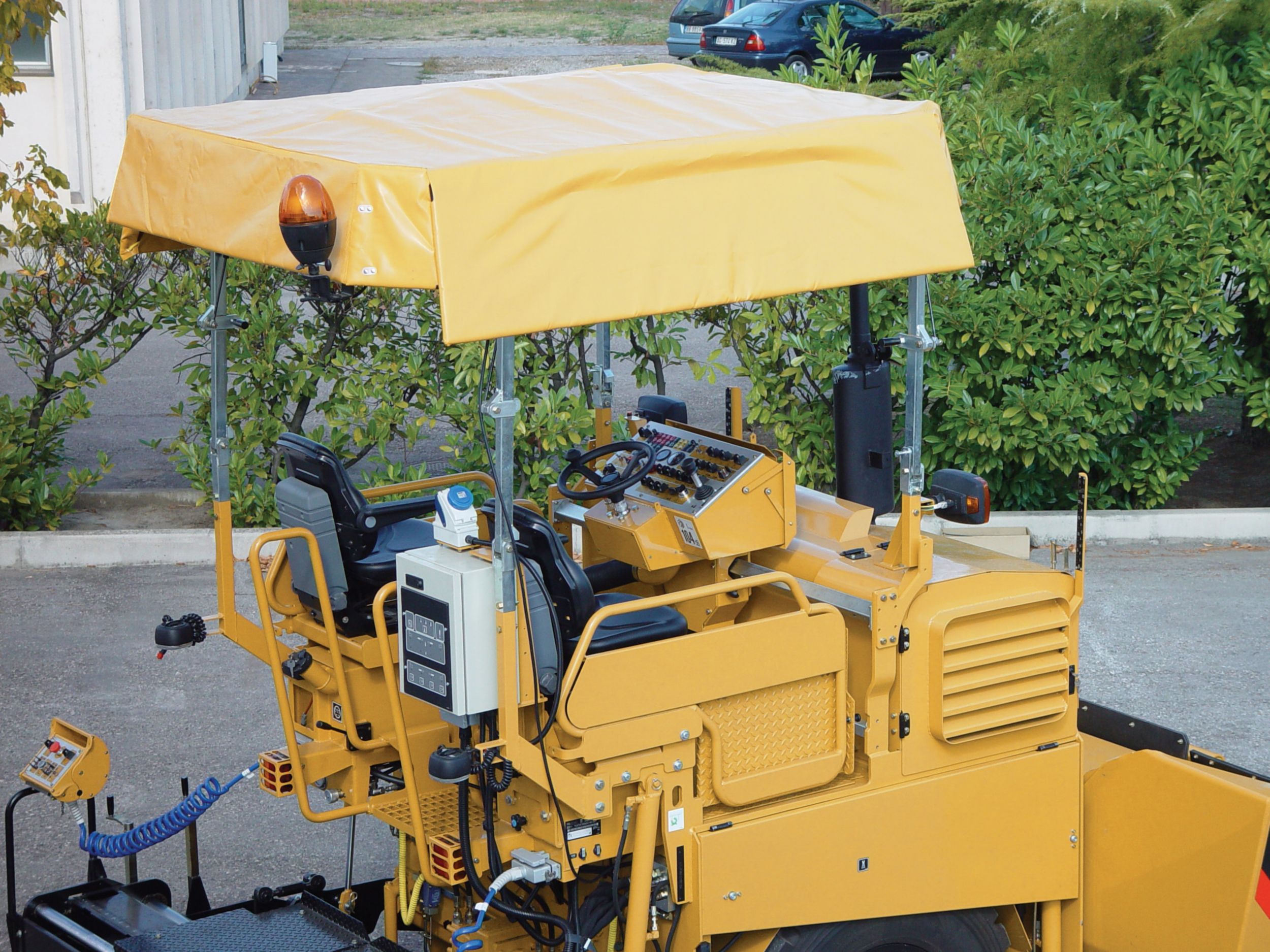

Operator's Station

The AP300 includes dual operator's station with sliding control console. The operator's stations can be positioned beyond the machine frame for greater visibility when pr... Read more

Suspension System

The AP300 is equipped with two large tread drive tyres and four front solid-rubber steering bogie wheels providing optimum ground contact and smooth operation. Read more

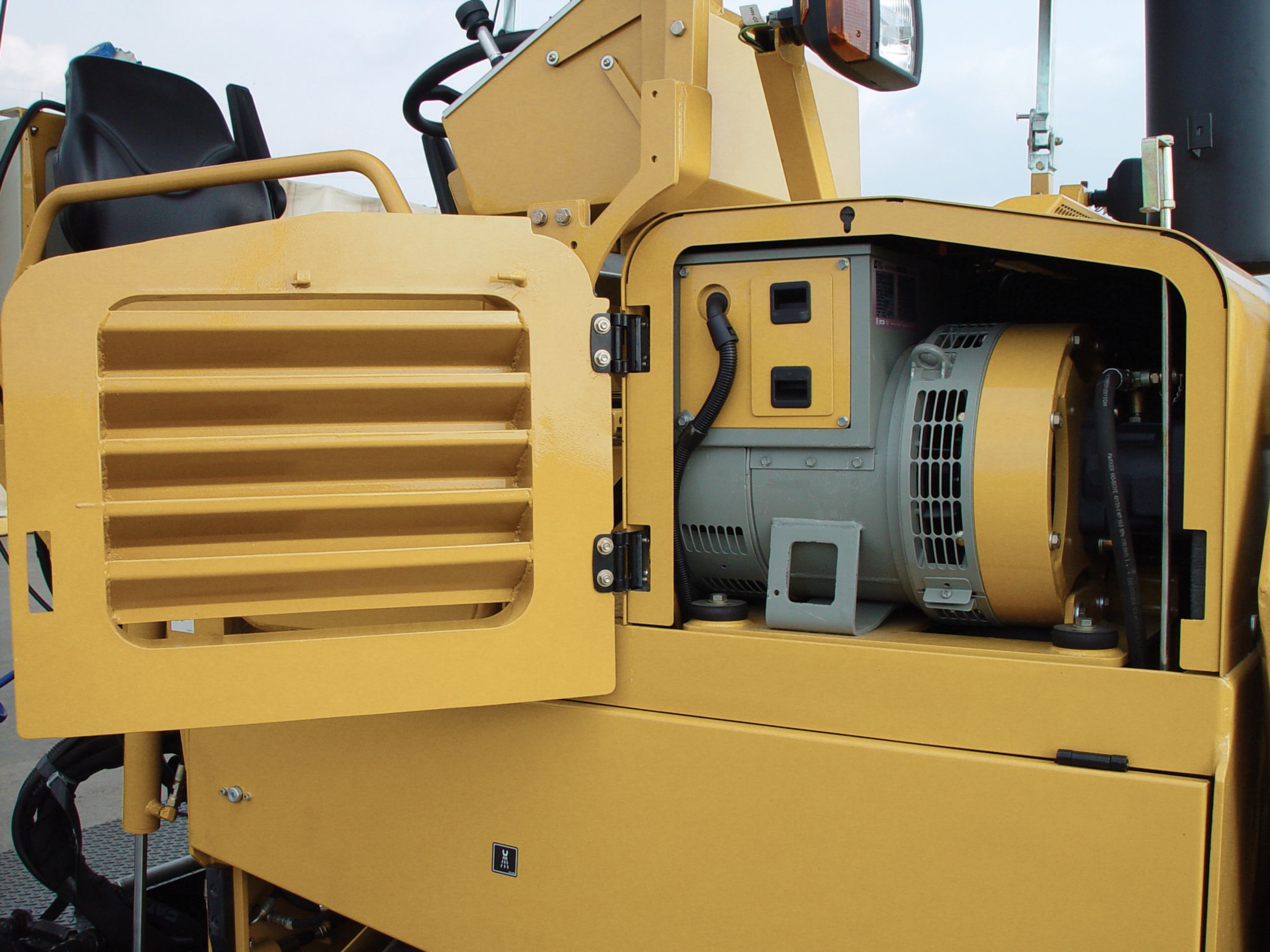

Generator System

The optional generator provides continuous and simple control in paving operations for ground crew usage. This integrated generator supplies simultaneous power to the ele... Read more

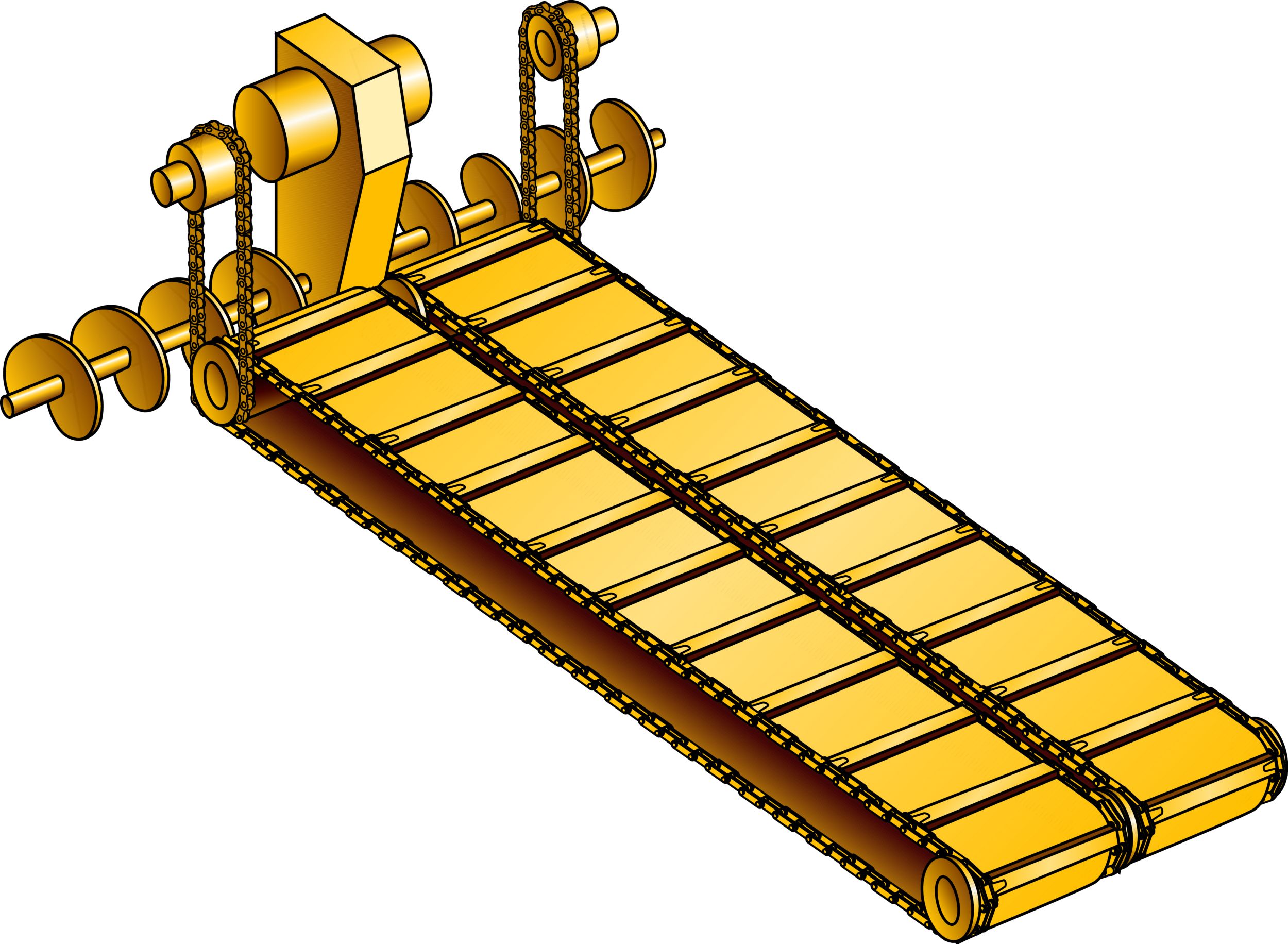

Material Handling System

The AP300 provides precise mix delivery with minimal operator monitoring. The independent operation of the augers and conveyors reduces component wear and minimizes the p... Read more

Serviceability

The AP300 ensures excellent access to all machine parts requiring scheduled maintenance. Large service doors ensure quick and easy inspection of the main parts. The low t... Read more

Screed

The AP300 is available with the AS3173 hydraulic power extendible asphalt screed, available with variable frequency vibrating system and with LPG or electric heating syst... Read more

SPECIFICATIONS FOR AP300

Collapse All
Weights
Maximum Operating Weight 7300 kg
Operating Specifications
Standard Paving Width 1.70-3.20 m (5.58-10.50 ft)
Truck Dump Height 570 mm
Paving Width Maximum 4 m
Inside Turn Radius 3 m
Paving Width Minimum 0.65 m
Maximum Travel Speed 16 km/h
Hopper Capacity 3.8 m³
Maximum Paving Speed - With Tamper Bar Screed 85 m/min
Truck Entry Width 3.18 m
Engine
Gross Power 52 kW
Engine Model Cat 3054C DINA
Dimensions
Transport Width - Hoppers Raised - Screed End Gates Attached 1.73 m
Transport Width - Hoppers Raised - Screed End Gates Removed 1.67 m
Maximum Height 3.34 m
Transport Height 2.96 m
Tractor Operating Width 3.2 m
Length - With Push Roller and Largest Screed 4.82 m
Service Refill Capacities
Fuel Tank Capacity 79.5 l
