924K

Small Wheel Loaders

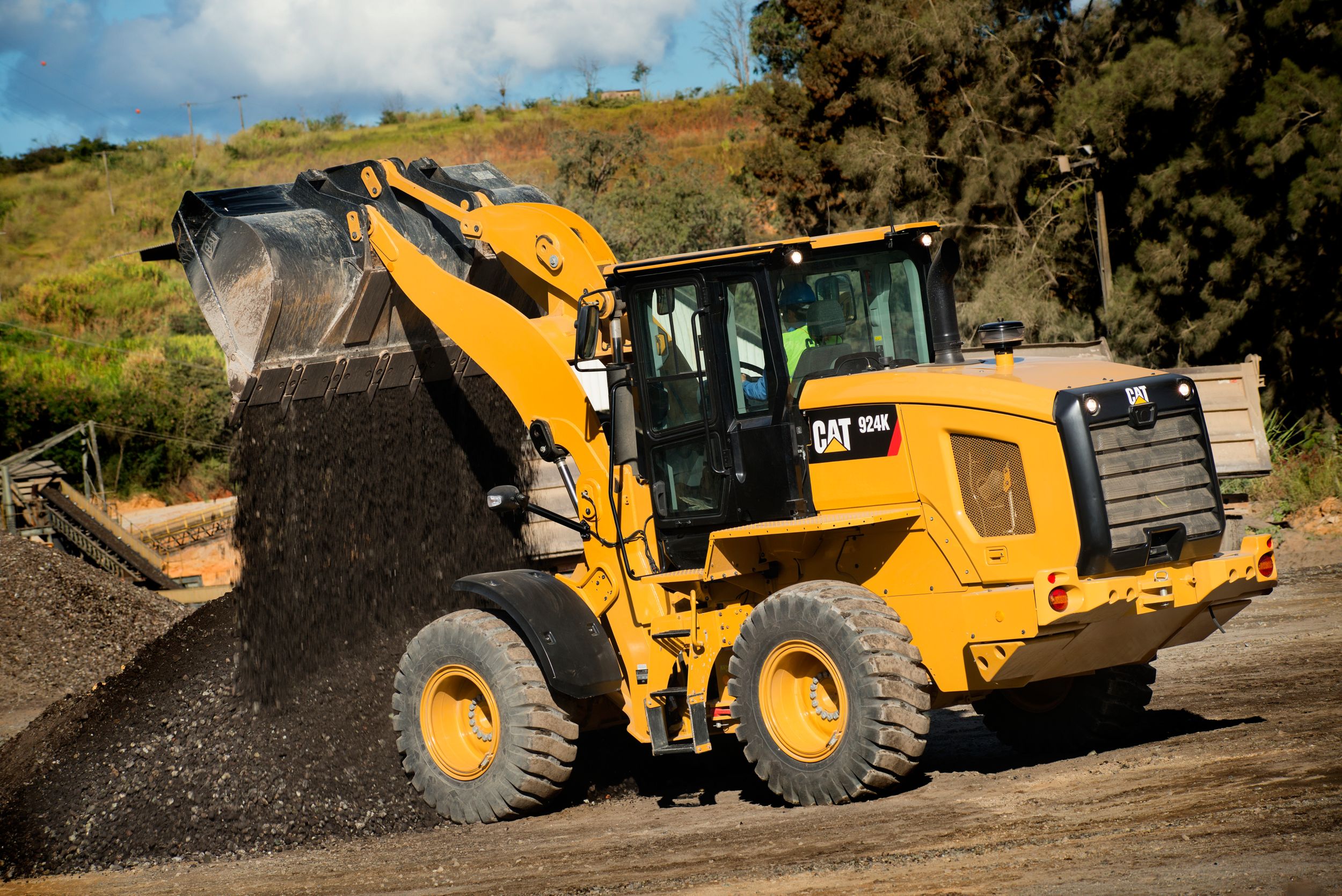

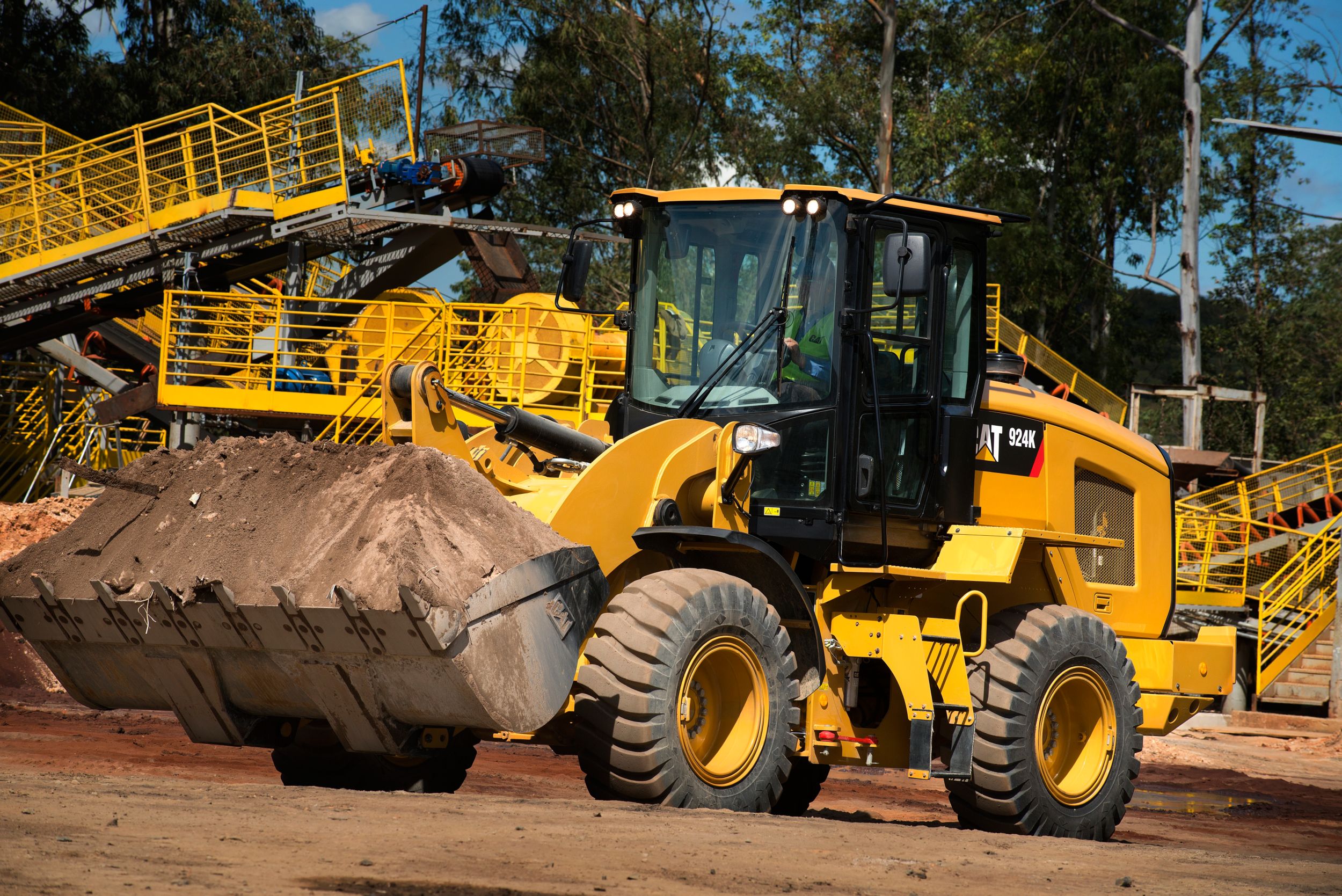

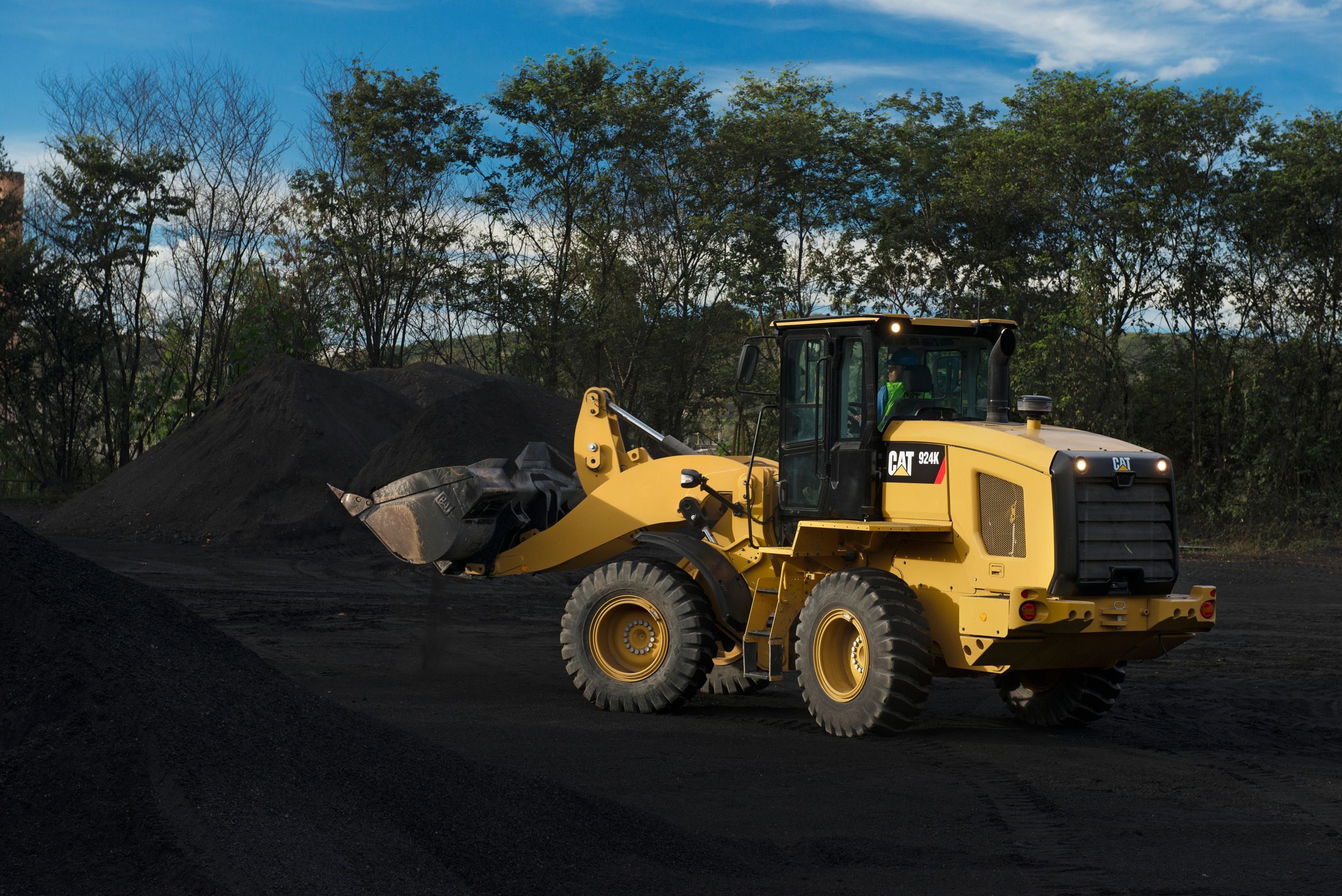

The Cat® 924K Wheel Loader sets a new standard for productivity, fuel efficiency and comfort. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day long. The new optimized Z-bar loader linkage delivers the performance and breakout forces of a traditional Z-bar linkage with the parallelism and load handling capability of a tool carrier. Experience the new industry benchmark.

Show

SAE J1349 101 kW

ISO 9249 (1997) 102 kW

EEC 80/1269 102 kW

Bore 105 mm

Availability

Ready Stock Estimated delivery : 2 - 3 weeks

Request A Quote Rent a Machine

Download Brochure

924K

Request A Quote

FEATURES & BENEFITS

Parallel Lift Loader Linkage

Optimized Z-bar LinkageThe new optimized patent-pending Z-bar linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great perf... Read more

Industry Leading Operator Station

Best Seat on the Job SiteEnjoy all day comfort in the spacious new K Series cab: Extremely low sound levels. Superior visibility to the work tool due to wide curved wind... Read more

Power Train

Intelligent Power ManagementThe Caterpillar exclusive Intelligent Power Management system actively monitors operator input and power availability to keep the machine work... Read more

Hydraulics

Load-Sensing Hydraulic SystemK Series machines feature a new electro-hydraulic control system that is governed by the Intelligent Power Management system. The load-sensin... Read more

Work Tools

The Right Tool for the JobAn extensive range of work tools and bucket styles are available to make your Cat Wheel Loader one of the most versatile machines on the job sit... Read more

Options

Configure the Machine the Way You Want ItA variety of options are available on the Cat K Series Wheel Loaders to suit your specific application needs. See your Cat dealer... Read more

Serviceability

Easy Service AccessAll service points are accessible from ground level. Three large service doors can be opened and closed in any order to give full access to filters and... Read more

Customer Support

Renowned Cat Dealer SupportYour Cat dealer is ready to help you every step of the way. From new or used machine sales, to rental or rebuild options, your Cat dealer can p... Read more

SPECIFICATIONS FOR 924K

Collapse All

Engine

SAE J1349	101 kW
ISO 9249 (1997)	102 kW
EEC 80/1269	102 kW
Bore	105 mm
Stroke	135 mm
Displacement	7 l
Rated Net Power	101 kW
Model	Cat® C7.1 ACERT™
Net Torque	700 N·m

Buckets

Bucket Capacities

1.7 m3 - 5.0 m3 2.2 yd3 - 6.5 yd3

Weights

Operating Weight

11550 kg

Steering

Steering Articulation	40 °
Steering Angle - Each Direction	40 °
Steering Cylinder, Two, Bore	70 mm
Maximum Working Pressure	24130 kPa

Loader Hydraulic System

Hydraulic Cycle Time	9.5 s
Pump Flow - Implement Pump	150 l/min
Maximum Working Pressure	2600 kPa
Hydraulic Cycle Time	9.5 Seconds
Raise	5.4 s
Dump	1.5 s
Lower, Empty, Float Down	2.6 s
Total	9.6 s
Bore (1)	110 mm
Bore (2)	130 mm
Stroke (1)	728 mm
Stroke (2)	516 mm

Service Refill Capacities

Fuel Tank	195 l
Cooling System	32 l
Crankcase	19.5 l
Transmission	8.5 l
Front	21 l
Rear	21 l
Hydraulic System - Including Tank	160 l
Hydraulic Tank	90 l

Transmission

Standard Transmission Maximum Travel Speeds	40 km/h
Forward - 1	13 km/h
2	13 km/h
3	27 km/h
4	40 km/h
Reverse - 1	13 km/h

Tires

Size	20.5 R25 Radial (L-3)

Cab

ROPS	SAE J1040 MAY94, ISO 3471-1994
FOPS	SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II

Dimensions

Width - Over Tires	2540 mm
Height - Top of ROPS/FOPS	3340 mm
Height - Center of Axle	685 mm
Ground Clearance	397 mm
Overall Length	7374 mm
Length - Rear Axle to Bumper	1986 mm
Centerline of Front Axle to Hitch	1500 mm
Wheel Base Length	3000 mm
Dump Clearance at Maximum Lift - 45°	2857 mm
Bucket Pin Height - Maximum Lift	3853 mm
Overall Height - Bucket Raised	5076 mm
Reach at Maximum Lift and 45° Dump	950 mm
Rack Back Angle - Maximum Lift	53 °
Dump Angle at Maximum Lift	50 °
Rack Back Angle - Carry	43 °
Carry Height	447 mm
Digging Depth	100 mm

Operating Specifications

Static Tipping Load - Full Turn	7488 kg
Reach - Full Lift and 45° Dump	1016 mm
Dump Clearance at Full Lift and 45° Dump Angle	2772 mm
Articulation Angle	40 °
