826H

Landfill Compactors

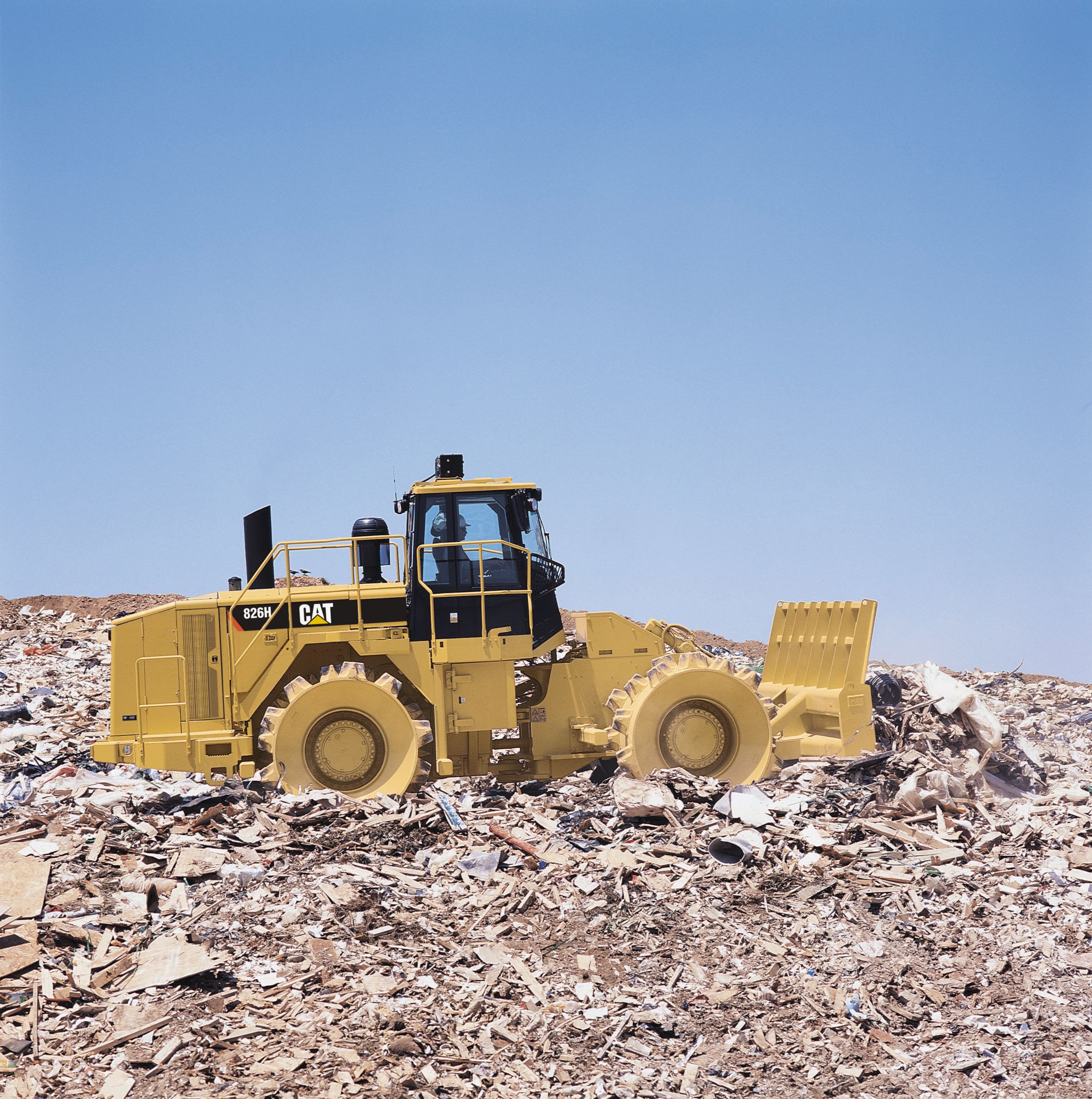

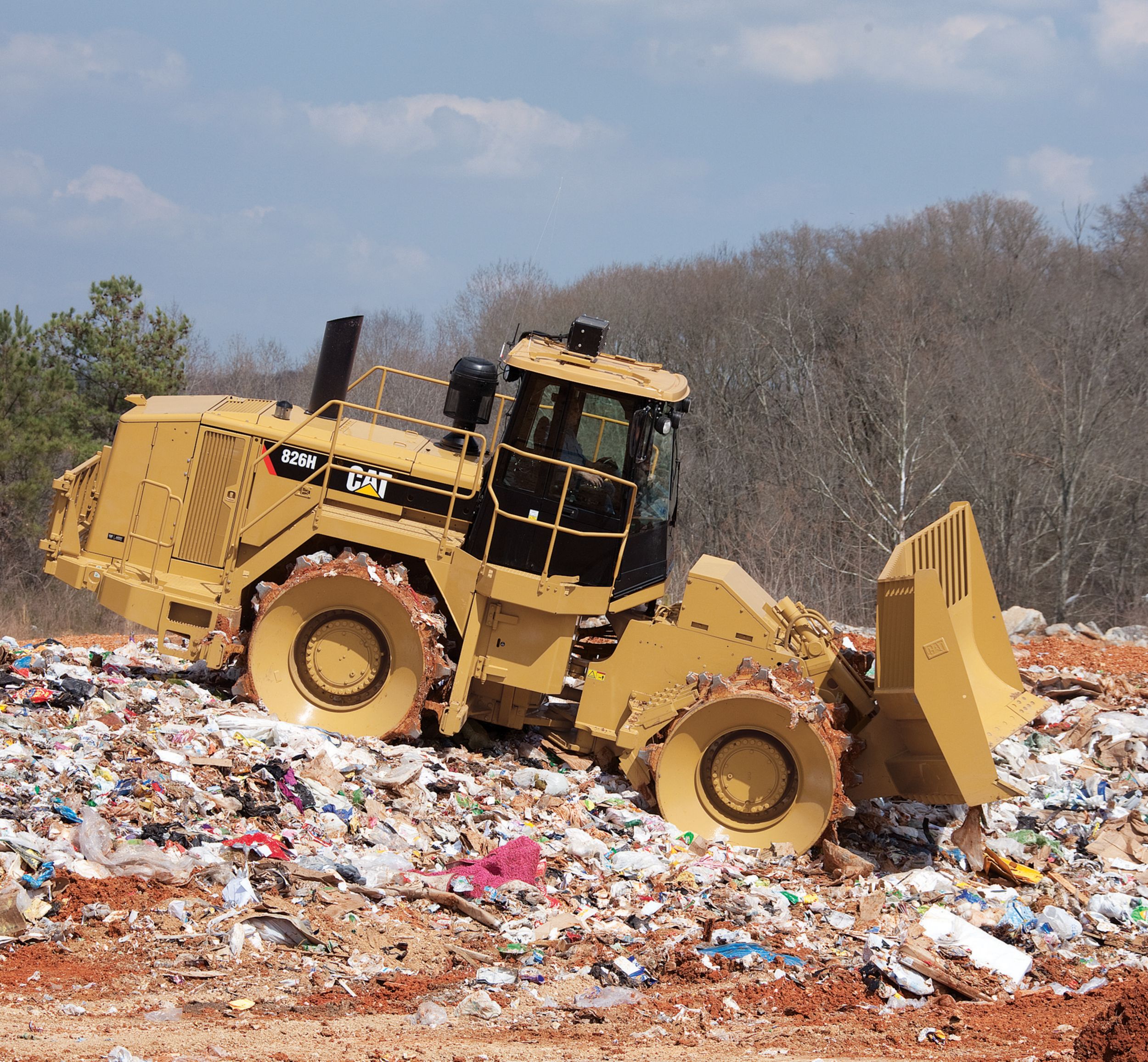

Caterpillar put the first 826 landfill compactor to work in 1978. Since then, customers like you have helped us improve the safety, reliability and productivity of this very popular machine. Our H Series model has enhanced visibility and comfort from a new ergonomic cab. Operators have greater line of sight to areas around the machine, and with CAES installed, the 826H has the ability to be more efficient, lowering your operating costs.

Show

Gross Power 299 kW

Net Power 264 kW

Engine Model Cat® C15 ACERT™

Flywheel Power 264 kW

Availability

Contact Dealer

Request A Quote Rent a Machine

826H

Request A Quote

FEATURES & BENEFITS

Quality

Caterpillar's commitment to quality is profound. We design to a higher standard so that your business can prosper. All of our parts are subject to quality and conformance... Read more

Power Train - Engine

The 826H features proven Cat power train components like the C15 ACERT™ diesel engine.Features of the Cat C15 ACERT A balanced, in-line, 6-cylinder diesel engine that's t... Read more

Drive Train

The constant direction changes, poor underfoot conditions and debris riddled environment of the landfill are easily managed by the rugged and dependable 826H drive train... Read more

Cooling Systems

There are two critical cooling systems on the machine, one for the machine, and one for the operator.Engine CoolingOne critical requirement for the 826H cooling system is... Read more

826H Cab

The 826H cab is designed to reduce work load, and provide a safe, comfortable work environment for those in and around the machine.VisibilityVisibility to the work area i... Read more

Machine Guarding

Caterpillar has 40 years of experience guarding landfill compactors, starting with the 816 first built in 1970. Even the simplest detail, like a bolt shearing, can interr... Read more

Cat Wheels and Tips

Caterpillar designs and manufactures its wheels in Aurora, Illinois, the same plant that assembles the compactors. There are two wheel sizes available, one 1016 mm (40 in... Read more

Blades

Straight BladeAn ideal blade for most landfills with heavy duty construction. Comes equipped with a trash guard that offers good visibility and additional capacity.Semi U... Read more

Safety

We are constantly improving our products in an effort to provide a safe work environment for the operator and those who work on your job site. Here are just a few of the... Read more

SPECIFICATIONS FOR 826H

Collapse All

Engine

Gross Power	299 kW
Net Power	264 kW
Engine Model	Cat® C15 ACERT™
Flywheel Power	264 kW
Torque Rise	19 %
Bore	137 mm
Stroke	171 mm
Displacement	15.2 l
Peak Torque - Gross	1881 N·m

Transmission

Forward - 1	5.8 km/h
Forward - 2	9.7 km/h
Reverse - 1	6.6 km/h
Reverse - 2	10.6 km/h

Hydraulic System

Vane Pump Output at 2,000 rpm and 6900 kPa (1,000 psi)	93 l/min
Relief Valve Setting	24175 kPa
Lift Cylinder Bore x Stroke	120.65 mm × 915 mm (4.74 in × 36.02 in)

Axles

Front	Planetary - Fixed
Oscillating Rear	±5°

Brakes

Standards

Meet OSHA, SAE J1473 DEC84, ISO 3450:1985 standards

Wheels - Chevron-Pattern, Chopper Blades

Drum Width	1200 mm
Drum Diameter	1532 mm
Diameter - With Blades	1850 mm
Blades per Wheel	24

Straight Blade

Capacity	13 m³
Width - Over End Bits	4502 mm
Moldboard - Length	4311 mm
Height	1898 mm

U-Blade

Capacity	16.7 m³
U-Angle	25°
Width - Over End Bits	4398 mm
Height	2075 mm
Moldboard - U-Length	1248 mm
Moldboard - Straight Length	2075 mm

Semi U-Blade

Capacity	14.5 m³
Semi U-Angle	25°
Moldboard - Straight Length	3634 mm
Height	1960 mm
Moldboard - Semi U-Length	461 mm
Width - Over End Bits	4490 mm

Service Refill Capacities

Fuel Tank	672 l
Cooling System	82 l
Crankcase	34 l
Transmission	62 l
Differential - Final Drives - Front	90 l
Differential - Final Drives - Rear	90 l
Hydraulic Tank	88 l

Weights

Operating Weight

36967 kg

Cab

ROPS/FOPS

Meets SAE and ISO standards

Sound Performance

Standards

Meet ANSI/SAE and ISO standards

Dimensions (Approximate)

Centerline of Rear Axle to Hitch	2275 mm
Width - Over Wheels	3800 mm
Width - Over End Bits - Blade	4502 mm
Turning Radius - Inside	3221 mm
Turning Radius - Outside	7333 mm

Hydraulic Steering System

Steering Cylinder, Bore and Stroke	114.3 mm × 576 mm (4.49 in × 22.68 in)
Relief Valve Setting	24125 kPa
Piston Pump Output at 2,000 rpm and 7000 kPa (1,015 psi)	186 l/min
Steering Angle	±42°

STEP Tips

Tips per Wheel	30
Diameter - With Tips	1888 mm
