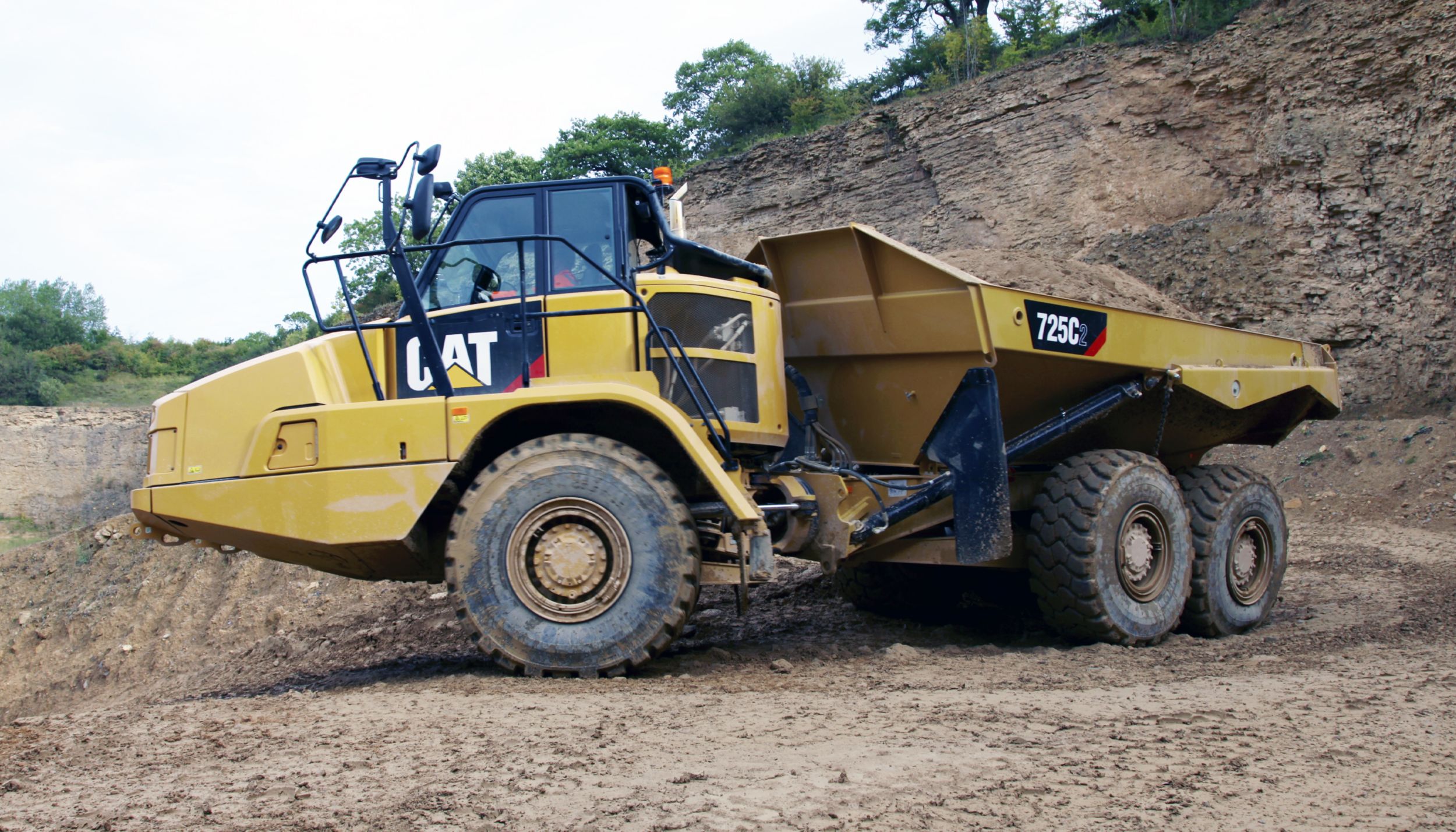

725C2

Three Axle Articulated Trucks

The Cat 725C2, with a 15 m3 (19.6 yd3) 24 tonnes (26.5 tons) capacity, offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. Updating the 725C to include all axle enclosed wet brakes and Automatic Traction Control makes the 725C2 the best option for our customers. Class leading levels of performance and operator comfort make for a productive machine all day long.

Show
Engine Model Cat C9.3
Bore 115 mm
Stroke 149 mm
Displacement 9.3 l
Availability Contact Dealer
Request A Quote Rent a Machine
725C2
Request A Quote

OVERVIEW

Making the Best Better

FEATURES & BENEFITS

MAXIMIZE PERFORMANCE

Every Tier 2/Stage II equivalent Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.Proven electronic, fuel, air and... Read more

AUTOMATIC CONTROLS

Automatic Traction Control (ATC) engages inter and cross-axle differential locks on-the-go giving the operator optimum traction as conditions change.Clutches release auto... Read more

HEAVY DUTY CONSTRUCTION

All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads... Read more

OPERATOR COMFORT AND CONTROL

Spacious cab delivers comfort all shift long.Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.Storage area behind the oper... Read more

BUILT TO PERFORM

Box section front and rear frames absorb stress loads and optimize suspension geometry.Dump body design provides a large target area for consistent high-load carrying cap... Read more

TECHNOLOGY THAT GETS WORK DONE

Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes. Read more

BECAUSE UPTIME COUNTS

Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.Long service intervals keep your machine operating.Lubrication points are g... Read more

MORE SUSTAINABLE FUTURE

Caterpillar designs and functions with great concern for the environment.Cat C9.3 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage IV em... Read more

BUILT-IN SAFETY FEATURES

Standard Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS) protect operators.The 725C2 includes a rearview camera system which provides a con... Read more

SPECIFICATIONS FOR 725C2

Collapse All
Engine
Engine Model Cat C9.3
Bore 115 mm
Stroke 149 mm
Displacement 9.3 l
Peak Engine Torque Gross (SAE J1995) 1590 N·m
Net Power - SAE J1349 234 kW
Net Power - ISO 14396 236 kW
No Engine De-rating Below 2290 m
Peak Engine Torque Net (SAE J1349) 1573 N·m
Peak Engine Torque Speed 1200 r/min
Engine Model - U.S. EPA Tier 2/EU Stage II Equivalent Cat® C9.3
Gross Power - SAE J1995 239 kW
Emissions The 725C2 meets Tier 2/Stage II equivalent emission standards.
Note (1) The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Note (3) Net power when the fan is at maximum speed is 214 kW (287 hp) per the SAE reference conditions.
Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Weights
Rated Payload 24 t
Body Capacities
Heaped (SAE 2:1) 15 m³
Struck 11 m³
Tailgate Heaped SAE 2:1 15.6 m³
Tailgate Struck 11.1 m³
Transmission
Forward - 1 8 km/h
Forward - 2 15 km/h
Forward - 3 22 km/h
Forward - 4 34 km/h
Forward - 5 47 km/h
Forward - 6 55 km/h
Reverse - 1 9 km/h
Sound Levels
Interior Cab 76 dB(A)
Note (1) The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT 98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Operating Weights
Total - Empty 22775 kg
Center Axle - Rated Load 10750 kg
Front Axle - Empty 14065 kg
Rear Axle - Loaded 14980 kg
Center Axle - Empty 4480 kg
Front Axle - Rated Load 2500 kg
Total - Rated Load 24000 kg
Center Axle - Loaded 15230 kg
Rear Axle - Empty 4230 kg
Rear Axle - Rated Load 10750 kg
Front Axle - Loaded 16565 kg
Total - Loaded 46775 kg
Service Refill Capacities
Fuel Tank 412 l
Cooling System 83 l
Hydraulic System 110 l
Engine Crankcase 38 l
Transmission 47 l
Final Drives/Differential 125 l
Output Transfer Gear Box 24 l
Body Hoist
Raise Time 10 s
Lower Time 8 s
Steering
Lock to Lock 4.75 seconds @ 60 rpm
Standards
Brakes ISO 3450 – 2011
Cab - FOPS ISO 3449 Level II – 2005
Cab - ROPS ISO 3471 – 2008
Steering ISO 5010 – 2007
Body Plate
Type High strength Brinell HB450 wear resistant steel
Turning Circle
Turning Dimensions - Clearance Radius 8075 mm
Turning Dimensions - Steer Angle - Left/Right 45°
Note Dimensions are for machines equipped with 23.5R25 tires.
Turning Dimensions - SAE Turning Radius 7470 mm
Turning Dimensions - Aisle Width 5332 mm
Turning Dimensions - Inside Radius 3879 mm
