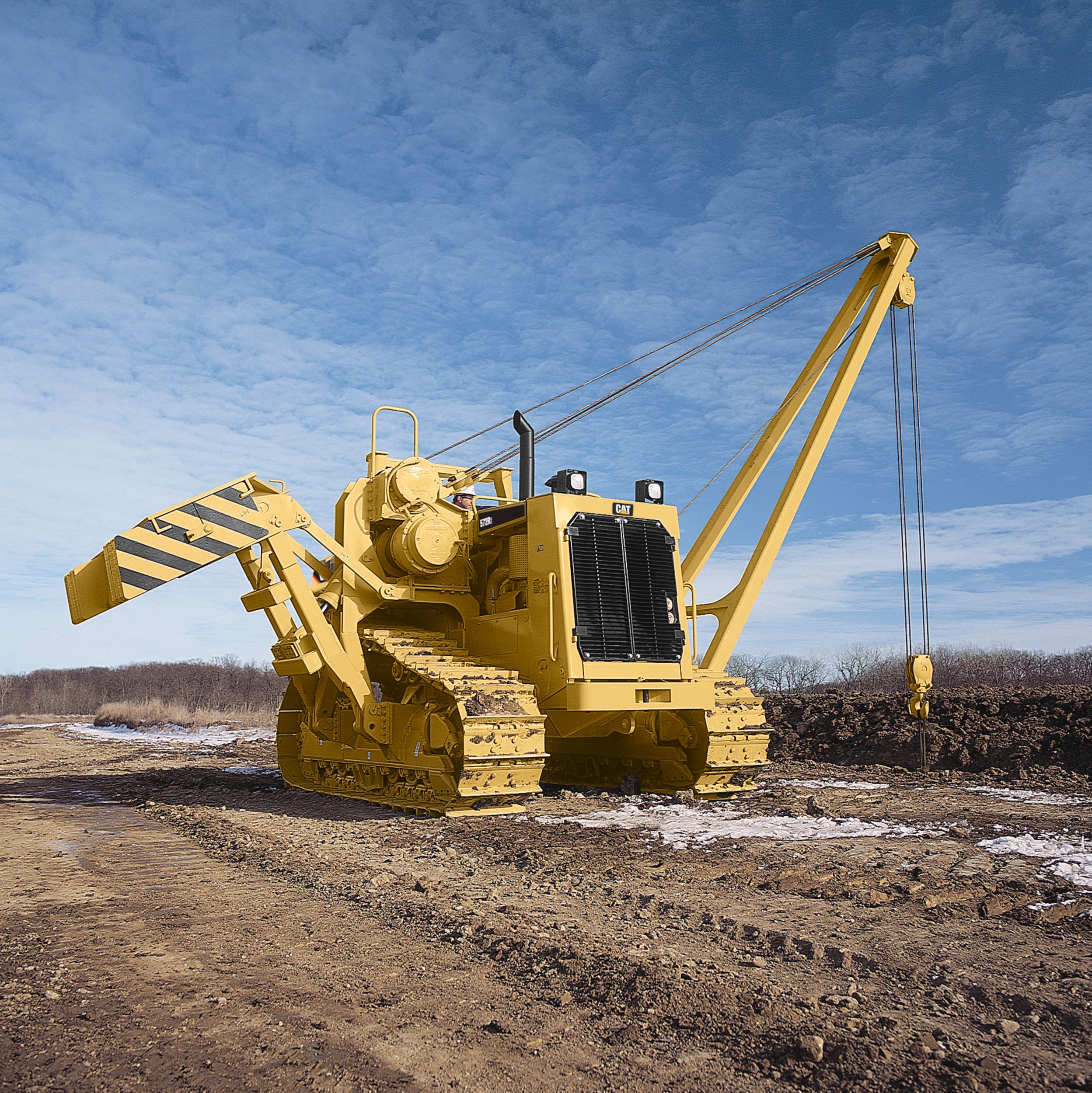

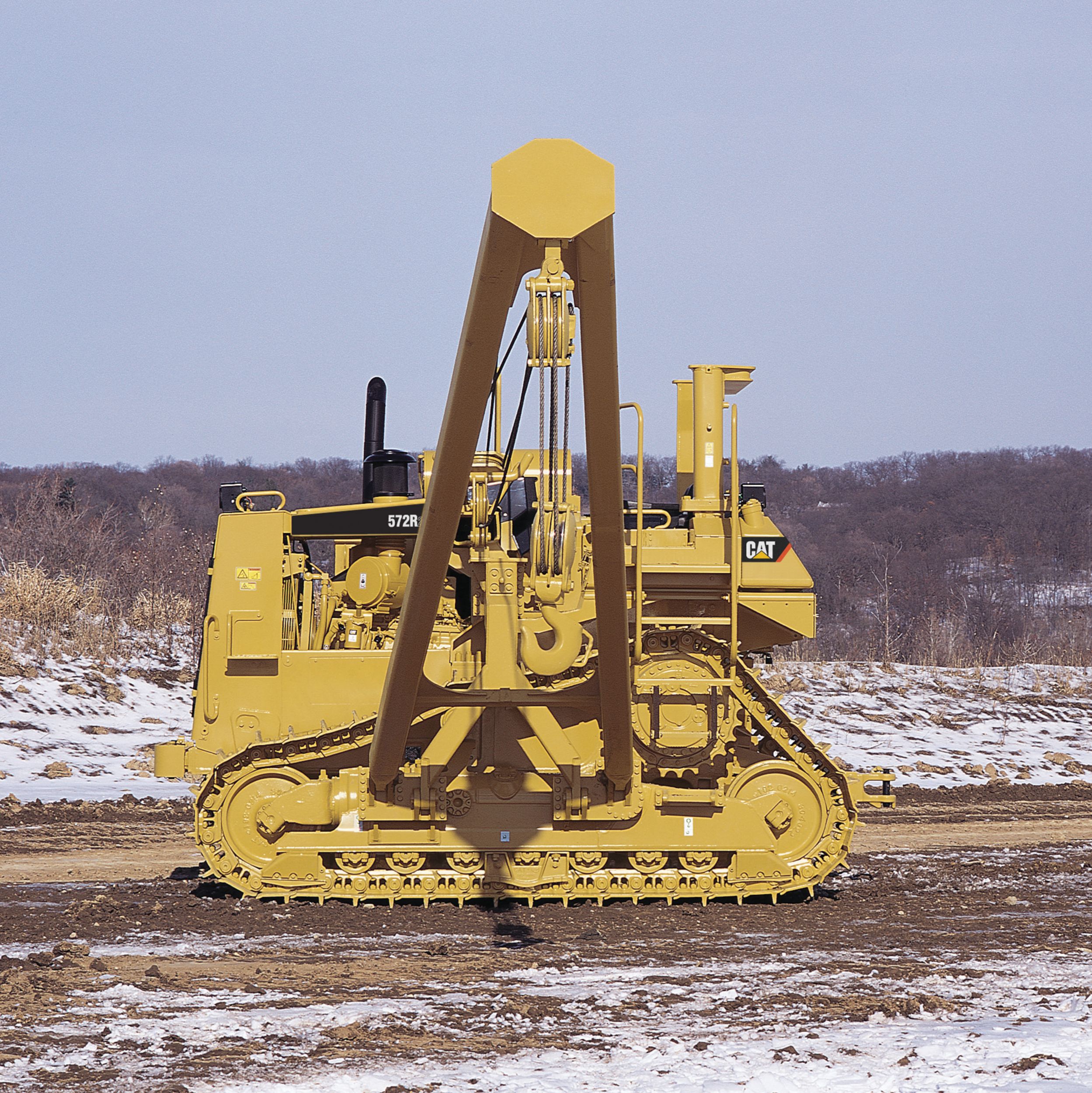

572R Series 2

Pipelayers

Engineered for demanding work.The 572R Series 2 power and versatility, combined with rugged components, are designed for tough and varied working conditions.

Show
Engine Model 3176C
Flywheel Power 189 kW
Net Power - ISO 9249 189 kW
Operating Weight 31845 kg
Availability Contact Dealer
Request A Quote Rent a Machine
572R Series 2
Request A Quote

FEATURES & BENEFITS

Power Train

The rugged, easy-to-service 3176C engine features the electronically controlled, direct injection fuel system for improved fuel efficiency and reduced emissions. The 3176... Read more

Advanced Modular Cooling System (AMOCS)

AMOCS utilizes an exclusive two pass cooling system and increased cooling surface area to provide significantly more cooling efficiency than conventional systems. Read more

Drive Train

Rugged, durable, and reliable components deliver smooth, responsive power and lasting reliability. The Auto-shift and Auto-kickdown features enhance operator comfort. Read more

Finger Tip Control

Finger Tip Control (FTC) combines steering, machine direction and gear selection into a single control system. These control functions can be simultaneously operated usin... Read more

Pipelayer

Hydraulic load line and boom winches provide excellent speed capability. Counterweight and frame design provide excellent stability while offering ample viewing area. Read more

Operator Station

Ergonomically designed for productivity and comfort. Controls are intuitive, low-effort, and easy to reach. Instrument panel is easy to read and informative. Simplified a... Read more

Structure

Mainframe is designed and built for durability using the latest technology in engineering and manufacturing. Providing solid support and perfect alignment for major compo... Read more

Undercarriage

Elevated sprocket design for optimized balance and performance. The final drives are above the work area, isolating them from ground impact for long power train component... Read more

Serviceability

Major modular components are designed for excellent serviceability and allow fast in-field component exchange. Read more

SPECIFICATIONS FOR 572R Series 2

Collapse All
Engine
Engine Model 3176C
Flywheel Power 189 kW
Net Power - ISO 9249 189 kW
Weights
Operating Weight 31845 kg
Pipelaying Equipment
Lift Capacity 40800 kg
Dimensions
Length 4736 mm²
Shipping Width 3659 mm²
Shipping Height 3443 mm²
