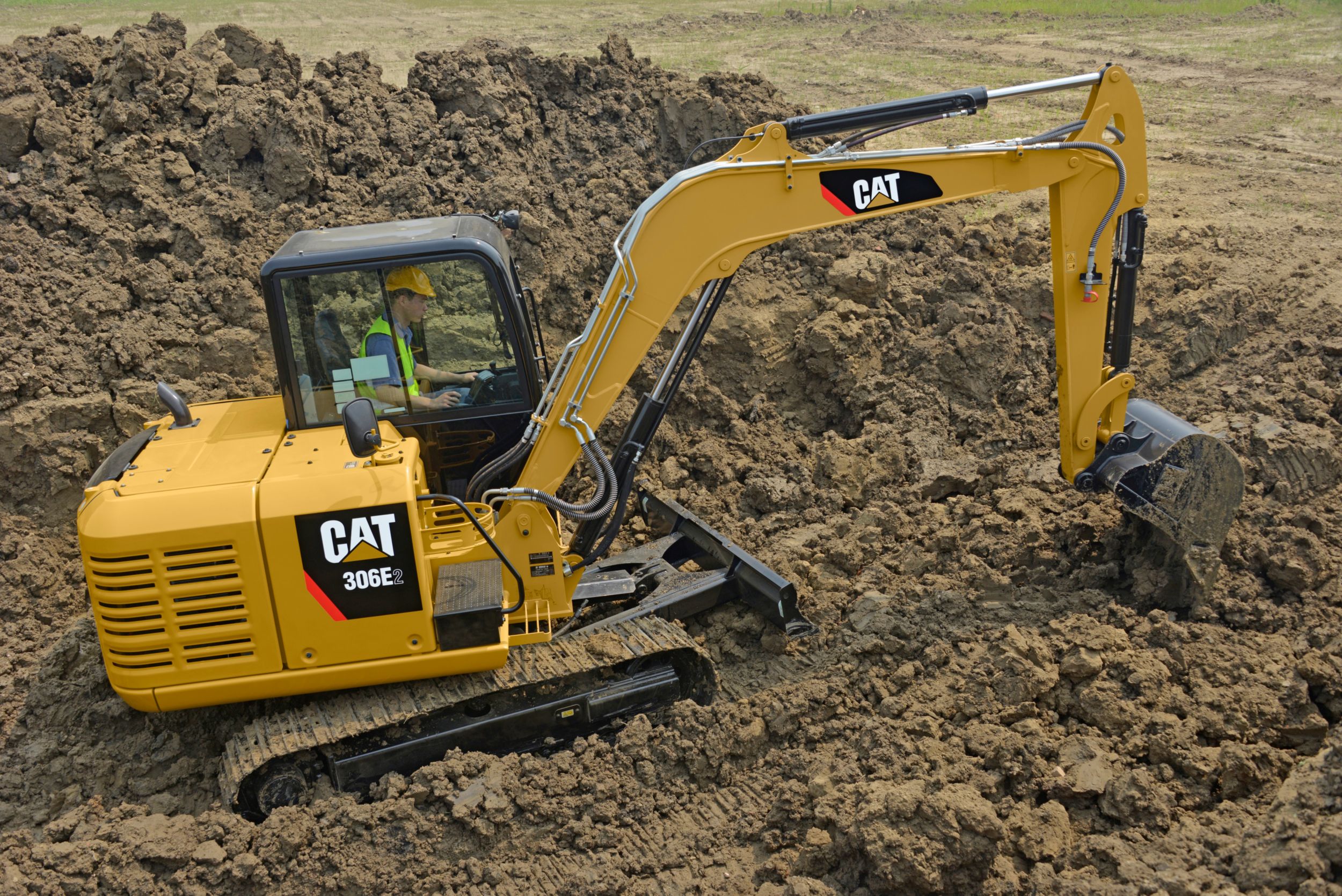

306E2

Mini Excavators

The new Cat 306E2 Mini Hydraulic Excavator has been designed and built by Caterpillar to deliver exceptional superior performance, productivity, controllability and reliability at lower operating cost. The extremely fast, smooth and responsive hydraulic movement offers greater job accuracy and efficiency. The standard tail swing design incorporates a counterweight that extends further back on the machine to maximize the machine stability for lifting and digging. The 306E2 sets the standard for conventional tail swing excavators in the six-ton size class.

Show
Engine Model Cat® C2.4 (DI Turbo)
Net Power 34.7 kW
Gross Power - 2,200 rpm 36.5 kW
Bore 87 mm
Availability Contact Dealer
Request A Quote Renting Machine
Download Brochure find related used machines
306E2
Request A Quote

FEATURES & BENEFITS

Performance

HydraulicsSmooth responsive hydraulics give the level of control demanded by the customer in any application, from fine grading and dozing to backfilling. Powerful bucket... Read more

Undercarriage

Steel TrackCaterpillar designed undercarriage is built for stability and durability. A 400 mm triple grouser track is standard. Lower profiled undercarriage provides bett... Read more

Operator Comfort

Operator StationThe redesigned operator environment provides the operator with a larger cab and more ingress and egress room. The intuitive cab layout also features ergon... Read more

Engine

Powerful (Efficient DI Turbocharged) Engine and Load Sensing HydraulicsThe new Cat C2.4 DI efficient 36.5 kW (48.9 hp) engine is matched with a load sensing hydraulic sys... Read more

Engine and Serviceability

Excellent Service Access and “One Side Maintenance” EngineFast, easy service with extended service intervals, convenient filter access and user-friendly electronic diagno... Read more

SPECIFICATIONS FOR 306E2

Collapse All
Engine
Engine Model Cat® C2.4 (DI Turbo)
Net Power 34.7 kW
Gross Power - 2,200 rpm 36.5 kW
Bore 87 mm
Displacement 2.4 cm³
Stroke 102.4 mm
Note 1 Meets China Stage II Nonroad emissions requirements.
Note 2 Net power rating per ISO 9249 and SAE J1349.
Weights
Operating Weight 5800 kg
Note Weight includes counterweight, steel track, 0.25 m3 bucket and operator.
Hydraulic System
Digging Force - Bucket 39 kN
Digging Force - Stick - Standard 28 kN
Maximum Pressure - Implements 25000 kPa
Main System - Maximum Flow 140 l/min
Swing System
Machine Swing Speed 10.5 r/min
Swing Torque 14.2 kN·m
Blade
Width 1950 mm
Height 360 mm
Service Refill Capacities
Cooling System 8.3 l
Engine Oil 9.5 l
Hydraulic Tank 58 l
Fuel Tank 78 l
Hydraulic System 85 l
Drive
Travel Speed 2.8/4.3 km/h (1.7/2.7 mph)
Maximum Drawbar Pull 46.4 kN
Track
Track Shoe Width - Standard 400 mm
Track Length 2440 mm
Number of Shoes - Each Side 38
Number of Track Rollers - Each Side 5
Number of Carrier Rollers - Each Side 1
Note Track shoe has four holes for pad shoe adoption.
Bucket
Standard Bucket Size 0.25 m3 (0.33 yd3)
