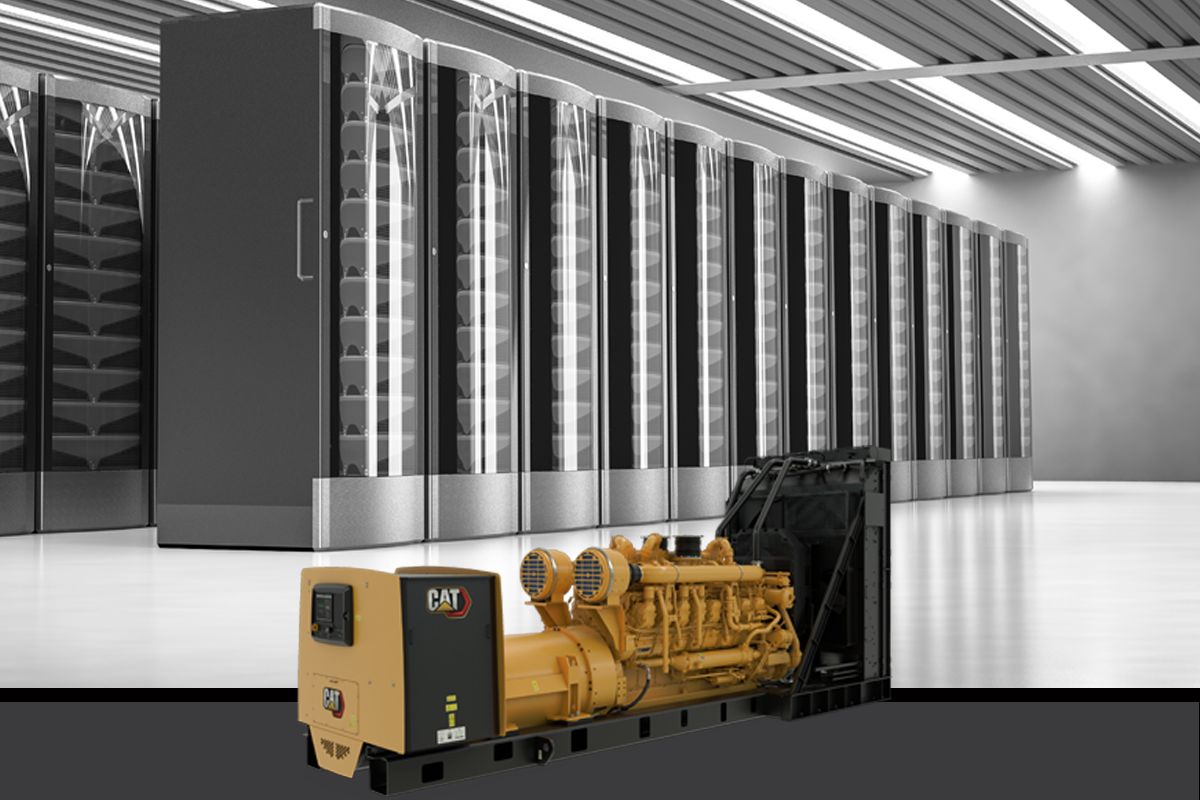

3516E (50 Hz)

Diesel Generator Sets

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Show

Standby Rating 3000 kVA (3100 kVA without fan)

Prime Power Rating 2750 kVA (2850 kVA without fan)

Emissions/Fuel Strategy Low Fuel Consumption

Voltage 380 to 11000 volts

Availability

Contact Dealer

Request A Quote Download Brochure

3516E (50 Hz)

Request A Quote

OVERVIEW

2750 - 3100 kVA Diesel Generator Set

FEATURES & BENEFITS

Cat Generator Set Package

Cat Generator Set PackageCat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirementsConform to... Read more

Cat Diesel Engine

Cat Diesel EngineReliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consistent performance and ex... Read more

SR5 Alternator

SR5 AlternatorSuperior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristics of Cat diesel enginesRob... Read more

EMCP 4 Control Panel

EMCP 4 Control PanelUser-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-specific programming... Read more

Cooling System

Cooling SystemDesigned to operate in standard ambient temperatures up to 50°C (122°F)Contact your Cat Dealer for specific ambient and altitude capabilities Read more

Certifications

CertificationsEU Declaration of ConformityEU Declaration of IncorporationEurasian Conformity (EAC)Telecommunication Lab of China Read more

One Safe Source

One Safe SourceComponents used in the generator set are selected at the design stage to provide optimum package performanceThe generator set is fully assembled at a Cater... Read more

World Wide Product Support

World Wide Product SupportCat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale support, including... Read more

SPECIFICATIONS FOR 3516E (50 Hz)

Collapse All

Generator Set Specifications

Standby Rating	3000 kVA (3100 kVA without fan)
Prime Power Rating	2750 kVA (2850 kVA without fan)
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	380 to 11000 volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime
Maximum Rating	3000 kVA (3100 kVA without fan)
Minimum Rating	2750 kVA (2850 kVA without fan)

Engine Specifications

Engine Model	3516E, SCAC, V-16, 4-Stroke, Water-Cooled Diesel
Bore	170 mm
Stroke	215 mm
Displacement	78.1 l
Compression Ratio	14:01
Aspiration	TA
Fuel System	Electronic unit injection
Governor Type	Adem™ A5

Generator Set Dimensions

Length - Maximum	7538 mm
Width - Maximum	2216 mm
Height - Maximum	3391 mm
Dry Weight - Genset (maximum)	19750 kg
