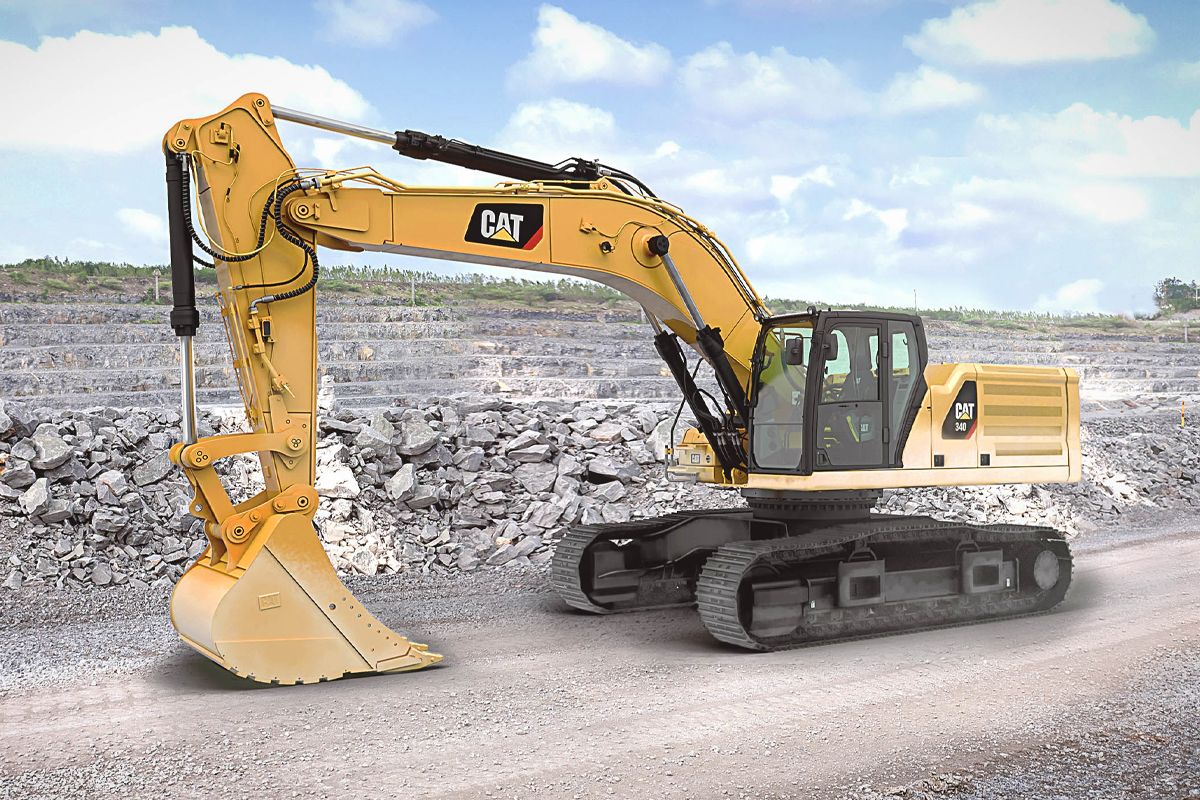

340

Large Excavators

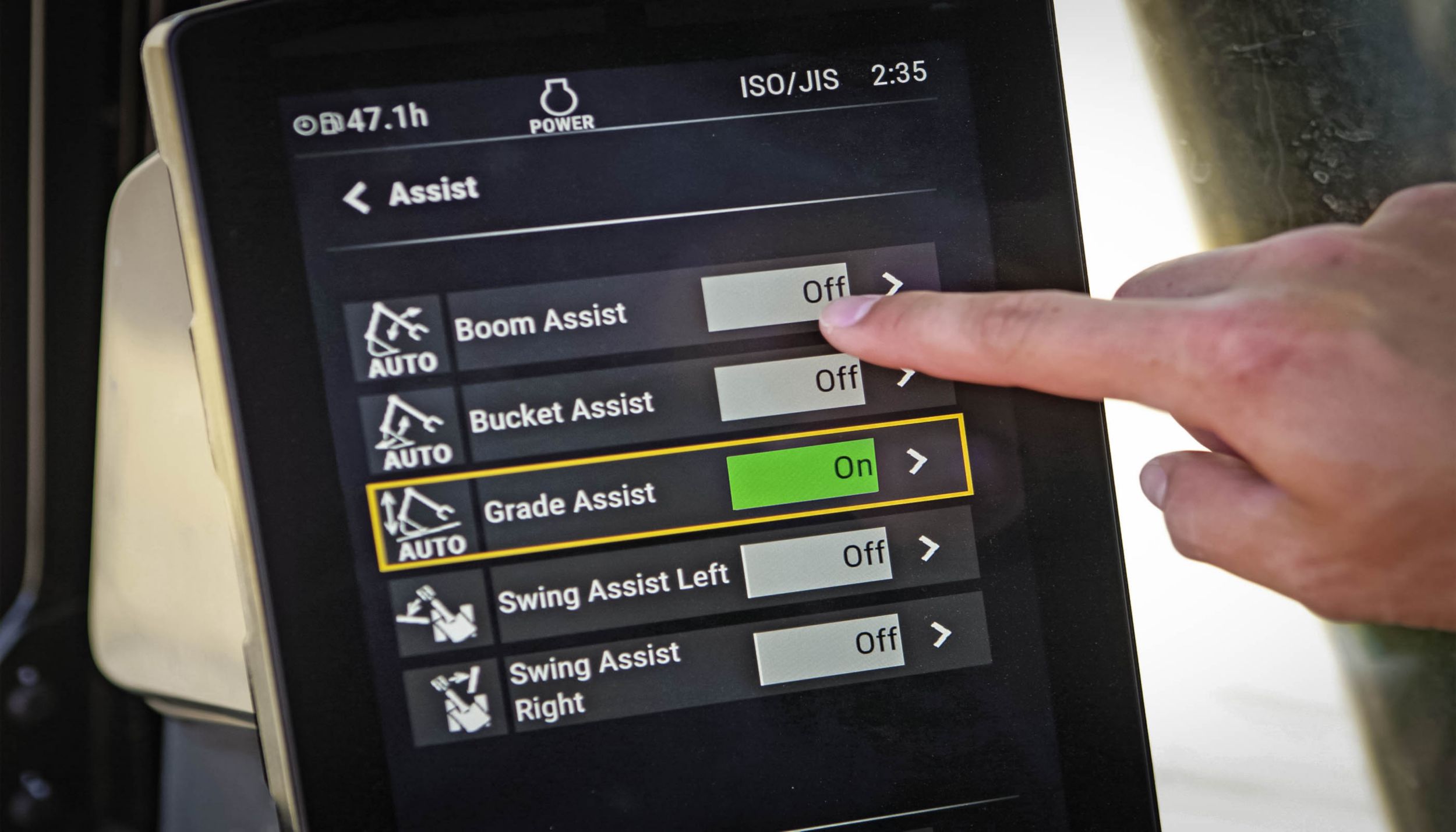

The Cat® 340 excavator delivers efficiency in all applications. Simple-to-use technologies like Cat GRADE with 2D, Grade Assist, Payload, and E-Fence all come standard from the factory to boost your operator efficiencies up to 45 percent. Combine these with a new cab, longer maintenance intervals that lower your maintenance costs up to 15 percent, and a power system that that improves fuel efficiency up to 15% and you have a low-cost-per-unit-of-production excavator capable of taking on your toughest work.Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.

Show

Net Power - ISO 9249 232 kW

Engine Model Cat C9.3B

Engine Power - ISO 14396 234 kW

Bore 115 mm

Ketersediaan

Hubungi Dealer

Minta Penawaran Sewa Alat

Download Brochure find related used machines

340

Minta Penawaran

OVERVIEW

Highly Efficient for Specialized Applications

FEATURES & BENEFITS

SPECIFICATIONS FOR 340

Collapse All

Engine

Net Power - ISO 9249	232 kW
Engine Model	Cat C9.3B
Engine Power - ISO 14396	234 kW
Bore	115 mm
Stroke	149 mm
Displacement	9.3 l

Hydraulic System

Main System - Maximum Flow	558 l/min (147 gal/min)
Maximum Pressure - Equipment	35000 kPa
Maximum Pressure - Equipment - Lift Mode	38000 kPa
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	29400 kPa

Swing Mechanism

Swing Speed	8.75 r/min
Maximum Swing Torque	144 kN·m

Weights

Operating Weight

39700 kg

Service Refill Capacities

Fuel Tank Capacity	600 l
Cooling System	40 l
Engine Oil	32 l
Swing Drive	18 l
Final Drive - Each	8 l
Hydraulic System - Including Tank	373 l
Hydraulic Tank	161 l
DEF Tank	80 l

Dimensions

Boom	Reach 6.5 m (21'4")
Stick	Reach R3.2DB (10'6")
Bucket	GD 2.27 m³ (2.97 yd³)
Shipping Height - Top of Cab	3400 mm
Handrail Height	3390 mm
Shipping Length	10110 mm
Tail Swing Radius	3530 mm
Counterweight Clearance	1470 mm
Ground Clearance	720 mm
Track Length	5030 mm
Track Length to Center of Rollers	4040 mm
Track Gauge	2930 mm
Transport Width	3530 mm

Working Ranges & Forces

Maximum Digging Depth	7270 mm
Boom	Reach 6.5 m (21'4")
Stick	Reach R3.2DB (10'6")
Bucket	GD 2.27 m³ (2.97 yd³)
Maximum Reach at Ground Level	10980 mm
Maximum Cutting Height	10550 mm
Maximum Loading Height	7330 mm
Minimum Loading Height	2830 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	7110 mm
Maximum Vertical Wall Digging Depth	5330 mm
Bucket Digging Force - ISO	210 kN
Stick Digging Force - ISO	186 kN
