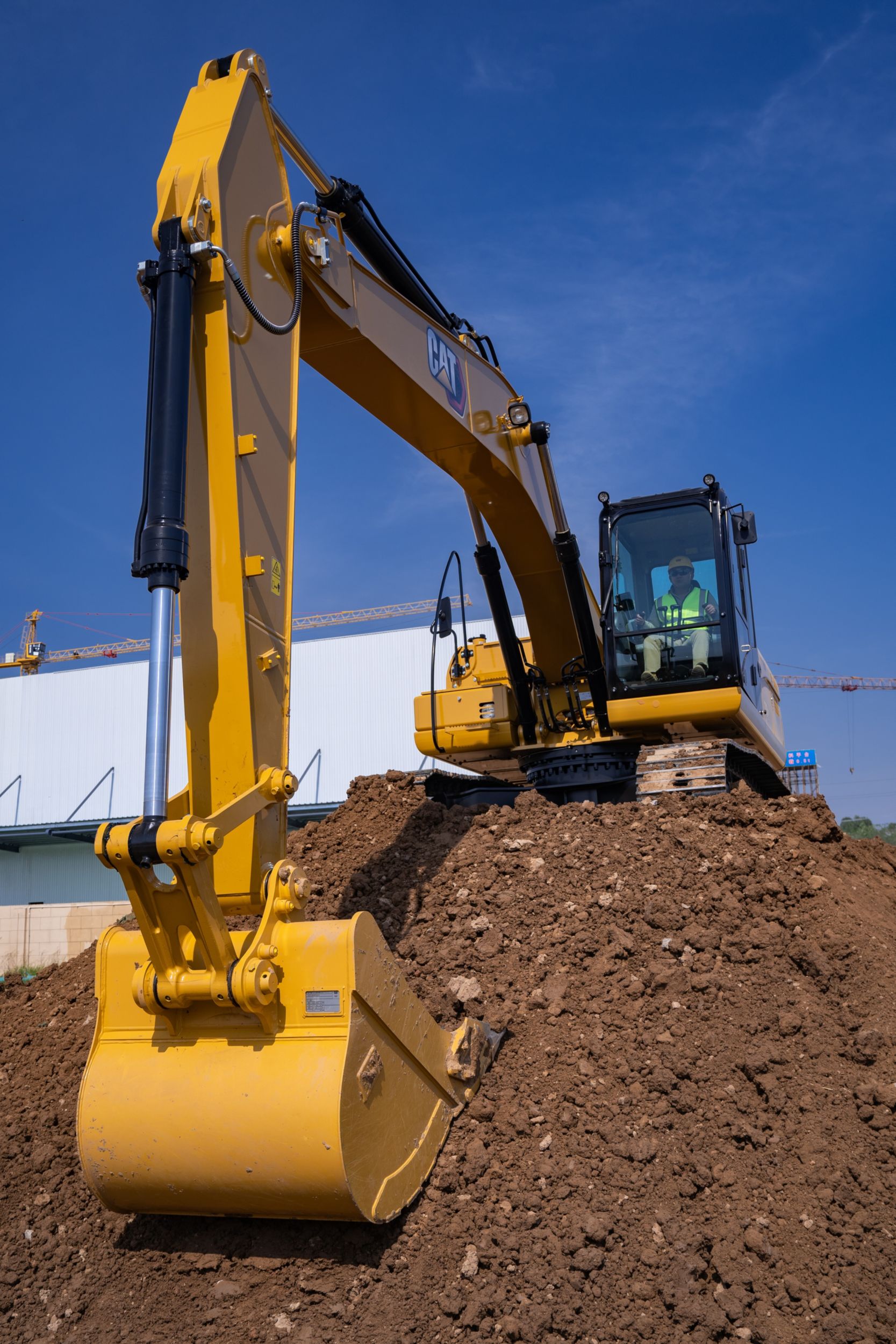

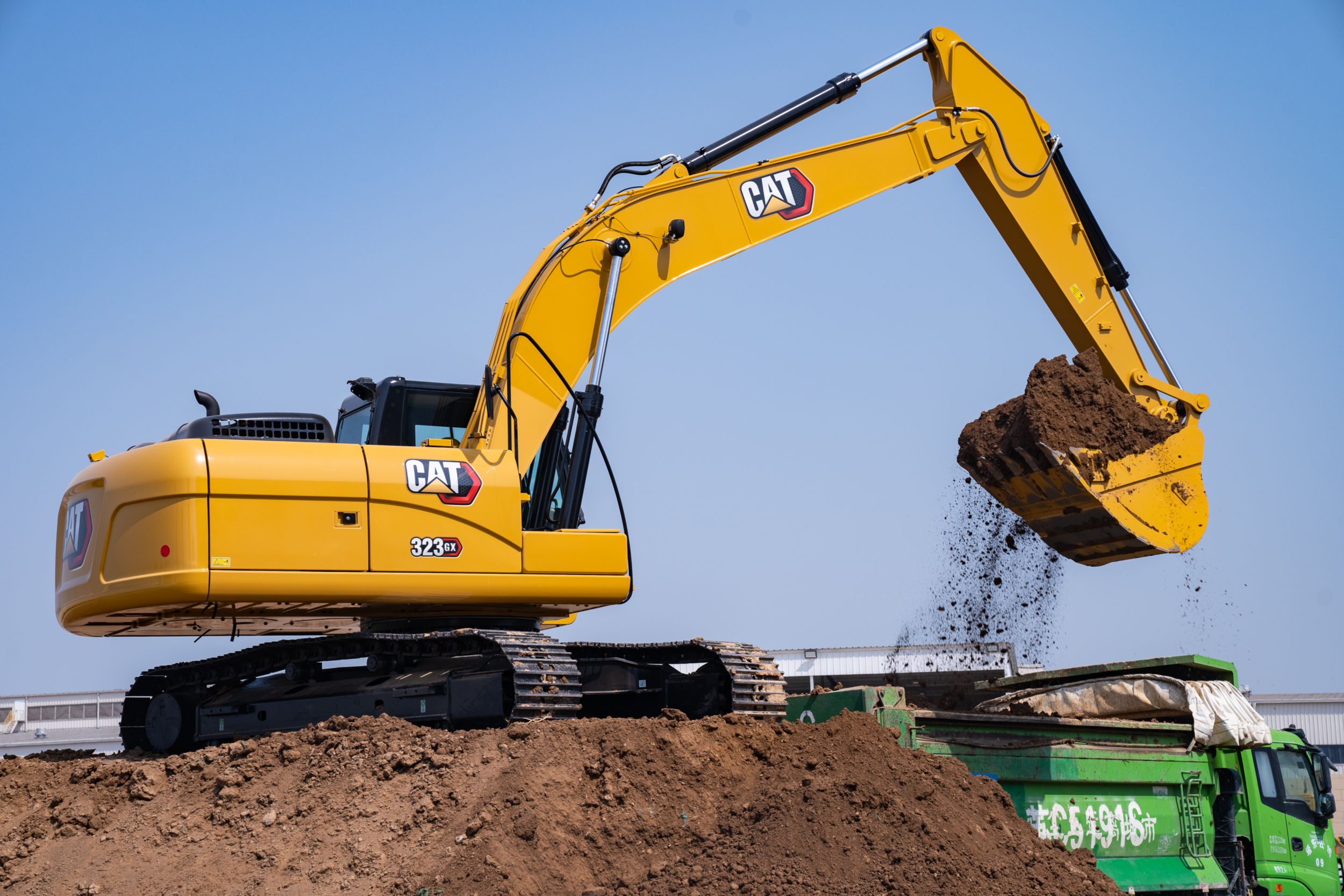

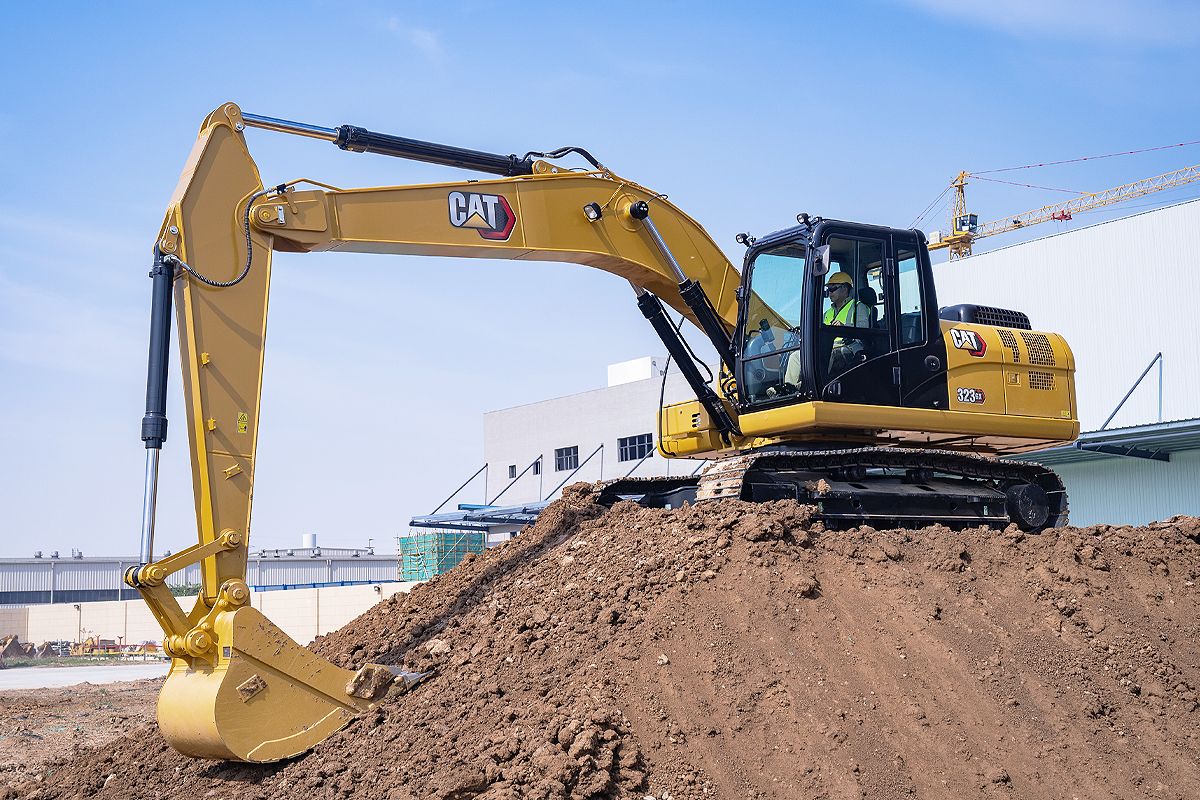

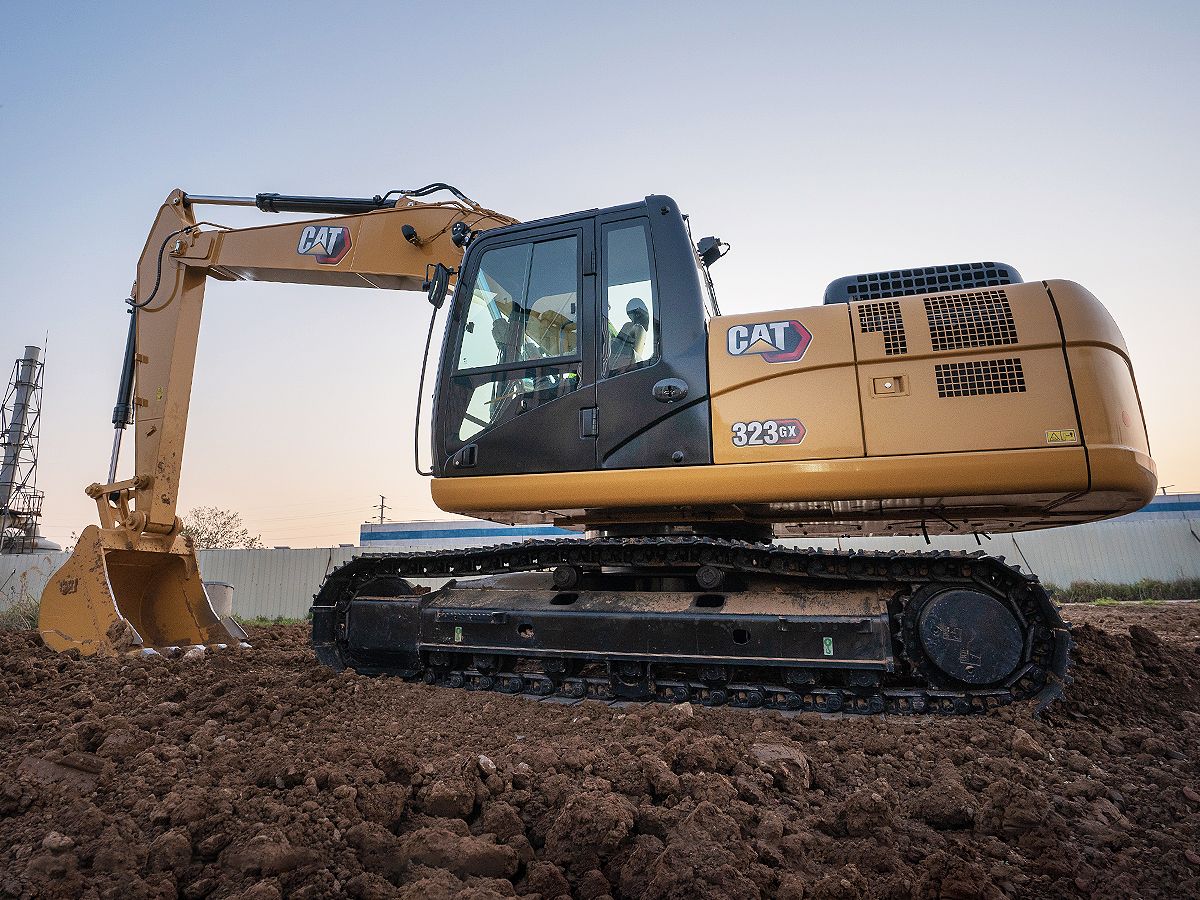

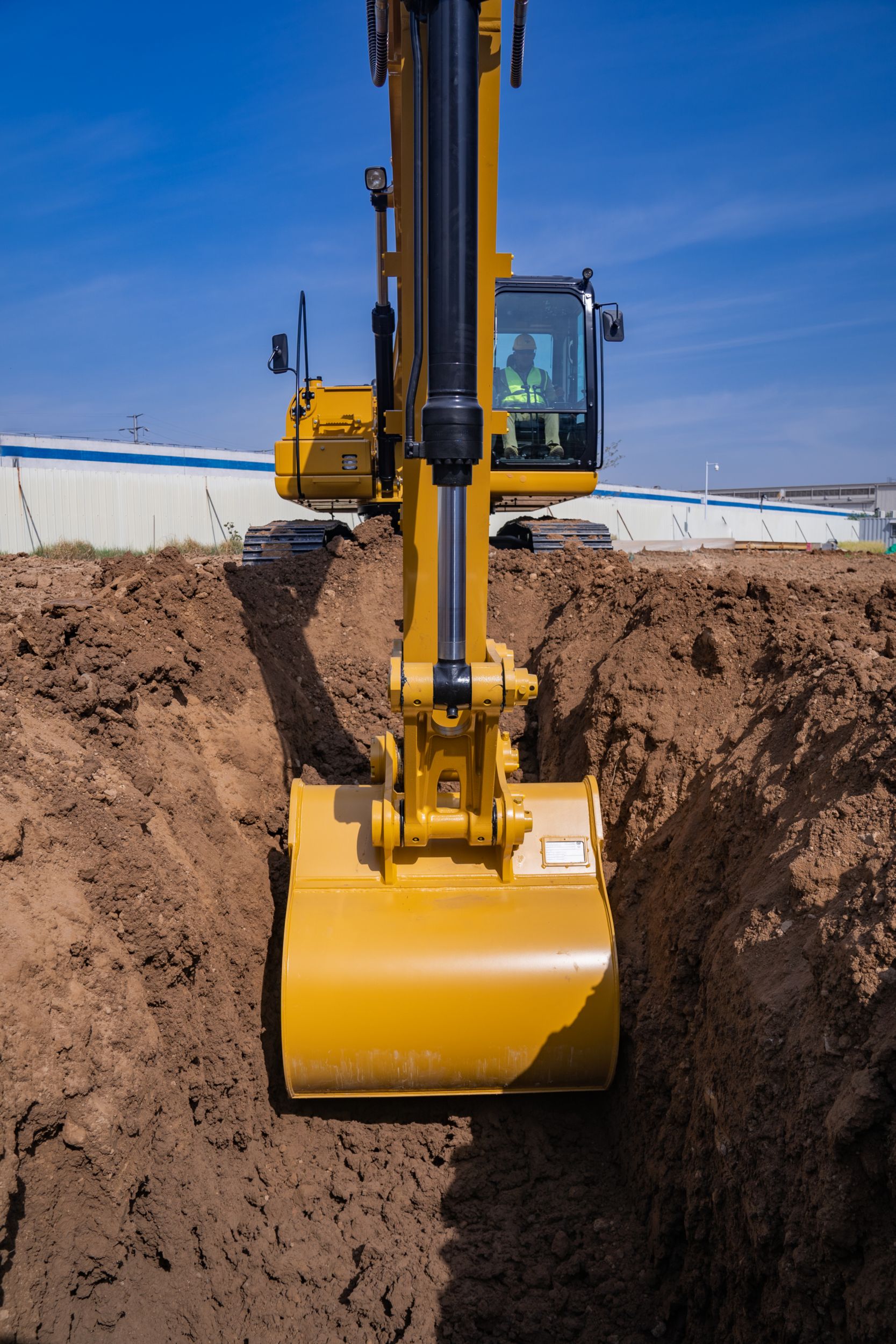

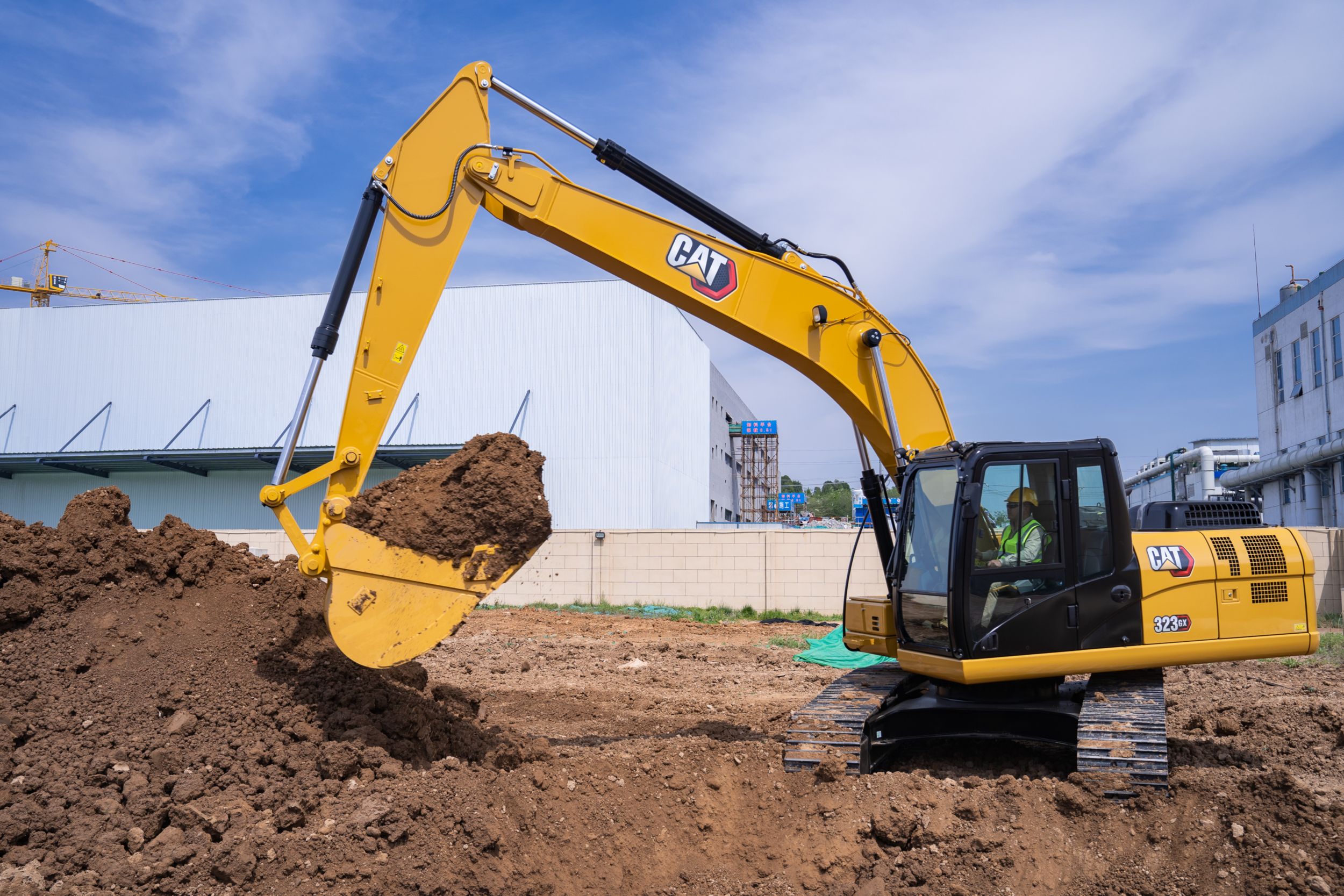

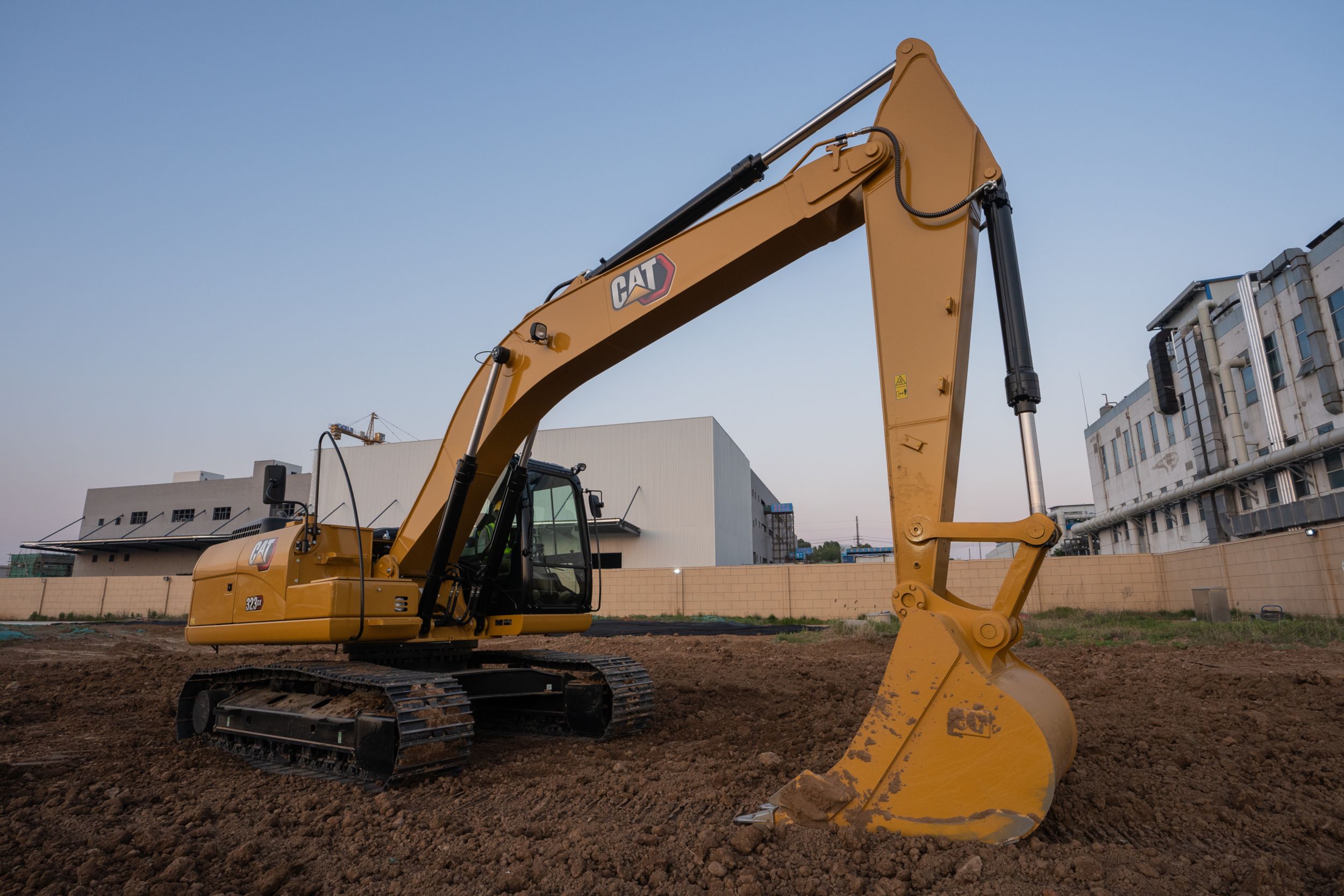

323 GX

Medium Excavators

The Cat 323 GX is designed, built and uniquely supported to put you on the fast track to prosperity. Offering high reliability, durability, and competitive productivity all at a low cost.

Show
Net Power - ISO 9249 124 kW
Engine Model Cat C4.4
Engine Power - ISO 14396 129 kW
Bore 105 mm
Ketersediaan Hubungi Dealer
Minta Penawaran Permintaan Penawaran Sewa
Unduh Brosur find related used machines
323 GX
Minta Penawaran

OVERVIEW

Reliable. Durable. New Classic.

FEATURES & BENEFITS

Reliable, Durable Performance

The C4.4 engine and electrohydraulic system work in sync to help you move plenty of material without burning truckloads of fuel.Fast cycle times give you competitive prod... Read more

Low Owning and Operating Costs

The C4.4 engine meets China Nonroad Stage III emission standards and consumes up to 15% less fuel than the 323D2 L in similar applications.Match the excavator to the job... Read more

Simple to Operate

Start the engine with a pushbutton.Navigate quickly on the high-resolution 203 mm (8 in) touchscreen monitor.Control the excavator comfortably with easy-to-reach controls... Read more

Work in Comfort

The cab has a wide seat that adjusts for operators of all sizes.Standard automatic climate control keeps you at the right temperature all shift long.Convenience features... Read more

Easy to Maintain

Do most daily maintenance at ground level and expect lower maintenance cost than the 323D2 L due to enhanced filters and extended and synchronized service intervals. (Sav... Read more

Enhanced Safety

Access daily maintenance points from ground level with the exception of the engine oil level – no need to climb on top of the excavator to check filters or grease linkage... Read more

SPECIFICATIONS FOR 323 GX

Collapse All
Engine
Net Power - ISO 9249 124 kW
Engine Model Cat C4.4
Engine Power - ISO 14396 129 kW
Bore 105 mm
Stroke 127 mm
Displacement 4.4 l
Hydraulic System
Main System - Maximum Flow - Implement 429 l/min
Maximum Pressure - Equipment 35000 kPa
Maximum Pressure - Travel 35000 kPa
Maximum Pressure - Swing 27500 kPa
Swing Mechanism
Swing Speed 11.13 r/min
Maximum Swing Torque 82 kN·m
Weights
Operating Weight 21700 kg
Service Refill Capacities
Fuel Tank Capacity 103 gal (US)
Cooling System 24.5 l
Engine Oil 15 l
Swing Drive 12 l
Final Drive - Each 4.5 l
Hydraulic System - Including Tank 218 l
Hydraulic Tank 115 l
Dimensions
Boom Reach 5.7 m (18'8")
Stick Reach R2.9 m (9'6")
Bucket GD 1.30 m³ (1.70 yd³)
Shipping Height - Top of Cab 2960 mm
Handrail Height 3030 mm
Shipping Length 9515 mm
Tail Swing Radius 2830 mm
Counterweight Clearance 1046 mm
Ground Clearance 468 mm
Track Length 13.11 ft
Track Length to Center of Rollers 3265 mm
Track Gauge 2380 mm
Transport Width 2800 mm
Length to Center of Rollers 3445 mm
Transport Width - 600 mm (24”) Shoes 2980 mm
Working Ranges & Forces
Maximum Digging Depth 6660 mm
Boom Reach 5.7 m (18'8")
Stick Reach R2.9 m (9'6")
Bucket GD 1.30 m³ (1.70 yd³)
Maximum Reach at Ground Level 9810 mm
Maximum Cutting Height 9440 mm
Maximum Loading Height 6550 mm
Minimum Loading Height 2230 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 6490 mm
Maximum Vertical Wall Digging Depth 5530 mm
Bucket Digging Force - ISO 142 kN
Stick Digging Force - ISO 107 kN
323F SA Dimensions (Approximate): Reach Boom; 2.9 m (9.5 ft) Stick; 1.19 m3 (1.56 yd3) Bucket
Note Medium undercarriage, Reach boom, R2.9B1 (9'6") stick, GD 1.30 m³ (1.70 yd³) bucket, 600 mm (24") triple grouser shoes and 4.55 mt (10,000 lb) counterweight.
