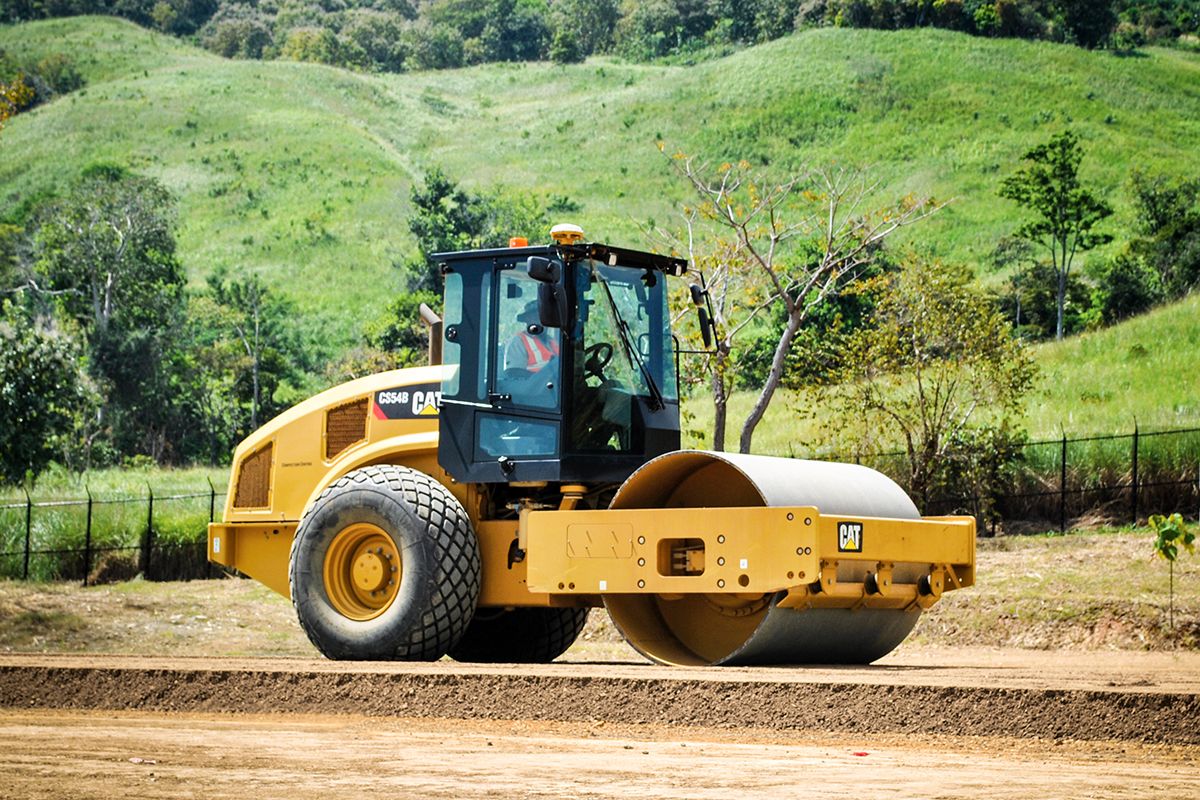

CS54B

Vibratory Soil Compactors

The CS54B provides exceptional performance for granular soil compaction applications.

Show
Operating Weight - With Cab 10555 kg
Weight - Drum with ROPS/FOPS 5785 kg
Weight - Drum with Cab 5880 kg
Compaction Width 2134 mm
Ketersediaan Hubungi Dealer
Minta Penawaran Sewa Alat
Download Brochure
CS54B
Minta Penawaran

OVERVIEW

Optimize Performance

FEATURES & BENEFITS

Enhanced Vibratory System

Pod-style Eccentric WeightsThe B-Series utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to co... Read more

Reliable Power Train

Dual-pump Propel SystemThe exclusive Cat dual pump propel system provides steady hydraulic flow for unmatched gradeability and blade function and now has been enhanced wi... Read more

Comfortable Operator's Environment

ROPS/FOPS ConfigurationThe ROPS/FOPS configuration features hand rails that enclose the platform area. A multi-position steering wheel adjusts for comfort. An adjustable,... Read more

Cat Compaction Control Option

Two Compaction Measurement Technologies AvailableTwo different compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP... Read more

Easy to Service

Tilting Cooling PackageThe cooling package tilts for easy cleaning. Normal cleaning ensures that the cooling systems protects the engine to full capacity.Long Service Int... Read more

SPECIFICATIONS FOR CS54B

Collapse All
Weights
Operating Weight - With Cab 10555 kg
Weight - Drum with ROPS/FOPS 5785 kg
Weight - Drum with Cab 5880 kg
Operating Specifications
Compaction Width 2134 mm
Static Linear Load - With Cab 27.6 kg/cm
Ground Clearance 442 mm
Turning Radius - Inside Drum Edge 3.68 m
Travel Speed - Maximum 11 km/h
Static Linear Load - With ROPS/FOPS 27.1 kg/cm
Engine
Gross Power 98 kW
Engine Model Cat C4.4 with ACERT
Dimensions
Wheel Base 2.9 m
Overall Width 2.3 m
Drum Width 2134 mm
Height - With ROPS/FOPS or Cab 3.11 m
Overall Length 5.85 m
Drum Diameter 1534 mm
Vibratory System
Nominal Amplitude - High 1.9 mm
Centrifugal Force - Minimum 133 kN
Variable Frequency Option Range 23.3 - 30.5 Hz (1400-1830 vpm)
Centrifugal Force - Maximum 234 kN
Nominal Amplitude - Low 0.95 mm
Vibratory Frequency - Standard 30.5 Hz (1830 vpm)
Tires
Tires 23.1 x 26
Service Refill Capacities
Fuel Tank Capacity 242 l
