Back to listing page

914K

Compact Wheel Loaders

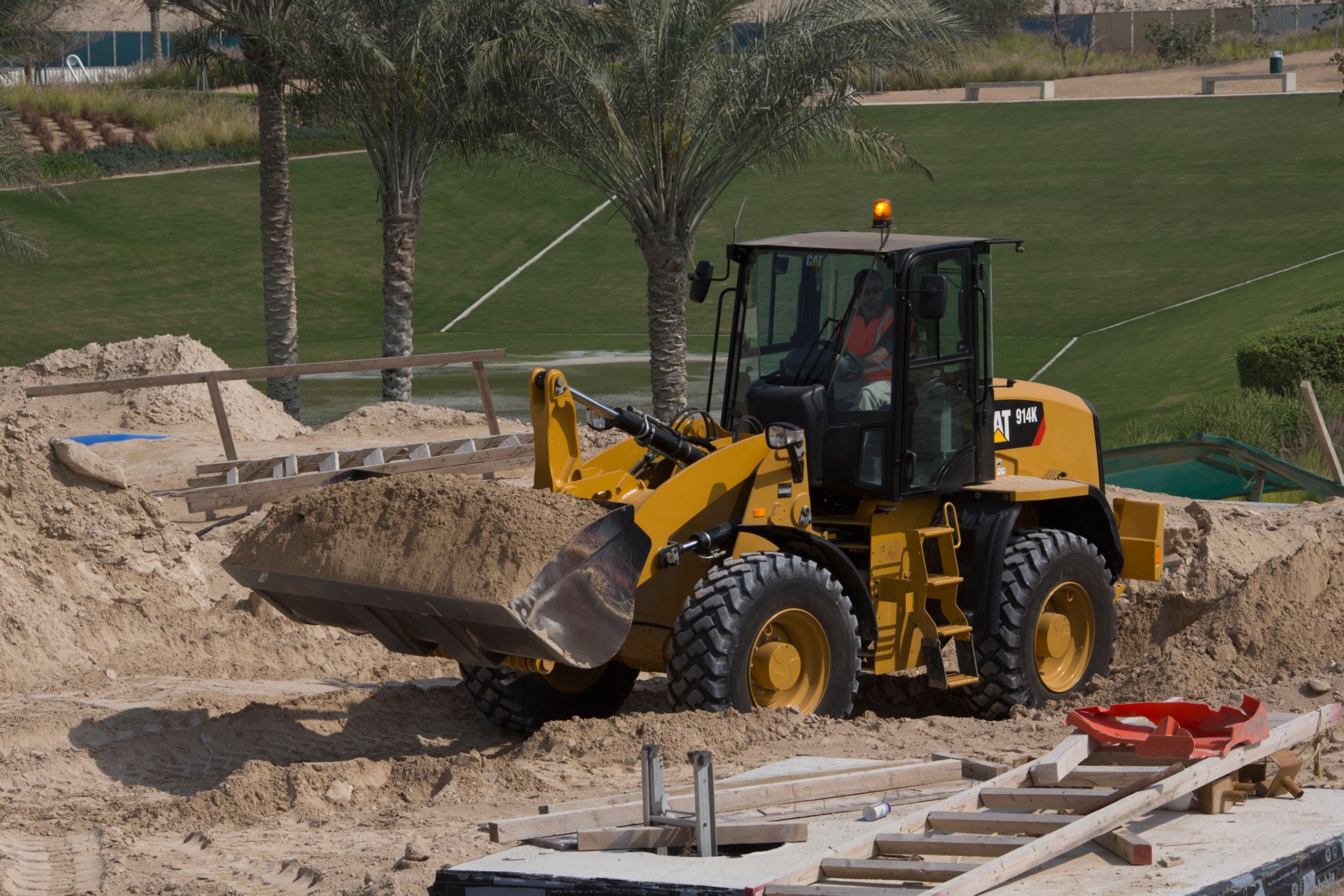

The Cat® 914K Compact Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Show
Net Power 72 kW
Rated Net Power - Rated Engine Speed 2200 r/min
Maximum Gross Power - ISO 14396 74 kW
Rated Net Power - SAE J1349 72 kW
Ketersediaan Hubungi Dealer
Minta Penawaran Rent a Machine
914K
Minta Penawaran

OVERVIEW

Configured for Success

FEATURES & BENEFITS

High Performance

With its high full turn tipping loads and breakout forces, the K Series delivers a powerful solution for all customer applications. Read more

Ease of Operation

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust ma... Read more

Parallel Lift Loader Linkage

The Cat® Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With... Read more

SPECIFICATIONS FOR 914K

Collapse All
Engine
Net Power 72 kW
Rated Net Power - Rated Engine Speed 2200 r/min
Maximum Gross Power - ISO 14396 74 kW
Rated Net Power - SAE J1349 72 kW
Maximum Gross Power - SAE J1995 76 kW
Engine Model Cat C4.4
Maximum Gross Power - ISO 14396 (DIN) 74 kW
Maximum Gross Power - Maximum Engine Speed 2350 r/min
Maximum Gross Power 74 kW
Stroke 127 mm
Rated Net Power - ISO 9249 (DIN) 72 kW
Rated Net Power - ISO 9249 72 kW
Maximum Gross Torque - SAE J1995 455 N·m
Emissions Engine meets U.S. EPA Tier 3/EU Stage IIIA emission standards.
Note Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Bore 105 mm
Maximum Gross Torque - ISO 14396 450 N·m
Displacement 4.4 l
Weights
Operating Weight 8488 kg
Service Refill Capacities
Cooling System 21.5 l
Fuel Tank 154 l
Engine Crankcase 8.8 l
Hydraulic System - Including Tank 98 l
Axles - Rear Center Differential 7.5 l
Axles - Front Center Differential 7.5 l
Transmission 3.4 l
Hydraulic Tank 55 l
Operating Specifications
Rated Bucket Capacity 1.9 m³
Buckets
Bucket Capacities 1.3-1.9 m3 (1.7-2.5 yd3)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level II
Note (4) *The measurements were conducted with the cab doors and windows closed.
Note (2) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
Note (3) The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Tires
Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2) In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Standard Size 17.5-25 12PR
Other Choices Include 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexport�
Note (1) Other tire choices are available. Contact your Cat dealer for details.
Loader Hydraulic System
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 21000 kPa
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High 120 l/min
Maximum Flow - Implement Pump - 4th Function, Maximum Flow 90 l/min
Hydraulic Cycle Time - Dump, at Maximum Reach 1.4 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level 3.7 s
Hydraulic Cycle Time - Rackback 2.2 s
Hydraulic Cycle Time - Total Cycle Time 12.5 s
Relief Pressure - Tilt Cylinder 34000 kPa
Maximum Working Pressure - Implement Pump 28000 kPa
Maximum Flow - Implement Pump 148 l/min
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure 21000 kPa
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard 90 l/min
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift 5.2 s
Transmission
Note *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Low Range, Speed Range 1* 10 km/h
Forward and Reverse - Low Range, Speed Range 2* 20 km/h
Axles
Front Fixed; Locking differential (standard)
Rear Oscillating �11 degrees; Locking differential (Standard)
Steering
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.75 turns
Steering Articulation Angle - Each Direction 40 °
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed 2.8 s
Maximum Flow - Steering Pump 82 l/min
Maximum Working Pressure - Steering Pump 22500 kPa
Engine - Tier 4 Final/Stage IV
Maximum Net Torque - SAE J1349 441 N·m
Maximum Net Torque - ISO 9249 446 N·m
