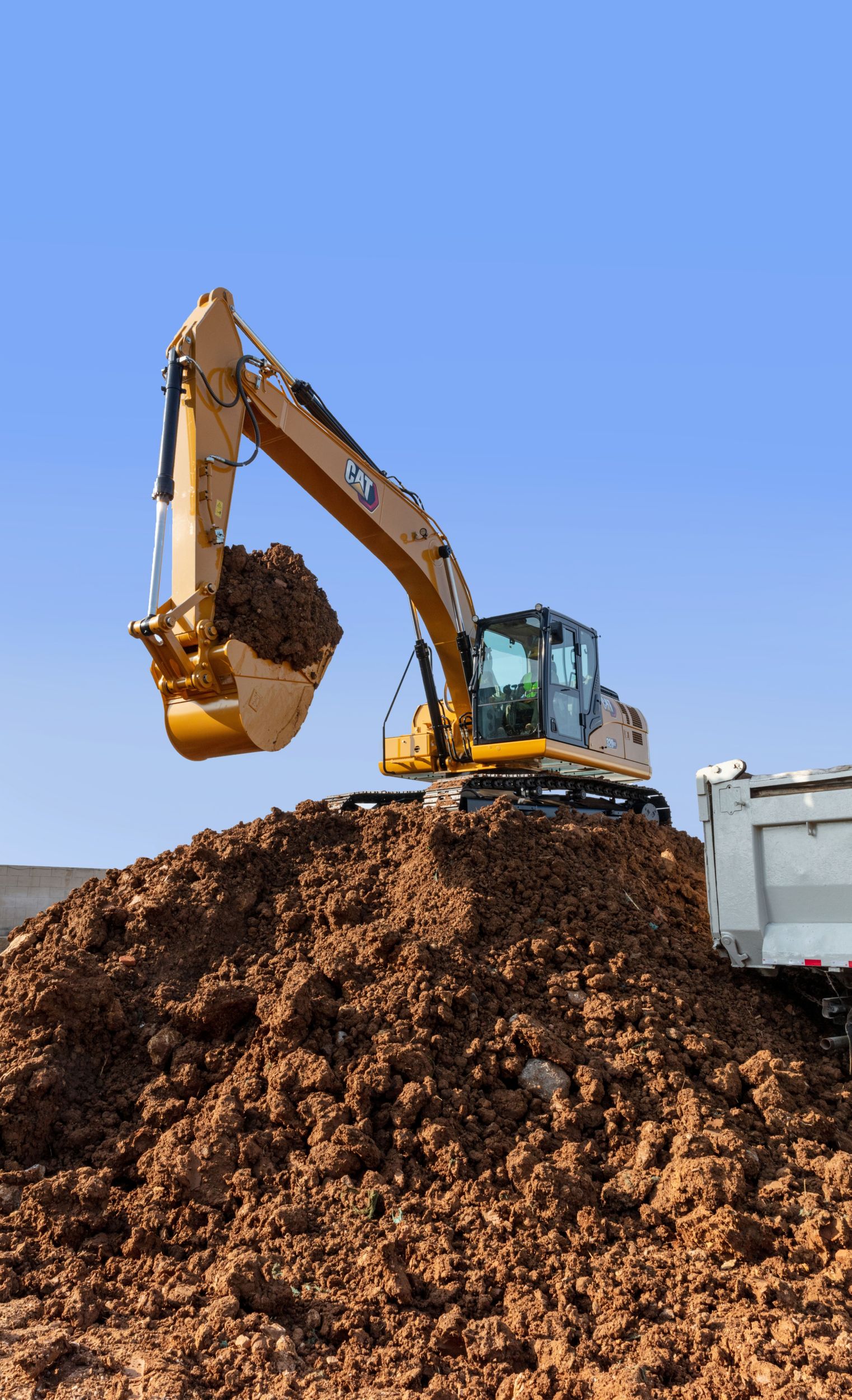

320 GX

Medium Excavators

Introducing the 320 GX – our economy model with all the reliability and ease of operation you expect from a Cat® excavator, with easy maintenance and lower cost features designed to give you a faster return on your equipment investment.

Show
Net Power - ISO 9249 103.6 kW
Engine Model Cat C4.4
Engine Power - ISO 14396 108 kW
Bore 105 mm
Availability Ready Stock Estimated delivery : 2 - 3 weeks
Request A Quote Download Brochure
find related used machines
320 GX
Request A Quote

OVERVIEW

FEATURED FOR FAST PAYBACK

FEATURES & BENEFITS

Latest Features

Make the jobsite safer with an optional swing alarm.An optional ISO certified Rollover Protective Structure (ROPS) cab helps protect the operator in the event of a rollov... Read more

Easy to Operate

The machine’s electrohydraulic system allows accurate bucket control for maximum precision.Start the engine with a push button.Navigate quickly on the high-resolution 203... Read more

Easy to Maintain

Do daily maintenance at ground level.Up to 20 percent less maintenance cost than the 320D2 GC due to enhanced filters and extended and synchronized service intervals (sav... Read more

Low Owning and Operating Costs

The excavator uses up to 15 percent less fuel than the 320D2 GC in similar applications.Match the excavator to the job with a choice of two modes: Power and Smart. Power... Read more

Reliable Performance

A versatile machine that performs well in bucket and hammer applications.Booms and sticks are robotically welded and checked ultrasonically to ensure maximum durability.R... Read more

Work in Comfort

The cab has a wide seat that adjusts to suit individual operator preferences.Standard automatic climate control helps keep you comfortable all shift long.Excellent work s... Read more

Enhanced Safety

Access daily maintenance points from ground level with the exception of the engine oil level – no need to climb on top of the excavator to check filters or grease linkage... Read more

SPECIFICATIONS FOR 320 GX

Collapse All
Engine
Net Power - ISO 9249 103.6 kW
Engine Model Cat C4.4
Engine Power - ISO 14396 108 kW
Bore 105 mm
Stroke 127 mm
Displacement 4.4 l
Net Power - ISO 9249 - Metric 141 Metric HP
Power - ISO 14396 - Metric 147 Metric HP
Note (1) Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (3) Engine speed at 2,000 rpm.
Hydraulic System
Main System - Maximum Flow - Implement 429 l/min
Maximum Pressure - Equipment 35000 kPa
Maximum Pressure - Travel 35000 kPa
Maximum Pressure - Swing 25000 kPa
Swing Mechanism
Swing Speed 11.07 r/min
Maximum Swing Torque 74 kN·m
Weights
Operating Weight 20500 kg
Service Refill Capacities
Fuel Tank Capacity 390 l
Cooling System 24.5 l
Engine Oil 15 l
Swing Drive 5.5 l
Final Drive - Each 4.5 l
Hydraulic System - Including Tank 218 l
Hydraulic Tank 115 l
Dimensions
Boom Reach 5.7 m (18'8")
Stick Reach R2.7 m (8'10")
Bucket GD 0.93 m³ (1.22 yd³)
Shipping Height - Top of Cab 2970 mm
Handrail Height 3010 mm
Shipping Length 9570 mm
Tail Swing Radius 2830 mm
Counterweight Clearance 1040 mm
Ground Clearance 460 mm
Track Length 4080 mm
Track Length to Center of Rollers 3270 mm
Track Gauge 2200 mm
Dimensions - Reach Boom - 5.7 m (18'8)
Transport Width - 790 mm (31 in) Shoes 2990 mm
Dimensions - Reach Boom - 5.7 m (18'8)
Transport Width - 600 mm (24 in) Shoes 2800 mm
Working Ranges & Forces
Maximum Digging Depth 6430 mm
Boom Reach 5.7 m (18'8")
Stick Reach R2.7 m (8'10")
Bucket GD 0.93 m³ (1.22 yd³)
Maximum Reach at Ground Level 9580 mm
Maximum Cutting Height 9290 mm
Maximum Loading Height 6450 mm
Minimum Loading Height 2460 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 6250 mm
Maximum Vertical Wall Digging Depth 5510 mm
Bucket Digging Force - ISO 136 kN
Stick Digging Force - ISO 106 kN
